LEGRAND069508L LEGRAND PL-COMP I/O THERMOSTAT

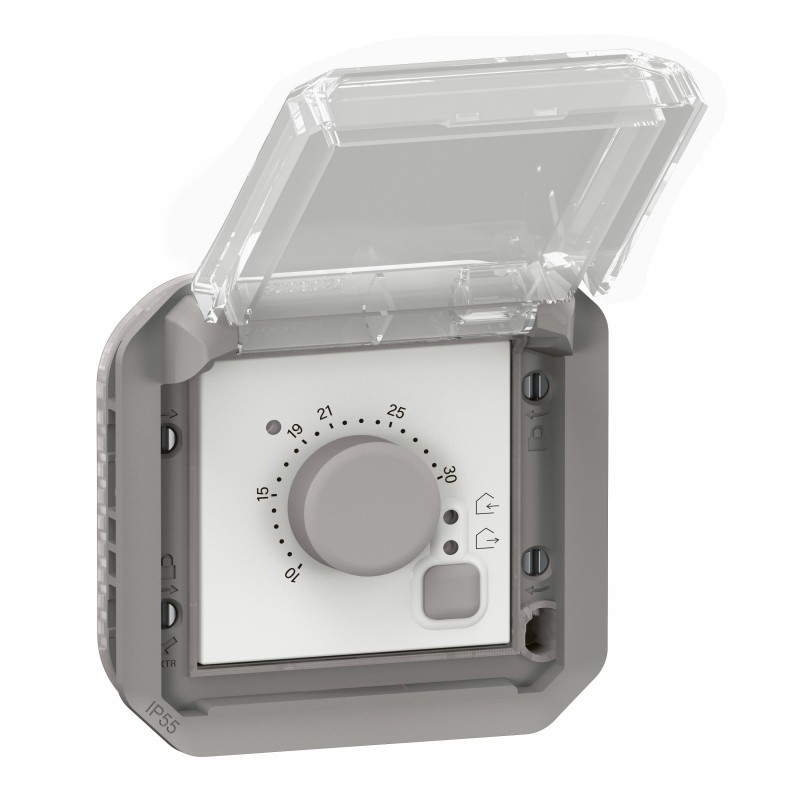

LEGRAND 069508L - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

069508L LEGRAND PL-COMP I/O THERMOSTAT

Code: 069508L

Manufacturer: LEGRAND

Description:

PL-COMP I/O THERMOSTAT
Plexo modular electronic room thermostat - gray/white

Categories:

  • Stats, switches and controllers > Room thermostat
  • LEGRAND

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 366,10 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Overview

Ensures temperature regulation in damp or specific use rooms (IP55).

Product features
  • Plexo composable electronic room thermostat - Grey/White - To be installed with a frame for recessed installation or in a surface box.
  • IP55 - IK07 - 250V
  • For temperature control in humid or special rooms (e.g. workshops, laboratories, greenhouses, etc.)
  • Adjustment range from 10ºC to 30ºC
  • Equipped with push-button for summer/winter function
description
PLEXO modular room thermostat. Electronic room thermostat - 250V - IP 55 - IK 07 - Ensures temperature regulation in humid or specific use places (e.g. workshops, laboratories, greenhouses, etc.) - Adjustment range of 10 to 30 °C - Requires a supply voltage - Equipped with a button for summer/winter function - Grey/White. Plexo - IP 55 watertight mechanisms - composable - emergency cut-off, beacon, blinds, thermostat.

specifications

ModelOther
Supply Current Type230 V AC
ConnectionThree/four threads
With receiverNo
Measuring range7-30 °C
External sensorNo
Thermal feedbacknone
Dimming FeatureOther
HeatingYes
Number of outlets for heating1
Suitable for refrigerationNo
Number of outlets for cooling0
Differential value1-1 K
Adjustable differenceNo
Readable temperatureNo
With sound level indicationNo
Sensor Sensor TypeOther
Type of mountingOther
With screenNo
OperationTurn
With sanitary water circuitNo
Contact StyleNormally Open Contact (NA)
Max. contact voltage250 V
Max. contact capacity8 A
Protection Class (IP)IP55
Explosion protectionNo
ColourGrey
Height70.5 mm
Width70.5 mm
Depth54 mm
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Compatible IFTTTNo
Operating Temperature0-35 °C
Storage temperature-5-35 °C
Type of voltageAC
frequency50-60 Hz

ETIM for 069508L Stats, switches and controllers (EC010927)

Feature nameExplosion-proof (EF004663)
Feature valueNo
Feature nameHeight (EF000040)
Feature value70.5 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP55
Feature nameOperation (EF002147)
Feature valueTurn
Feature nameMounting method (EF000003)
Feature valueOther
Feature nameConnection (EF000443)
Feature valueThree-four-wire
Feature nameDifferential value (EF022691)
Feature value1 K
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameTemperature readable (EF021360)
Feature valueNo
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameControl characteristic (EF020644)
Feature valueOther
Feature nameExternal sensor (EF023999)
Feature valueNo
Feature nameWith receiver (EF020643)
Feature valueNo
Feature nameWith display (EF000458)
Feature valueNo
Feature nameType of power supply (EF001469)
Feature value230 V AC
Feature nameModel (EF000010)
Feature valueOther
Feature nameContact type (EF001587)
Feature valueNormally open contact (NO)
Feature nameNumber of heater outputs (EF020681)
Feature value1
Feature nameMax. contact load (EF022541)
Feature value8 A
Feature nameWith tap water circuit (EF020680)
Feature valueNo
Feature nameWith sound indicator (EF020683)
Feature valueNo
Feature nameNumber of cooler outputs (EF020682)
Feature value0
Feature nameMax. contact voltage (EF020286)
Feature value250 V
Feature nameSensor/feeler type (EF006254)
Feature valueOther
Feature nameAdjustable differential (EF024001)
Feature valueNo
Feature nameThermal feedback (EF024000)
Feature valueNone
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameSuitable for cooling (EF024798)
Feature valueNo
Feature nameDepth (EF000049)
Feature value54 mm
Feature nameColour (EF000007)
Feature valueGrey
Feature nameWidth (EF000008)
Feature value70.5 mm
Feature nameMeasuring range (EF001836)
Feature value7 °C
