LEGRANDNEXT VALENA WITH NETATMO067697 LEGRAND wN-MICROMODULO PERS.

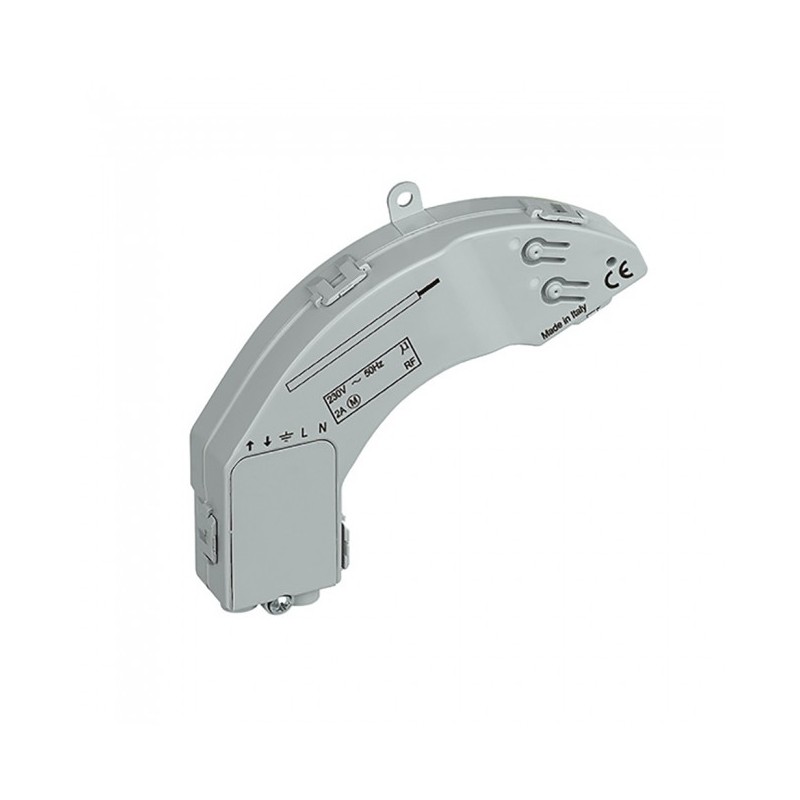

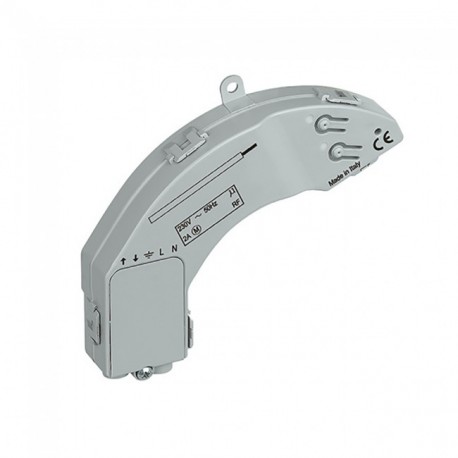

LEGRAND 067697 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

067697 LEGRAND wN-MICROMODULO PERS.

Code: 067697

Manufacturer: LEGRAND

Description:

wN-MICROMODULO PERS.
wN-SAM BLINDS
Arteor with Netatmo Connected Wired Curtain/Blind Micromodule IP44
Connected micro-shutter module

Categories:

  • Installation bus systems > Shutting actuator for bus system
  • LEGRAND > NEXT VALENA WITH NETATMO

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Bus system KNXNo
Bus system KNX-RF (Radio Frequency)No
Bus system radio frequencyYes
Bus system LONNo
Bus system PowernetNo
Other bus systemsZigbee
Radio frequency bidirectionalYes
Mounting methodBuilt-in
With bus connectionNo
Bus module detachableNo
Local operation/hand operationYes
With LED indicationYes
Number of inputs4
Switching current (resistive)2 A
Max. switching power500 W
Max. number of venetian-blind outputs1
With switch functionYes
Type of currentAC
Degree of protection (IP)IP44
Width77 mm
Height131 mm
Depth21.5 mm
Built-in depth21.5 mm
degree of impact strength (IK)IK04
Operating / setting temperature-5-50 °C
Storage temperature-10-70 °C
Nominal voltage100-240 V
Frequency50-60 Hz
Standby consumption2.3 mA
Mandatory neutralYes
Terminal marking indicationYes
Stress test conformity (1000V)No
ColourGrey
RAL-number7035
Halogen freeYes
Antimicrobial treatmentNo
Connection typeScrewed terminal
Number of terminals4
Terminals capacity1.5-2.5 mm²
Contains Batteries and/or AccumulatorNo
Connected objectYes
Operating methodZigbee
Application store for downloadApp Store , Google Play Store
With voice commandYes
ProgrammableYes
Interoperable connection ProtocolYes
Connectable by Internet boxYes
Compatible voice assistantsGoogle Assistant , Amazon Alexa , Apple Siri
Product use functionShutter management
Application nameHome + Control
Programming waySmartphone apps

ETIM for 067697 Installation bus systems (EC001330)

Feature nameBus system KNX-RF (Radio Frequency) (EF008855)
Feature valueNo
Feature nameWith LED indication (EF005950)
Feature valueYes
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP44
Feature nameBus system LON (EF003831)
Feature valueNo
Feature nameType of current (EF000143)
Feature valueAC
Feature nameMounting method (EF000003)
Feature valueEV009726
Feature nameBus system KNX (EF001499)
Feature valueNo
Feature nameWith switch function (EF004698)
Feature valueYes
Feature nameSwitching current (resistive) (EF001741)
Feature value2 A
Feature nameBus module detachable (EF009766)
Feature valueNo
Feature nameMax. number of venetian-blind outputs (EF001740)
Feature value1
Feature nameRadio frequency bidirectional (EF009466)
Feature valueYes
Feature nameBus system Powernet (EF001501)
Feature valueNo
Feature nameBus system radio frequency (EF001500)
Feature valueYes
Feature nameMax. switching power (EF001503)
Feature value500 W
Feature nameOther bus systems (EF003811)
Feature valueZigbee
Feature nameWith bus connection (EF001504)
Feature valueNo
Feature nameLocal operation/hand operation (EF003914)
Feature valueYes
Feature nameNumber of inputs (EF000318)
Feature value4

DATASHEET - PDF

Title
Size
Type
067697 EN_067697.pdf
162 Kbytes
