LEGRANDNEXT VALENA WITH NETATMO067696 LEGRAND wN-MICRO GARAGE DOOR MODULE

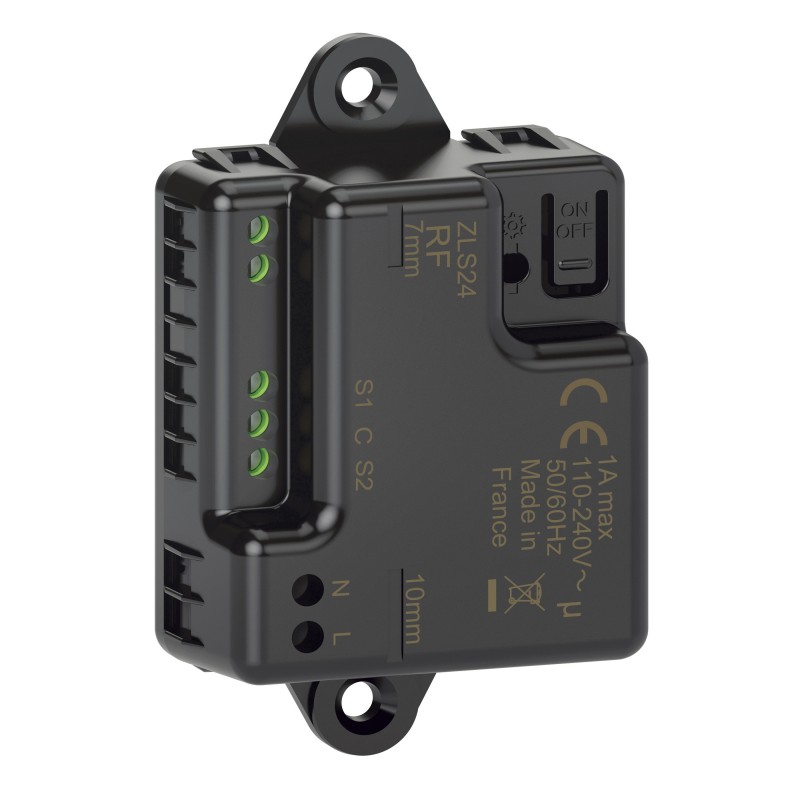

LEGRAND 067696 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

067696 LEGRAND wN-MICRO GARAGE DOOR MODULE

Code: 067696

Manufacturer: LEGRAND

Description:

wN-MICRO GARAGE DOOR MODULE
Connected micromodule for garage doors with Netatmo
Micromod connected for garage doors w/Netatmo

Categories:

  • Installation bus systems > Shutting actuator for bus system
  • LEGRAND > NEXT VALENA WITH NETATMO

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 121,45 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Overview

Connected micromodule for garage doors with Netatmo

Product features
  • Dry contact for connected garage door
  • Supplied with 2 wired location sensors
  • Can be installed in Plexo IP55 box 80x80mm or higher
  • Compatible with any type of opening motor equipped with dry contact auxiliary input.
  • Power supply 110/230V.
description
The connected micromodule for garage doors allows you to control the opening and closing of motorized garage doors, from the Home + Control app and by voice control. Requires the prior installation of a starter pack.

Highlights

Advantages in installation
  • Integrated installation
Advantages in use
  • To control garage doors in a home
Specific features
  • Thanks to its two sensors, garage door management is perfectly safe.
  • Open/stop/lower
  • Door status information in the app (open, closed, locked).

specifications

KNX bus systemNo
KNX-RF (Radio Frequency) Bus SystemNo
Radio frequency bus systemYes
LON Bus SystemNo
Powernet Bus SystemNo
Other bus systemsZigbee
Bidirectional Radio FrequencyYes
Type of mountingBuilt-in
With bus connectionNo
Detachable bus moduleNo
Local Operation/Manual OperationYes
With LED indicatorYes
Number of Entries5
Switching Current (Resistive)1 A
Max. switching power200 W
Max. number of Venetian blind outlets1
With switch functionYes
Type of currentAC
Protection Class (IP)IP20
Width94 mm
Height56 mm
Depth29 mm
Installation Depth29 mm
Impact resistanceIK04
Operating Temperature5-45°C
Storage temperature0-45 °C
Nominal Voltage100-240 V
frequency50-60 Hz
Standby consumption2.1 mA
Neutral MandatoryYes
Display of markings on the connection terminalsYes
Compliant with commissioning tests (1000 V)No
ColourBlack
Halogen-freeYes
Antibacterial treatmentNo
Connection MethodScrew-on terminal
Number of terminals5
Terminal capacity1.5-2.5 mm²
Contains battery and/or accumulatorNo
Connected ObjectYes
Method of operationZigbee
App download platformApp Store, Google Play Store
Programming mediumSmartphone apps
ProgrammableYes
Connection Protocol InteroperabilityYes
With voice commandYes
Supported voice assistantsGoogle Assistant
App NameHome + Control
Product usage functionShutter management
Possibility of connection via Internet boxYes

ETIM for 067696 Installation bus systems (EC001330)

Feature nameBus system KNX-RF (Radio Frequency) (EF008855)
Feature valueNo
Feature nameWith LED indication (EF005950)
Feature valueYes
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameBus system LON (EF003831)
Feature valueNo
Feature nameType of current (EF000143)
Feature valueAC
Feature nameMounting method (EF000003)
Feature valueEV009726
Feature nameBus system KNX (EF001499)
Feature valueNo
Feature nameWith switch function (EF004698)
Feature valueYes
Feature nameSwitching current (resistive) (EF001741)
Feature value1 A
Feature nameBus module detachable (EF009766)
Feature valueNo
Feature nameMax. number of venetian-blind outputs (EF001740)
Feature value1
Feature nameRadio frequency bidirectional (EF009466)
Feature valueYes
Feature nameBus system Powernet (EF001501)
Feature valueNo
Feature nameBus system radio frequency (EF001500)
Feature valueYes
Feature nameMax. switching power (EF001503)
Feature value200 W
Feature nameOther bus systems (EF003811)
Feature valueZigbee
Feature nameWith bus connection (EF001504)
Feature valueNo
Feature nameLocal operation/hand operation (EF003914)
Feature valueYes
Feature nameNumber of inputs (EF000318)
Feature value5

DATASHEET - PDF

Title
Size
Type
067696 EN_067696.pdf
187 Kbytes
