LEGRANDNEXT VALENA WITH NETATMO064899 LEGRAND WN-ILUM MICROMODULE REGULATOR

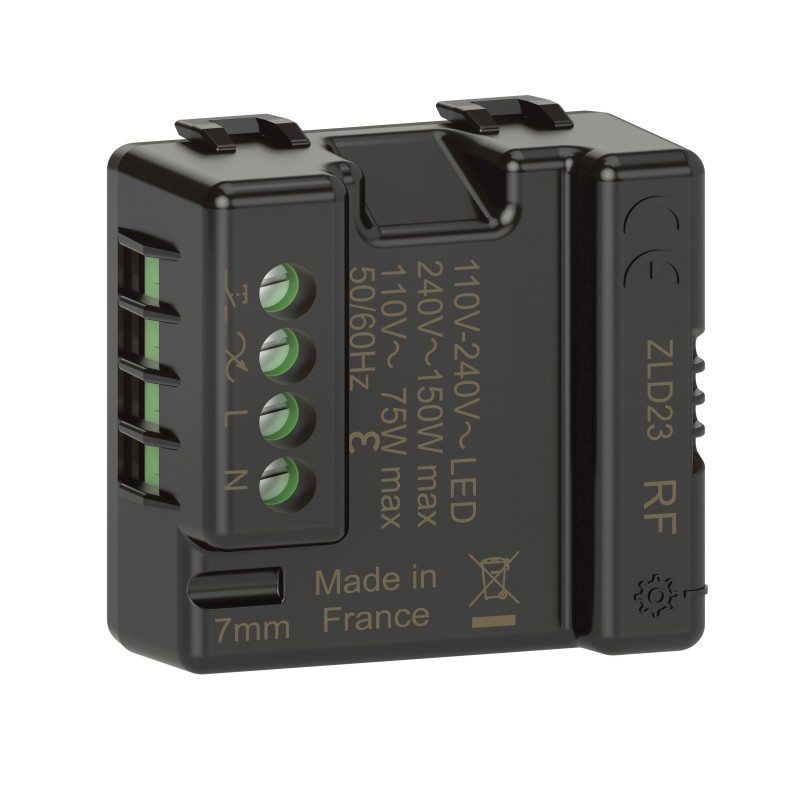

LEGRAND 064899 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

064899 LEGRAND WN-ILUM MICROMODULE REGULATOR

Code: 064899

Manufacturer: LEGRAND

Description:

WN-ILUM MICROMODULE REGULATOR
Connected micro lighting module with dimming possibility with Netatmo
Connected micromod lighting with dimming w/Netatmo

Categories:

  • Domestic switching devices > Electronic switch
  • LEGRAND > NEXT VALENA WITH NETATMO

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 59,72 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Overview

Connected micro lighting module with dimming possibility with Netatmo

Product features
  • Micro lighting module connected ON/OFF with 150W LED dimming option
  • Compatible with all types of lamps up to 150W
  • It can be controlled by one or more single or dual wireless commands, detector to create a wireless lighting switch
  • Screw terminal
  • 2.4 GHz radio technology, using the Zigbee 3.0 protocol, reliable and secure
Recommendations / Restrictions
  • To connect the micromodule, you must first purchase and install a starter pack or rail gateway
  • Product available from a connected dealer
  • To connect the connected lighting micromodule (with the option of dimming), it is necessary to previously purchase and install a connected starter "... with Netatmo". To control it as a switch, it is necessary to associate one or more wireless commands "... with Netatmo" and/or wired it with a mechanical pushbutton.
description
The connected micro lighting module allows you to convert a traditional light point or dimmer into a connected one without passing cables - it can be controlled from one or more wireless commands - it requires the installation of the Starter Pack.

Highlights

Advantages in installation
  • Easily installed on a ceiling, wall lamp or electrical panel
Advantages in use
  • Allows switch, switch, and teleswitch functions to be performed without the need for cables
Specific features
  • Associated with a connected starter pack, the micromodule can be controlled by wireless commands
  • Associated with a connected starter pack, the micromodule can be controlled by wireless commands
  • Can be fitted into any wall enclosure for discreet integration

specifications

Type of mountingBasic Element, Other
ModelTronic
Load TypeUniversal and LED retrofit
Input ExtensionsYes
Luminous value memoryYes
Can be used with a buttonYes
Usable with motion detectorYes
Usable with presence detectorNo
Usable with timerYes
Usable with radio buttonYes
Usable with IR buttonNo
MaterialPlastic
Material qualityThermoplastic
Surface treatmentNo treatment
Surface FinishMate
ColourBlack
TransparentYes
Nominal Voltage230 V
frequency50-60 Hz
Nominal current0.7 A
Switching power0-150 W
Number of channels1
Attachment TypeOther
Min. depth of the recessed box0 mm
Compatible with Apple HomeKitYes
Compatible with Google AssistantYes
Compatible with Amazon AlexaYes
Compatible IFTTTNo
Width43.5 mm
Height42.5 mm
Depth22 mm
Installation Depth22 mm
Impact resistanceIK04
Protection Class (IP)IP20
Operating Temperature5-45°C
Storage temperature0-45 °C
Standby consumption3.7 mA
Neutral MandatoryYes
Display of markings on the connection terminalsYes
Compliant with commissioning tests (1000 V)No
Halogen-freeYes
Antibacterial treatmentNo
Connection MethodScrew-on terminal
Number of terminals4
Terminal capacity1.5-2.5 mm²
Core cross-section0.75-2.5 mm²
Label Space/Print AreaNo
Contains battery and/or accumulatorNo
Connected ObjectYes
Method of operationZigbee
App download platformApp Store, Google Play Store
Programming mediumSmartphone apps
ProgrammableYes
Connection Protocol InteroperabilityYes
With voice commandYes
Supported voice assistantsGoogle Assistant, Amazon Alexa, Apple Siri
App NameHome + Control
Product usage functionLighting management
Possibility of connection via Internet boxYes

ETIM for 064899 Domestic wiring accessories and controls (EC001588)

Feature nameSwitch capacity (EF005233)
Feature value0 W
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameType of fastening (EF002442)
Feature valueOther
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueOther
Feature nameNominal voltage (EF000002)
Feature value230 V
Feature nameTransparent (EF006243)
Feature valueYes
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueYes
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueYes
Feature nameCompatible with Google Assistant (EF014926)
Feature valueYes
Feature nameApplicable with infrared button (EF003908)
Feature valueNo
Feature nameApplicable with presence indicator (EF003909)
Feature valueNo
Feature nameType of load (EF001508)
Feature valueUniversal and LED Retrofit
Feature nameApplicable with movement sensor (EF003906)
Feature valueYes
Feature nameApplicable with transmission button (EF003907)
Feature valueYes
Feature nameMin. depth of built-in installation box (EF012278)
Feature value0 mm
Feature nameLight value memory (EF003867)
Feature valueYes
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameNumber of channels (EF000259)
Feature value1
Feature nameFrequency (EF000416)
Feature value50 Hz
Feature nameModel (EF000010)
Feature valueTronic
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameApplicable with time switch/timer (EF003911)
Feature valueYes
Feature nameAssembly arrangement (EF000005)
Feature valueBasic unit
Feature nameRated current (EF000227)
Feature value0.7 A
Feature nameColour (EF000007)
Feature valueBlack
Feature nameSubstation input (EF003876)
Feature valueYes
Feature nameApplicable with button (EF003910)
Feature valueYes

DATASHEET - PDF

Title
Size
Type
064899 EN_064899.pdf
189 Kbytes
