LEGRANDNEXT VALENA WITH NETATMO064875 LEGRAND wN-IR SENSOR WL IP44 BLAN

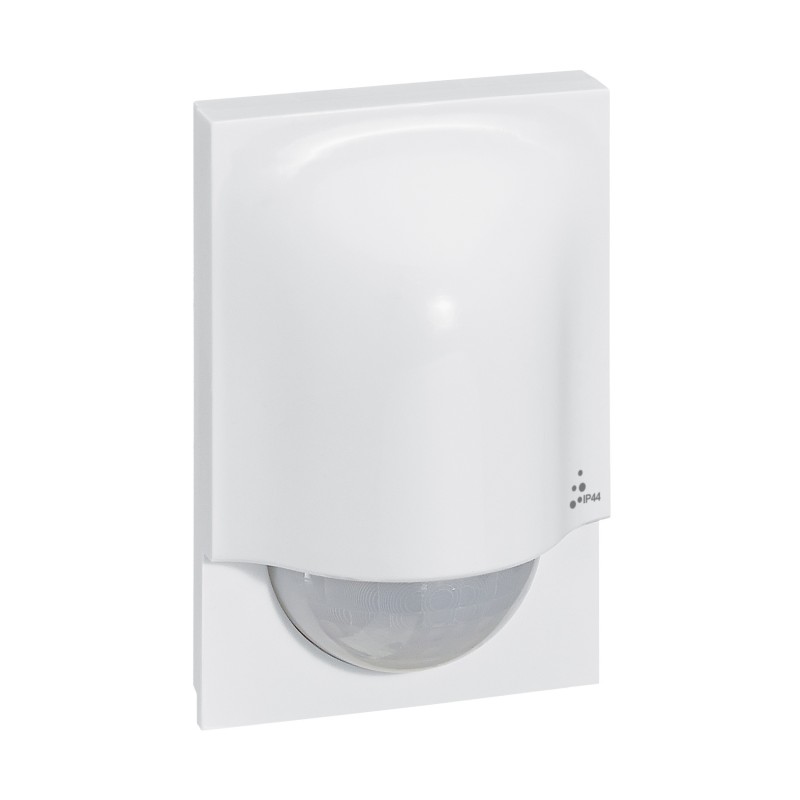

LEGRAND 064875 064875 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

064875 LEGRAND wN-IR SENSOR WL IP44 BLAN

Reference: 064875

Manufacturer: LEGRAND

Description:

wN-IR SENSOR WL IP44 BLAN
wN-IR SENSOR WL IP44 WHITE
The motion detector wireless infrared technology IP44 allows you to control up to 20 switches wired, micromódulos, bases of power and outputs cables - Requires the pre-installation of Starter Pack - White
Wireless motion detector by infrared technology IP44

Categories:

  • Installation bus systems > Movement sensor for bus system
  • LEGRAND > NEXT VALENA WITH NETATMO

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Product features

The motion detector wireless IP44 allows you to control up to 20 switches wired, micromódulos, bases of power and outputs cables - Supplied with 2 batteries 1.5 V type AA for its food - Detection using infrared 140° - recommended Height of mounting: 2.5 m - For indoor and outdoor use (IP44) - optimum Distance between 2 detectors: 6 m - sensor Range adjustable from 2 to 8 m - on delay adjustable from 1 to 30 min - Test is possible with timing of 5 s - brightness Threshold adjustable from 1 to 1000 lux - Requires installation of Starter Pack - White

General characteristics

Valena Next with Netatmo - wireless Detectors - Are supplied complete with front finishing - surface Mounting using screws (not supplied) - Supplied with two batteries CR2032 of 3 V for power supply

ETIM for 064875 Installation bus systems (EC001582)

Feature nameHeight (EF000040)
Feature value114.5 mm
Feature nameStaircase light controller (EF001098)
Feature valueYes
Feature nameBus system LON (EF003831)
Feature valueNo
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueSurface mounted
Feature nameBus system KNX (EF001499)
Feature valueNo
Feature nameMin. switch-on time (EF006589)
Feature value15 s
Feature nameDetection angle horizontal (EF006582)
Feature value140 °
Feature nameMin. depth of built-in installation box (EF012278)
Feature value0 mm
Feature nameBus system KNX-RF (Radio Frequency) (EF008855)
Feature valueNo
Feature nameRAL-number (similar) (EF003882)
Feature value9003
Feature nameOperation mode switch (EF004530)
Feature valueNo
Feature nameModel (EF000010)
Feature valueMovement sensor
Feature nameAnimal zone (EF006311)
Feature valueNo
Feature nameOptimum mounting height (EF008011)
Feature value2.5 m
Feature nameMax. duty cycle (EF006590)
Feature value15 min
Feature nameRadio frequency bidirectional (EF009466)
Feature valueYes
Feature nameDepth (EF000049)
Feature value48.5 mm
Feature nameSubstation input (EF003876)
Feature valueNo
Feature nameColour (EF000007)
Feature valueWhite
Feature nameWidth (EF000008)
Feature value77 mm
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameResponse value luminosity adjustable (EF007575)
Feature valueYes
Feature nameSurface finishing (EF006569)
Feature valueGlossy
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameBus system Powernet (EF001501)
Feature valueNo
Feature nameBus system radio frequency (EF001500)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameDiameter reach on floor (EF003843)
Feature value6 m
Feature nameWith bus connection (EF001504)
Feature valueNo
Feature nameSwitch-off delay self-learning (EF007667)
Feature valueNo
Feature nameMax. reach sideways (EF001323)
Feature value6 m
Feature nameMax. reach frontally (EF001322)
Feature value8 m
Feature nameCreep-under protection (EF000147)
Feature valueNo
Feature nameSwitching power (EF001313)
Feature value0 W
Feature nameTeach-function for response value luminosity (EF003898)
Feature valueNo
Feature nameOther bus systems (EF003811)
Feature valueNone
