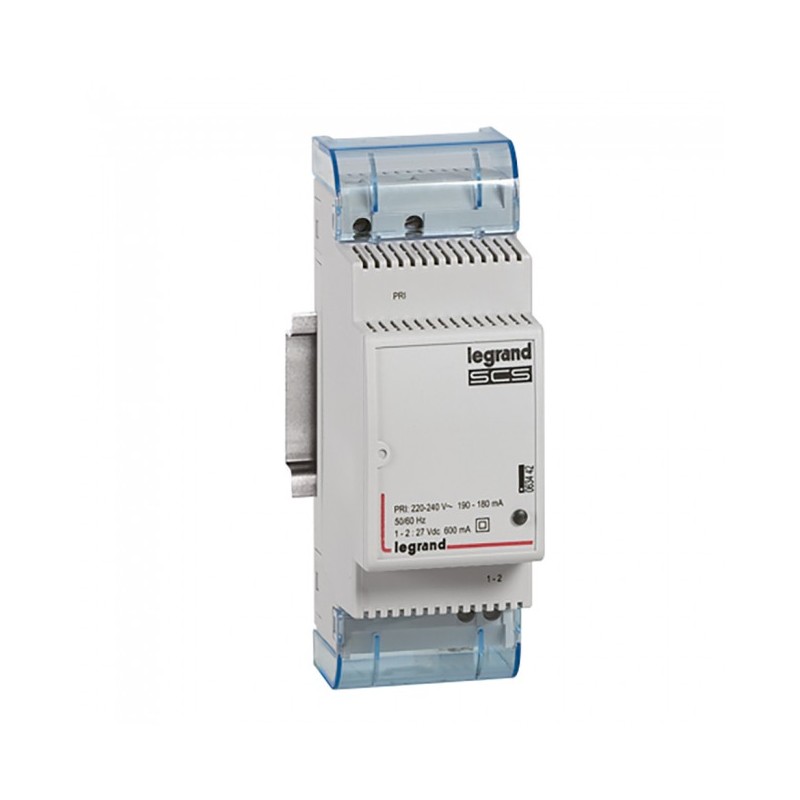

LEGRAND 063442 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

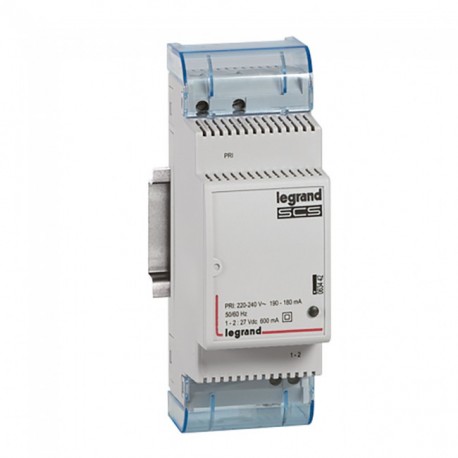

063442 LEGRAND ADDITIONAL POWER 27VDC

Code: 063442

Manufacturer: LEGRAND

Description:

ADDITIONAL POWER 27VDC
FEEDING ADDITIONAL 27VCC
Scenario scheduler power supply - home system management BUS/SCS - 2 DIN modules
Additional 27VDC power supply

Categories:

  • Low-voltage industrial components > DC-power supply
  • LEGRAND > PRESCRIPTION OF EMERGENCIES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 86,61 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)0.369
  • Weight (g)136.00
Product characteristics
Additional power supply
  • Power supply 220-240 V - 50/60 Hz
  • Output 1-2 27 VDC - 600 mA
  • Dim.: 2 x 17.5 mm modules
  • New Cat.No 3 460 20
General characteristics
LVS2 (Legrand Vision System) - addressable and monitoring system

ETIM for 063442 Low-voltage industrial controls and switchgear (EC002540)

Feature namePower output (EF003034)
Feature value16.2 W
Feature nameHeight (EF000040)
Feature value89.7 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP30
Feature nameWall mounting possible (EF003973)
Feature valueNo
Feature nameSuitable for safety functions (EF001597)
Feature valueNo
Feature nameSuitable for rail mounting (EF003972)
Feature valueYes
Feature nameOutput voltage stabilized (EF003092)
Feature valueYes
Feature nameRated supply voltage AC 50 Hz (EF007076)
Feature value220 V
Feature nameRated supply voltage AC 60 Hz (EF007077)
Feature value220 V
Feature nameShort-circuit-proof (EF007332)
Feature valueYes
Feature nameMax. output current 1 (EF008284)
Feature value0.6 A
Feature nameModular version (EF001126)
Feature valueYes
Feature nameVoltage type (supply voltage) (EF002991)
Feature valueDC
Feature nameWidth in number of modular spacings (EF002950)
Feature value2
Feature nameDirect mounting possible (EF005689)
Feature valueNo
Feature nameStabilized (EF005302)
Feature valueYes
Feature nameType of electric connection (EF003961)
Feature valueScrew connection
Feature name1st secondary output voltage (EF006792)
Feature value26.9 V
Feature nameSecondary voltage adjustable (EF007002)
Feature valueNo
Feature nameDepth (EF000049)
Feature value66.2 mm
Feature namePower consumption (EF000346)
Feature value41.8 VA
Feature nameWidth (EF000008)
Feature value33.9 mm
