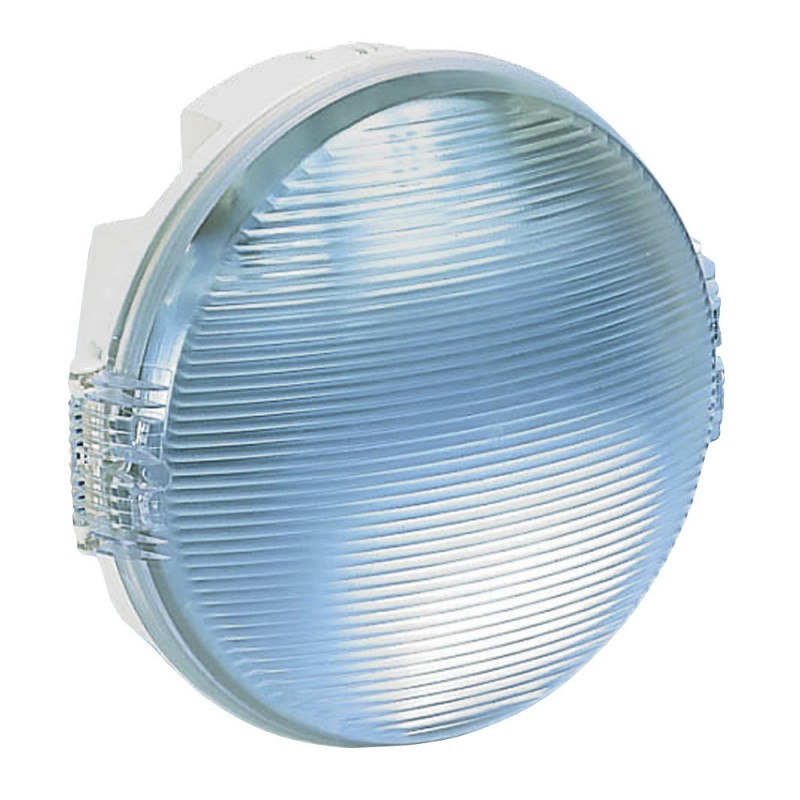

062425 LEGRAND HUBLOT KORO 100W WHITE
062425
LEGRAND
5
HUBLOT KORO 100W WHITE
Bulkhead light Koro - IP54 - IK08 - round - 100 Wincandescent - E27 - white
Pressure switch, 3p, 7bar, relief valve
Luminaires > Ceiling-/wall luminaire
HUBLOTS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)5
- Volume (dm3)42.00
- Weight (g)3 616.00
Product characteristics
IP 54 - IK 08 Plexo rectangular bulkhead lights – class II- Polycarbonate diffuser, mounted on hinge
- Opening can be reversed Top/Base
- Supplied with one Plexo end cap, not assembled
- Through wiring or terminal connection (side or rear)
- Lampholder mounted on reflector (swivel pull-out type)
- Grey base self-extinguishing: 850 °C
- For E27 - 55 W halogen, 17 W compact fluorescent or 8 W LED lamps
- Polycarbonate diffuser, mounted on hinge
- Opening can be reversed right/left
- Supplied with 1 Plexo end cap, not assembled
- Through wiring or terminal connection (side or back)
- Through wiring or terminal connection (side or back)
- Self-extinguishing at 850 °C
- White
- E 27
- For E27 – 70 W halogen, 20 W compact fluorescent or 12 W LED lamps
General characteristics
IP 44/54/55 weatherproof bulkhead lights - For domestic, commercial areas and tough environments| Feature Name | Feature Value |
|---|---|
| Suitable for ceiling mounting (EF021180) | Yes |
| Lamp type (EF002423) | Incandescent lamp |
| With control gear (EF007556) | No |
| Suitable for surface mounting (EF007793) | Yes |
| Compatible with Apple HomeKit (EF014925) | No |
| Material cover (EF004284) | Plastic opal |
| Compatible with Amazon Alexa (EF014927) | No |
| Light distribution (EF004283) | Asymmetric |
| Compatible with Google Assistant (EF014926) | No |
| Light outlet (EF004282) | Direct |
| With light sensor (EF001203) | No |
| Max. system power (EF009347) | 70 W |
| Colour temperature (EF009346) | 2700 K |
| Nominal current (EF009345) | 304 mA |
| Impact strength (EF004293) | IK08 |
| Dimming DSI (EF012188) | No |
| Protection class according to IEC 61140 (EF000004) | II |
| Height/depth (EF001456) | 118 mm |
| Width (EF000008) | 261 mm |
| Built-in length (EF004265) | 264 mm |
| Degree of protection (IP) (EF005474) | IP54 |
| Voltage type (EF000187) | AC |
| Light distributor (EF012170) | Diffuser |
| With light source (EF005905) | Yes |
| With movement sensor (EF000197) | No |
| Suitable for emergency lighting (EF004275) | No |
| Nominal voltage (EF005127) | 110 V |
| Dimming manufacturer's proprietary system (EF012159) | No |
| Suitable for light line configuration (EF004274) | No |
| IFTTT support available (EF011072) | No |
| Dimming phase cut-on (leading edge) (EF012162) | No |
| Dimming programmable (EF012163) | No |
| Dimming RF (EF012164) | No |
| Dimming Sine Wave Reduction (EF012165) | No |
| Dimming Touch and Dim (EF012166) | No |
| Dimming Zigbee (EF012167) | No |
| Dimming with push-button (EF012168) | No |
| Length (EF001438) | 264 mm |
| Dimming mains voltage modulation (EF012160) | No |
| Dimming phase cut-off (trailing edge) (EF012161) | No |
| Covering of the luminaire with thermally insulating material possible (EF006423) | No |
| Type of grid (EF000282) | None |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 (EF006420) | No |
| Colour rendering index CRI (EF000442) | 90-100 |
| With air slots (EF009372) | No |
| Suitable for lamp power (EF000280) | 70 W |
| Dimming 0-10 V (EF012152) | No |
| Dimming 1-10 V (EF012153) | No |
| Dimming DALI (EF012154) | No |
| Dimming DMX (EF012155) | No |
| Dimming potentiometer (integrated) (EF012156) | No |
| Dimming LineSwitch (EF012158) | No |
| Suitable for suspended mounting (EF001265) | No |
| Suitable for number of light sources (EF006436) | 1 |
| Lamp holder (EF000048) | E27 |
| Type of control gear (EF000381) | Not required |
| Housing material (EF001596) | Plastic |
| Suitable for workplace according to EN 12464-1 (EF007694) | No |
| Suitable for built-in mounting (EF006760) | No |
| Colour of light (EF009350) | White |
| Outer diameter (EF000015) | 261 mm |
| Housing colour (EF000136) | White |
| Rated ambient temperature according to IEC 62722-2-1 (EF012090) | -10 °C |
| Beam angle (EF008157) | Extreme wide beam >80° |
| Suitable for wall mounting (EF000664) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 062425 EN_062425.pdf | 139 Kbytes |
 |
