060483 LEGRAND HUBLOT 100W WHITE, IP55
060483
LEGRAND
HUBLOT 100W WHITE, IP55

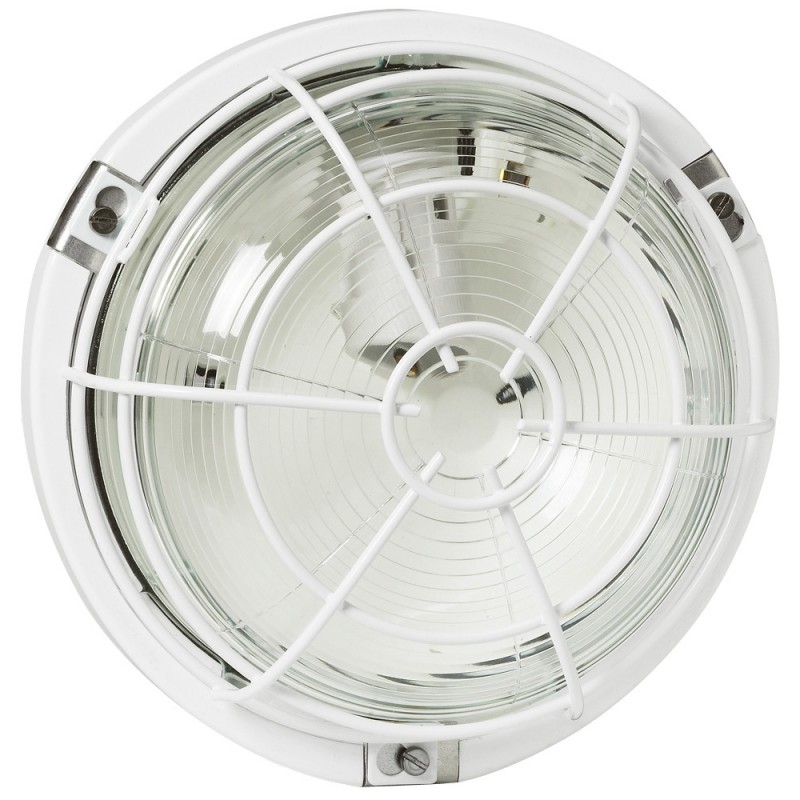

Bulkhead light - IP55 - IK04 - round - 100 W- E27 - though environments
Hublot metallic - 20W - IP55- IK04 - round - E27
Luminaires > Ceiling-/wall luminaire
HUBLOTS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)4.488
- Weight (g)1 945.00
IP 55 - IK 04 bulkhead lights
- Metal/glass bulkhead lights.
- For exterior/indoor use
- For industrial use. Earth terminal - 3 entries in T. Operating temperature:
- min.: - 30 °C
- max.: + 35 °C
- Can be equipped with metal protection grid for IK 07 protection
- E 27
- Round - for 70 W halogen, 20 W compact fluorescent or 12 W LED lamps
- With colourless diffuser
| Feature Name | Feature Value |
|---|---|
| Suitable for ceiling mounting (EF021180) | Yes |
| Lamp type (EF002423) | Incandescent lamp |
| With control gear (EF007556) | No |
| Suitable for surface mounting (EF007793) | Yes |
| Compatible with Apple HomeKit (EF014925) | No |
| Material cover (EF004284) | Glass structured |
| Compatible with Amazon Alexa (EF014927) | No |
| Light distribution (EF004283) | Asymmetric |
| Compatible with Google Assistant (EF014926) | No |
| Light outlet (EF004282) | Direct |
| With light sensor (EF001203) | No |
| Max. system power (EF009347) | 100 W |
| Colour temperature (EF009346) | 2700 K |
| Nominal current (EF009345) | 435 mA |
| Impact strength (EF004293) | IK04 |
| Dimming DSI (EF012188) | No |
| Protection class according to IEC 61140 (EF000004) | I |
| Height/depth (EF001456) | 127 mm |
| Width (EF000008) | 228 mm |
| Built-in length (EF004265) | 228 mm |
| Degree of protection (IP) (EF005474) | IP55 |
| Voltage type (EF000187) | AC |
| Light distributor (EF012170) | Diffuser |
| With light source (EF005905) | No |
| With movement sensor (EF000197) | No |
| Suitable for emergency lighting (EF004275) | No |
| Nominal voltage (EF005127) | 110 V |
| Dimming manufacturer's proprietary system (EF012159) | No |
| Suitable for light line configuration (EF004274) | No |
| IFTTT support available (EF011072) | No |
| Dimming phase cut-on (leading edge) (EF012162) | No |
| Dimming programmable (EF012163) | No |
| Dimming RF (EF012164) | No |
| Dimming Sine Wave Reduction (EF012165) | No |
| Dimming Touch and Dim (EF012166) | No |
| Dimming Zigbee (EF012167) | No |
| Dimming with push-button (EF012168) | No |
| Length (EF001438) | 228 mm |
| Dimming mains voltage modulation (EF012160) | No |
| Dimming phase cut-off (trailing edge) (EF012161) | No |
| Covering of the luminaire with thermally insulating material possible (EF006423) | No |
| Type of grid (EF000282) | None |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 (EF006420) | No |
| Colour rendering index CRI (EF000442) | 90-100 |
| With air slots (EF009372) | No |
| Suitable for lamp power (EF000280) | 100 W |
| Dimming 0-10 V (EF012152) | No |
| Dimming 1-10 V (EF012153) | No |
| Dimming DALI (EF012154) | No |
| Dimming DMX (EF012155) | No |
| Dimming potentiometer (integrated) (EF012156) | No |
| Dimming LineSwitch (EF012158) | No |
| Suitable for suspended mounting (EF001265) | No |
| Suitable for number of light sources (EF006436) | 1 |
| Lamp holder (EF000048) | E27 |
| Type of control gear (EF000381) | Not required |
| Housing material (EF001596) | Aluminium |
| Suitable for workplace according to EN 12464-1 (EF007694) | No |
| Suitable for built-in mounting (EF006760) | No |
| Colour of light (EF009350) | White |
| Outer diameter (EF000015) | 228 mm |
| Housing colour (EF000136) | Grey |
| Rated ambient temperature according to IEC 62722-2-1 (EF012090) | -10 °C |
| Beam angle (EF008157) | Extreme wide beam >80° |
| Suitable for wall mounting (EF000664) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 060483 EN_060483.pdf | 140 Kbytes |
 |
