LEGRANDHUBLOTS060477 LEGRAND HUBLOT 17W WHITE, IP55

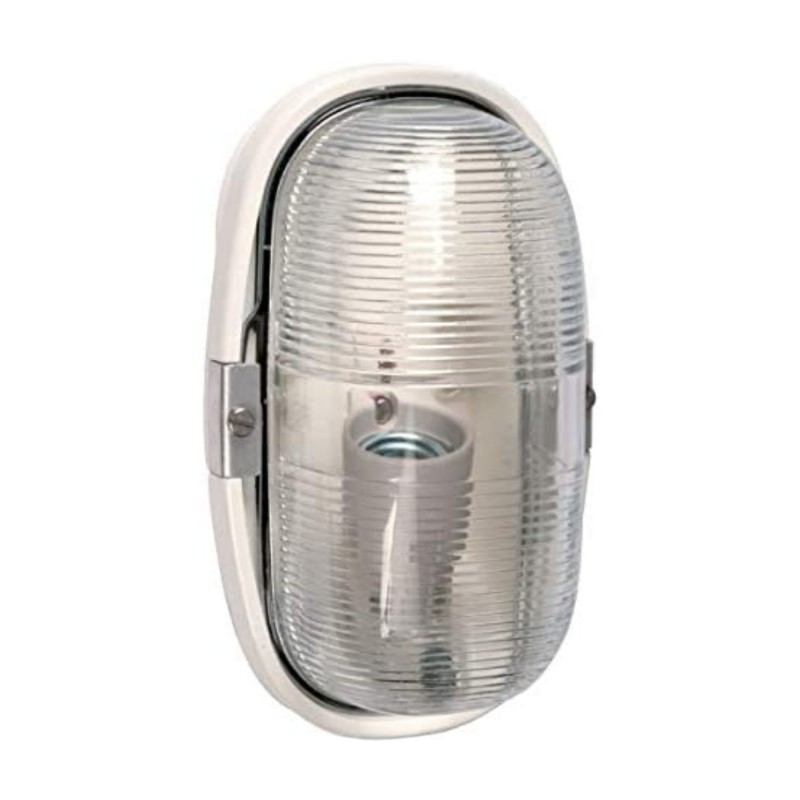

LEGRAND 060477 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

060477 LEGRAND HUBLOT 17W WHITE, IP55

Code: 060477

Manufacturer: LEGRAND

Description:

HUBLOT 17W WHITE, IP55
HUBLOT 75 W WHITE, IP55
Bulkhead light - IP55 - IK04 - oval - 75 W- E27 - though environments
Hublot metallic - 17W - IP55- IK04 - oval - E27

Categories:

  • Luminaires > Ceiling-/wall luminaire
  • LEGRAND > HUBLOTS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 106,46 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)2.668
  • Weight (g)1 229.00
Product characteristics
IP 55 - IK 04 bulkhead lights for tough environments
IP 55 - IK 04 bulkhead lights
  • Metal/glass bulkhead lights.
  • For exterior/indoor use
  • For industrial use. Earth terminal - 3 entries in T. Operating temperature:
    • min.: - 30 °C
    • max.: + 35 °C
  • Can be equipped with metal protection grid for IK 07 protection
  • E 27
  • Oval - for 55 W halogen, 17 W compact fluorescent or 8 W LED lamps
  • With colourless glass diffuser
General characteristics
IP 44/54/55 weatherproof bulkhead lights - For domestic, commercial areas and tough environments

ETIM for 060477 Luminaires (EC002892)

Feature nameSuitable for ceiling mounting (EF021180)
Feature valueYes
Feature nameLamp type (EF002423)
Feature valueIncandescent lamp
Feature nameWith control gear (EF007556)
Feature valueNo
Feature nameSuitable for surface mounting (EF007793)
Feature valueYes
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameMaterial cover (EF004284)
Feature valueGlass structured
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameLight distribution (EF004283)
Feature valueAsymmetric
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameLight outlet (EF004282)
Feature valueDirect
Feature nameWith light sensor (EF001203)
Feature valueNo
Feature nameMax. system power (EF009347)
Feature value75 W
Feature nameColour temperature (EF009346)
Feature value2700 K
Feature nameNominal current (EF009345)
Feature value326 mA
Feature nameImpact strength (EF004293)
Feature valueIK04
Feature nameDimming DSI (EF012188)
Feature valueNo
Feature nameProtection class according to IEC 61140 (EF000004)
Feature valueI
Feature nameHeight/depth (EF001456)
Feature value122 mm
Feature nameWidth (EF000008)
Feature value120 mm
Feature nameBuilt-in length (EF004265)
Feature value195 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP55
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameLight distributor (EF012170)
Feature valueDiffuser
Feature nameWith light source (EF005905)
Feature valueNo
Feature nameWith movement sensor (EF000197)
Feature valueNo
Feature nameSuitable for emergency lighting (EF004275)
Feature valueNo
Feature nameNominal voltage (EF005127)
Feature value110 V
Feature nameDimming manufacturer's proprietary system (EF012159)
Feature valueNo
Feature nameSuitable for light line configuration (EF004274)
Feature valueNo
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameDimming phase cut-on (leading edge) (EF012162)
Feature valueNo
Feature nameDimming programmable (EF012163)
Feature valueNo
Feature nameDimming RF (EF012164)
Feature valueNo
Feature nameDimming Sine Wave Reduction (EF012165)
Feature valueNo
Feature nameDimming Touch and Dim (EF012166)
Feature valueNo
Feature nameDimming Zigbee (EF012167)
Feature valueNo
Feature nameDimming with push-button (EF012168)
Feature valueNo
Feature nameLength (EF001438)
Feature value195 mm
Feature nameDimming mains voltage modulation (EF012160)
Feature valueNo
Feature nameDimming phase cut-off (trailing edge) (EF012161)
Feature valueNo
Feature nameCovering of the luminaire with thermally insulating material possible (EF006423)
Feature valueNo
Feature nameType of grid (EF000282)
Feature valueNone
Feature nameLuminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 (EF006420)
Feature valueNo
Feature nameColour rendering index CRI (EF000442)
Feature value90-100
Feature nameWith air slots (EF009372)
Feature valueNo
Feature nameSuitable for lamp power (EF000280)
Feature value75 W
Feature nameDimming 0-10 V (EF012152)
Feature valueNo
Feature nameDimming 1-10 V (EF012153)
Feature valueNo
Feature nameDimming DALI (EF012154)
Feature valueNo
Feature nameDimming DMX (EF012155)
Feature valueNo
Feature nameDimming potentiometer (integrated) (EF012156)
Feature valueNo
Feature nameDimming LineSwitch (EF012158)
Feature valueNo
Feature nameSuitable for suspended mounting (EF001265)
Feature valueNo
Feature nameSuitable for number of light sources (EF006436)
Feature value1
Feature nameLamp holder (EF000048)
Feature valueE27
Feature nameType of control gear (EF000381)
Feature valueNot required
Feature nameHousing material (EF001596)
Feature valueSteel
Feature nameSuitable for workplace according to EN 12464-1 (EF007694)
Feature valueNo
Feature nameSuitable for built-in mounting (EF006760)
Feature valueNo
Feature nameColour of light (EF009350)
Feature valueWhite
Feature nameHousing colour (EF000136)
Feature valueGrey
Feature nameRated ambient temperature according to IEC 62722-2-1 (EF012090)
Feature value-10 °C
Feature nameBeam angle (EF008157)
Feature valueExtreme wide beam >80°
Feature nameSuitable for wall mounting (EF000664)
Feature valueYes
