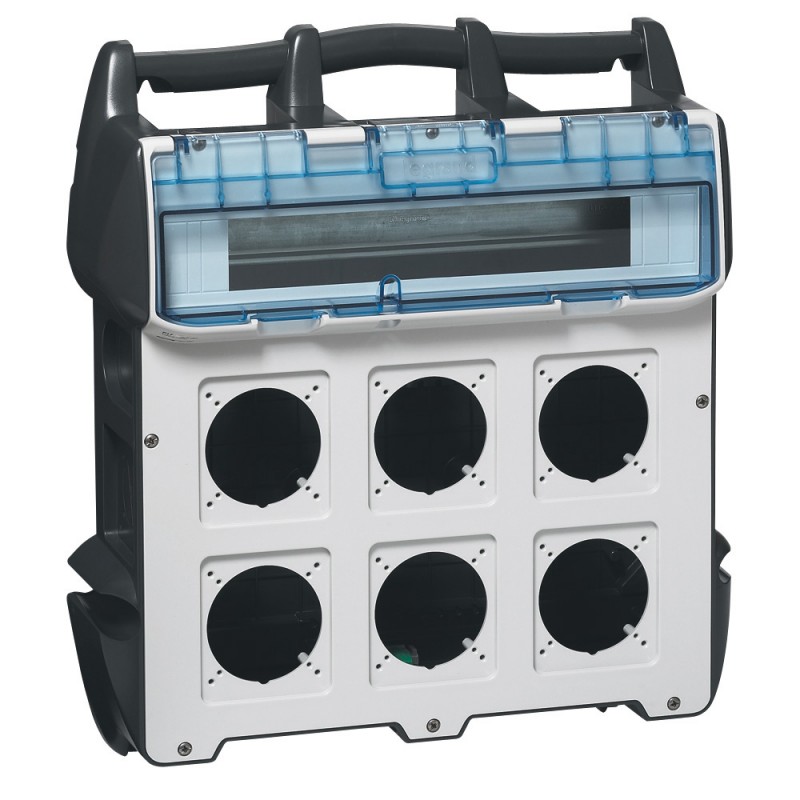

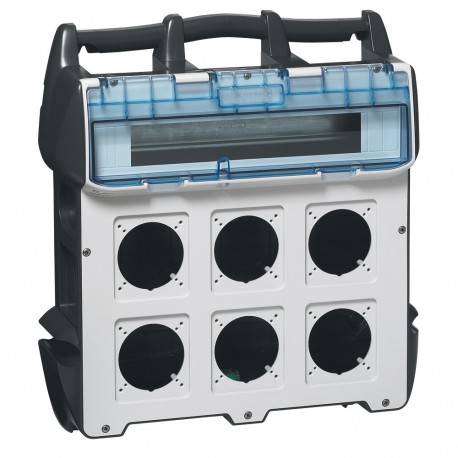

058957 LEGRAND COMBINED WORK WITHOUT EQUIPMENT

Product features

Combined work - Combined portable and multi-purpose with handle, built-in that allows the supply of a provisional all kinds of equipment in works, fairs, etc .. - IP 44 - body IK 09 Material: body ABS - window polycarbonate - operating Temperature: -25° C to +40° C - mounting and adhesion easy without the need to open previously the unit (fixation on the outside of the box) or on the chassis ref. 0 577 43 - pole Mounting with a set ref. 0 364 46/47/48/49, for compatibility, refer to the technical sheet in the catalogue. Window replaceable (replacement available upon request) - Prescored for possible incorporation of: - 2 cable entries (max. M32) for the bottom and 1 on each side of the box - 1 base P 17 domestic connection additional on each side of the box - Notches on the sides to roll up the cable (not included in the supply), it can be rolled up around the chassis - Dimensions (at The. x W.): 479,6 x 431 mm For equip Combo equipped with a lid cubrebornas that supports up to 6 sockets: - 2P+T, domestic, ref. 0 576 76 - Bases 16/32A IEC - 1 adapter ref. 0 539 48 that supports the modules Mosaic (except in surface particular) Equipped with: - Terminal block IP 2X for connection of the protective conductor - Supplied with 9 plates blind mo modular - DIN Rail for up to 20 modules of 17,5 mm

General characteristics

Combined work laptops P17 - Comply with standard en 60439-4 - Provides temporary supply of energy to buildings and events - RAL 7016 and 7035
