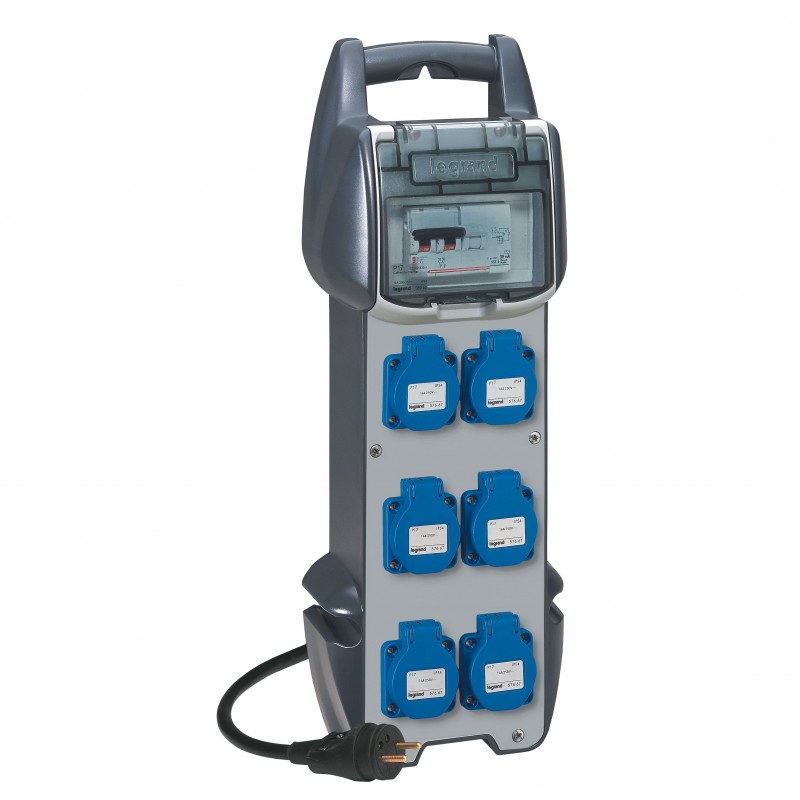

LEGRAND 058944 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

058944 LEGRAND COMBINED WORK IP54

Code: 058944

Manufacturer: LEGRAND

Description:

COMBINED WORK IP54
Combined work P17 equipped with 6 bases - IP 54 - body IK 10
P17 portable construction combo equipped with 6 2P+T sockets, 16A, IP54, 250V~, IK10

Categories:

  • Industrial socket/plug applications > CEE socket outlet combination
  • LEGRAND > SOCKETS AND COMBINED P-17

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 268,79 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Product features

Combined work - Combined portable with hand grip built-in (possible step of anti-theft chain) to supply power to portable electric tools - IP 54 - enclosure IK 10 - Material: body ABS - window polycarbonate - operating Temperature: -25° C to +40° C - mounting and adhesion easy without the need to open previously the unit (fixation on the outside of the unit) - pole Mounting with a set ref. 0 364 46/47/48/49, for compatibility, refer to the technical sheet in the catalogue-mail - Window-replaceable - cable Entry supplementary prescored by the bottom of the M20. Notched side for winding the cable - Possibility to lock the cable to the transport - Dimensions (H x l): 506,5 x 181,5 mm For equip - Composition: - 6 x 2P+T 16A (ref. 0 576 75) - Protection by switch magnetotémico differential 16A - 30mA - cable 3m - pin domestic use

General characteristics

Combined work laptops P17 - Comply with standard en 60439-4 - Provides temporary supply of energy to buildings and events - RAL 7016 and 7035

ETIM for 058944 Industrial plugs and sockets (EC000379)

Feature nameHeight (EF000040)
Feature value506.5 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP44
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameProtection (EF000781)
Feature valueOver current switch
Feature nameEarth leakage switch (EF002657)
Feature valueNone
Feature nameNumber of socket outlets with protective contact CEE 7/3 (type F) (EF000411)
Feature value6
Feature nameDiameter cable entry (EF016110)
Feature valueM20
Feature nameNumber of miniature circuit breakers (MCB) (EF005564)
Feature value0
Feature nameCEE socket outlet 63 A (EF002790)
Feature valueNone
Feature nameCEE socket outlet 125 A (EF002791)
Feature valueNone
Feature namePower supply/connection possibility (EF002794)
Feature valueFeeder cable with plug
Feature nameHandling (EF002795)
Feature valuePortable
Feature nameMilitary model (EF006050)
Feature valueNo
Feature nameDepth (EF000049)
Feature value110 mm
Feature nameCEE socket outlet 32 A (EF002789)
Feature valueNone
Feature nameColour (EF000007)
Feature valueGrey
Feature nameCEE socket outlet 16 A (EF002788)
Feature valueNone
Feature nameWidth (EF000008)
Feature value181.5 mm
