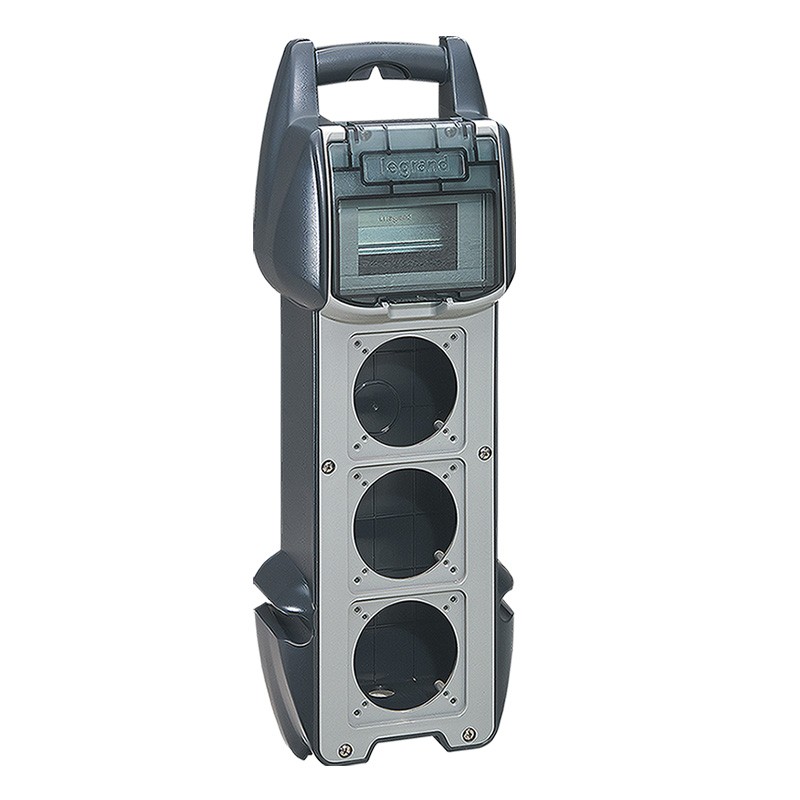

LEGRAND 058943 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

058943 LEGRAND COMBINED WORK TO EQUIP

Code: 058943

Manufacturer: LEGRAND

Description:

COMBINED WORK TO EQUIP
Combined work P17 without equip - IP 44 - body IK 10
P17 portable construction combo to equip up to 3 sockets. 16A, IP44, IK09

Categories:

  • Industrial socket/plug applications > CEE socket outlet combination
  • LEGRAND > SOCKETS AND COMBINED P-17

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 98,74 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Product features

Combined work - Combined portable with hand grip built-in (possible step of anti-theft chain) to supply power to portable electric tools - IP 44 - enclosure IK 10 - Material: body ABS - window polycarbonate - operating Temperature: -25° C to +40° C - mounting and adhesion easy without the need to open previously the unit (fixation on the outside of the unit) - pole Mounting with a set ref. 0 364 46/47/48/49, for compatibility, refer to the technical sheet in the catalogue-mail - Window-replaceable - cable Entry supplementary prescored by the bottom of the M20. Notched side for winding the cable - Possibility to lock the cable to the transport - Dimensions (H x l): 506,5 x 181,5 mm For equip - Supports up to 3 sockets 16 A: - sockets P 17 domestic connection ref. 0 576 76 - sockets P 17 IEC 16 TO BT with entreejes unified for horizontal clamping - 1 adapter ref. 0 539 48 - supplied with 2 blanking plates - With terminal block IP 2X for connection of the protective conductor - Equipped with a DIN rail that supports up to 6 modules of 17,5 mm

General characteristics

Combined work laptops P17 - Comply with standard en 60439-4 - Provides temporary supply of energy to buildings and events - RAL 7016 and 7035

ETIM for 058943 Industrial plugs and sockets (EC000379)

Feature nameHeight (EF000040)
Feature value506.5 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP44
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameProtection (EF000781)
Feature valueNone
Feature nameEarth leakage switch (EF002657)
Feature valueNone
Feature nameNumber of socket outlets with protective contact CEE 7/3 (type F) (EF000411)
Feature value0
Feature nameDiameter cable entry (EF016110)
Feature valueM20
Feature nameNumber of miniature circuit breakers (MCB) (EF005564)
Feature value0
Feature nameCEE socket outlet 63 A (EF002790)
Feature valueNone
Feature nameCEE socket outlet 125 A (EF002791)
Feature valueNone
Feature namePower supply/connection possibility (EF002794)
Feature valueOther
Feature nameHandling (EF002795)
Feature valueWall mounting
Feature nameMilitary model (EF006050)
Feature valueNo
Feature nameDepth (EF000049)
Feature value110 mm
Feature nameCEE socket outlet 32 A (EF002789)
Feature valueNone
Feature nameColour (EF000007)
Feature valueGrey
Feature nameCEE socket outlet 16 A (EF002788)
Feature valueNone
Feature nameWidth (EF000008)
Feature value181.5 mm
