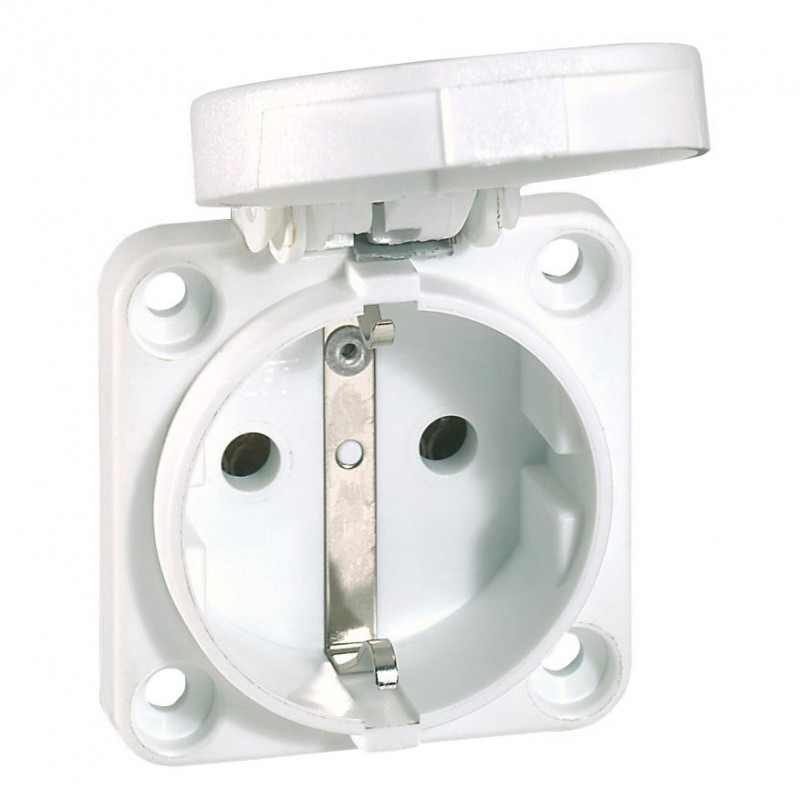

057675 LEGRAND BASE P/BOXES 2P+T SIDE
057675
LEGRAND
20
BASE P/BOXES 2P+T SIDE
Panel mounting socket P17 - IP54 - IK09 250 V~ - 2P+E shutters - white
P17 checkered base, side. 2P+T, 16A, IP44 - with shutters - Blue
Industrial socket/plug applications > Panel-mounted CEE socket outlet
SOCKETS AND COMBINED P-17
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)20
- Volume (dm3)3.325
- Weight (g)989.00
- Domestic pin configuration German standard sockets
- IP 54 cover closed - IP 44 connected
- IK 09 according to IEC 62262 and EN 62262
- 2P+E 250 V~
- Material: plastic
- Self-extinguishing: 850 °C
- Can be fixed only on plain faceplates Cat.Nos 0 577 15/16
- Blue panel mounting sockets with shutters
| Feature Name | Feature Value |
|---|---|
| Drill hole distance vertical (EF008405) | 38 mm |
| Insert direction (EF002650) | Straight |
| Drill hole distance horizontal (EF008406) | 38 mm |
| Flange size vertical (EF008407) | 62 mm |
| Degree of protection (IP) (EF005474) | IP44 |
| Material (EF002169) | Plastic |
| Military model (EF006050) | No |
| Clock hour position (EF006584) | 6 h |
| Number of poles (EF001391) | 2 |
| Voltage according to EN 60309-2 (EF006726) | Other |
| Identification colour (EF006725) | White |
| Flange size horizontal (EF008408) | 50 mm |
| Amperage according to UL/CSA (for UL-version) (EF002648) | 250 A |
| Connection system (EF002649) | Screwed terminal |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 057675 EN_057669.pdf | 634 Kbytes |
 |
