LEGRANDSOCKETS AND COMBINED P-17057669 LEGRAND 2P+T 16A SOCKET, 250V WHITE
LEGRAND 057669 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

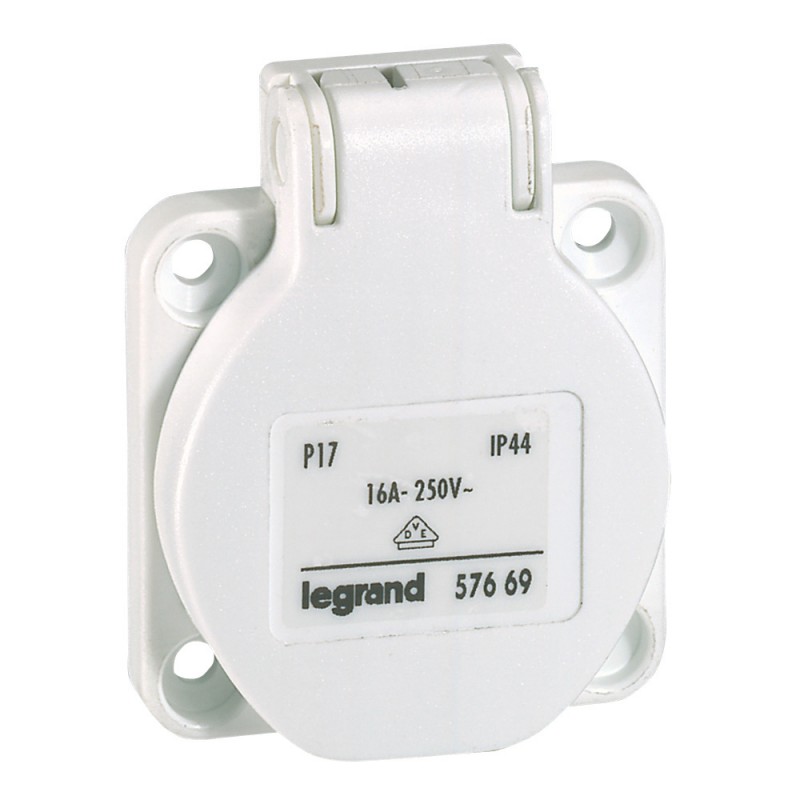

057669 LEGRAND 2P+T 16A SOCKET, 250V WHITE

Code: 057669

Manufacturer: LEGRAND

Description:

2P+T 16A SOCKET, 250V WHITE
SOCKET 2P+T, 16A, 250V, WHITE
Panel mounting socket small flange P17 - IP54 - IK09 250 V~ - 2P+E - white
P17 checkered base, side. 2P+T, 16A, IP44 - shutterless - White

Categories:

  • Industrial socket/plug applications > Panel-mounted CEE socket outlet
  • LEGRAND > SOCKETS AND COMBINED P-17

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 167,68 €

Unit Price: 8,384 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)20
  • Volume (dm3)3.325
  • Weight (g)988.00
Product characteristics
Panel mounting sockets
  • Domestic pin configuration German standard sockets
  • IP 54 cover closed - IP 44 connected
  • IK 09 according to IEC 62262 and EN 62262
  • 2P+E 250 V~
  • Material: plastic
  • Self-extinguishing: 850 °C
Panel mounting sockets with small flange
  • Can be fixed only on plain faceplates Cat.Nos 0 577 15/16
  • White panel mounting sockets
General characteristics
P 17 Tempra - domestic pin configuration 16 A - 250 V~

ETIM for 057669 Industrial plugs and sockets (EC001317)

Feature nameDrill hole distance vertical (EF008405)
Feature value38 mm
Feature nameInsert direction (EF002650)
Feature valueStraight
Feature nameDrill hole distance horizontal (EF008406)
Feature value38 mm
Feature nameFlange size vertical (EF008407)
Feature value50 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP54
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameMilitary model (EF006050)
Feature valueNo
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameIEC-amperage (EF002647)
Feature value16 A
Feature nameVoltage according to EN 60309-2 (EF006726)
Feature valueOther
Feature nameIdentification colour (EF006725)
Feature valueWhite
Feature nameFlange size horizontal (EF008408)
Feature value50 mm
Feature nameConnection system (EF002649)
Feature valueScrewed terminal

DATASHEET - PDF

Title
Size
Type
057669 EN_057669.pdf
634 Kbytes
