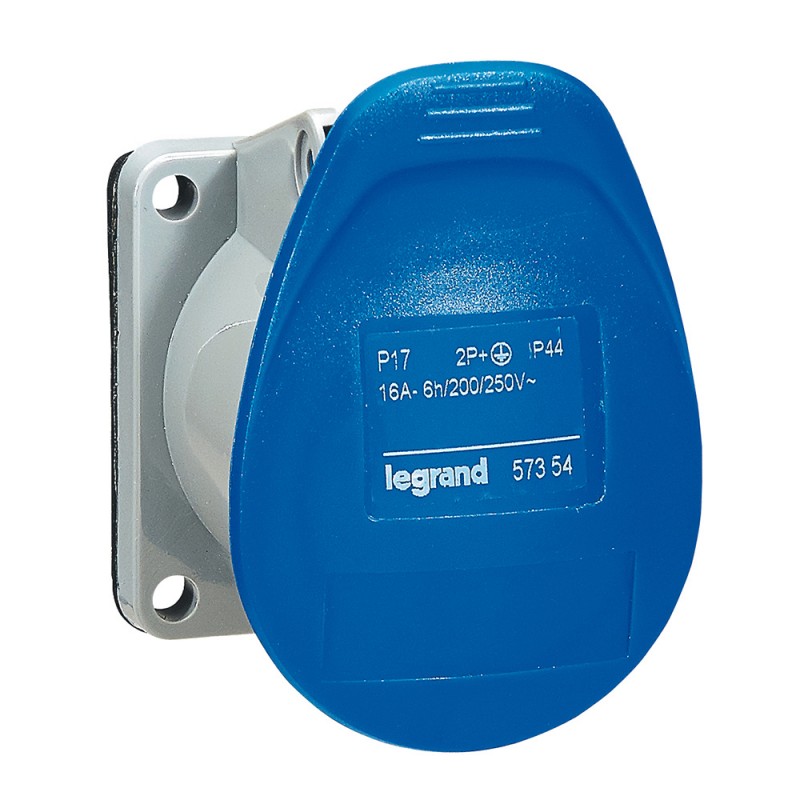

057354 LEGRAND OUTLET P17 16A 230V 2 POLE+EARTH
057354
LEGRAND
10
OUTLET P17 16A 230V 2 POLE+EARTH
P17 Tempra IP44 16A 200/250V AC 2 Pole + Earth Panel Mounting Socket Plastic
P17 panel mounting power socket. 2P+T, 16A, IP44. Straight exit. Blue
Industrial socket/plug applications > Panel-mounted CEE socket outlet
SOCKETS AND COMBINED P-17
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲| IEC-amperage | 16 A |
|---|---|
| Voltage according to EN 60309-2 | 230 V (50+60 Hz) blue |
| Number of poles | 3 |
| Clock hour position | 6 h |
| Identification colour | Blue |
| Degree of protection (IP) | IP44 |
| Connection system | Screwed terminal |
| Insert direction | Straight |
|---|---|
| Material | Plastic |
| Military model | No |
| Flange size vertical | 58 mm |
| Drill hole distance vertical | 47 mm |
| Flange size horizontal | 58 mm |
| Drill hole distance horizontal | 47 mm |
| Feature Name | Feature Value |
|---|---|
| Drill hole distance vertical (EF008405) | 47 mm |
| Insert direction (EF002650) | Straight |
| Drill hole distance horizontal (EF008406) | 47 mm |
| Flange size vertical (EF008407) | 58 mm |
| Degree of protection (IP) (EF005474) | IP44 |
| Material (EF002169) | Plastic |
| Military model (EF006050) | No |
| Clock hour position (EF006584) | 6 h |
| Number of poles (EF001391) | 3 |
| IEC-amperage (EF002647) | 16 A |
| Voltage according to EN 60309-2 (EF006726) | 230 V (50+60 Hz) blue |
| Identification colour (EF006725) | Blue |
| Flange size horizontal (EF008408) | 58 mm |
| Connection system (EF002649) | Screwed terminal |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 057354 EN_057354.pdf | 1 Mbytes |
 |
