LEGRANDSOCKETS AND COMBINED P-17055245 LEGRAND P17 FRAME BASE 16A 20/25V

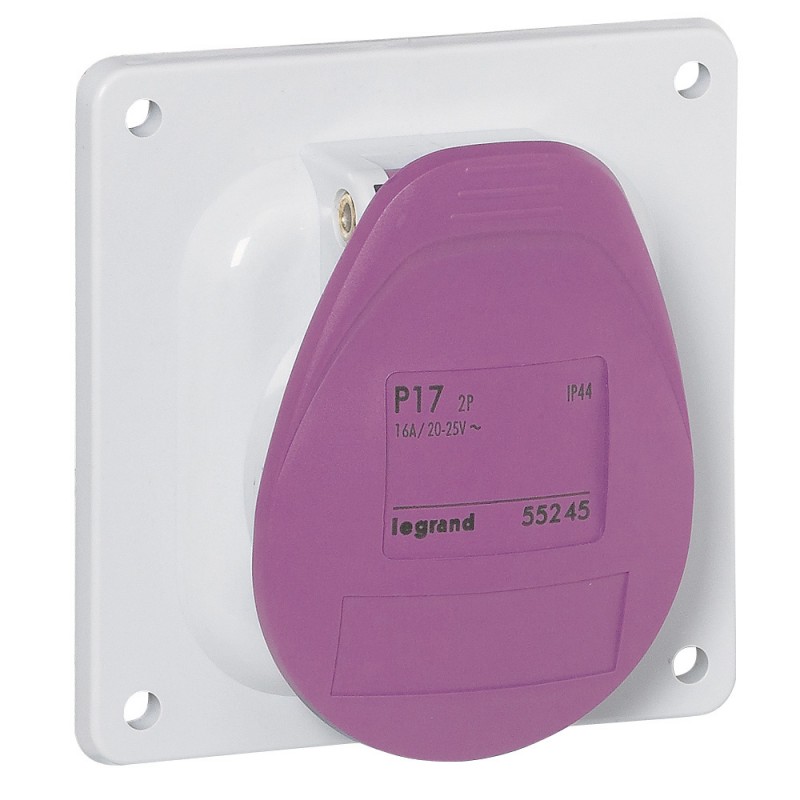

LEGRAND 055245 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

055245 LEGRAND P17 FRAME BASE 16A 20/25V

Code: 055245

Manufacturer: LEGRAND

Description:

P17 FRAME BASE 16A 20/25V
Q17 BASE TABLES 16A 20/25V
Panel mounting socket P17 - IP44 - 20/25 V~ - 16 A - 2P
Base for frames with unified P17, 16A, 2P, IP44 inter-axles. MTB Purple

Categories:

  • Industrial socket/plug applications > Panel-mounted CEE socket outlet
  • LEGRAND > SOCKETS AND COMBINED P-17

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 85,79 €

Unit Price: 17,157 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)5
  • Volume (dm3)3.60
  • Weight (g)658.00
Product characteristics
Panel mounting sockets
20/25 V~
  • 16 A
  • 2P
General characteristics
P 17 Tempra IP 44 - ELV 16 and 32 A

ETIM for 055245 Industrial plugs and sockets (EC001317)

Feature nameDrill hole distance vertical (EF008405)
Feature value70 mm
Feature nameInsert direction (EF002650)
Feature valueStraight
Feature nameDrill hole distance horizontal (EF008406)
Feature value70 mm
Feature nameFlange size vertical (EF008407)
Feature value84 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP44
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameMilitary model (EF006050)
Feature valueNo
Feature nameClock hour position (EF006584)
Feature value12 h
Feature nameNumber of poles (EF001391)
Feature value2
Feature nameIEC-amperage (EF002647)
Feature value16 A
Feature nameVoltage according to EN 60309-2 (EF006726)
Feature value20-25 V (50+60 Hz) violet
Feature nameIdentification colour (EF006725)
Feature valuePurple/violet
Feature nameFlange size horizontal (EF008408)
Feature value84 mm
Feature nameConnection system (EF002649)
Feature valueScrewed terminal

DATASHEET - PDF

Title
Size
Type
055245 EN_055245.pdf
1 Mbytes
