LEGRANDTIME SWITCHES049756 LEGRAND QW TIME SWITCH

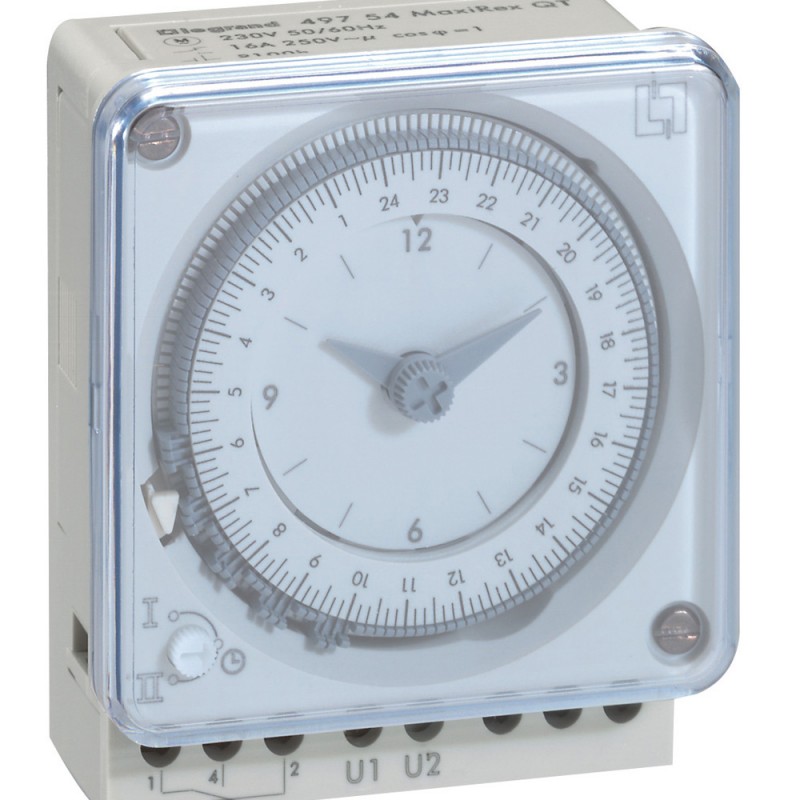

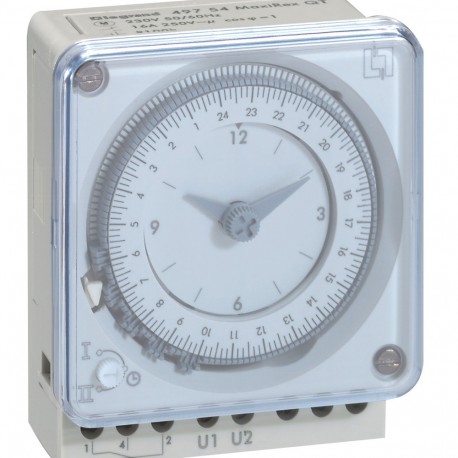

LEGRAND 049756 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

049756 LEGRAND QW TIME SWITCH

Code: 049756

Manufacturer: LEGRAND

Description:

QW TIME SWITCH
SWITCH HOURS QW
Analogue time switch - weekly programme - 16 A 250 V~
Analog - weekly programmable time switch

Categories:

  • Devices for distribution board-/surface mounting > Analogous time switch for distribution board
  • LEGRAND > TIME SWITCHES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 133,39 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Product features

Analogue - Scale graded analogue - Power supply 230 V~ - 50/60 Hz - Switch forced march in front - power Reserve: 100 h - 16 A - 250 V~ - ? cos phi = 1 - 1 output for contact unipolar inverter With programmer weekly - Programming: minimum 3 hours (1 segment = 1 hour) Accuracy of times of switching: ± 30 min - Connection by screw - Fastening on mounting plate with cubrebornas included in the supply, on door with ref. 0 498 32 or in lane with ref. 0 044 09 or on the surface

General characteristics

Switches schedules programmable 72 x 72

ETIM for 049756 Modular devices for distribution board/surface mounting (EC002304)

Feature nameHeight (EF000040)
Feature value110 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameAutonomy in hours (EF004721)
Feature value100
Feature nameSupply voltage (EF004127)
Feature value230 V
Feature nameFrequency supply voltage (EF004687)
Feature value50 Hz
Feature nameMounting method (EF000003)
Feature valuePanel mounting 72x72 mm
Feature nameAccuracy per day (EF006325)
Feature value2.5 s
Feature namePotential free switch contact (EF003626)
Feature valueYes
Feature nameAutomatic switching summer/winter time (EF002977)
Feature valueNo
Feature nameQuartz controlled (EF002974)
Feature valueYes
Feature nameNumber of channels (EF000259)
Feature value1
Feature nameSuitable for manual operation (EF002978)
Feature valueYes
Feature nameSwitching preselection (EF002979)
Feature valueYes
Feature nameAnnual program (EF001185)
Feature valueNo
Feature nameVoltage type (supply voltage) (EF002991)
Feature valueAC
Feature nameWeekly program (EF001184)
Feature valueYes
Feature nameMains synchronous (EF002973)
Feature valueNo
Feature nameContact type (EF001587)
Feature valueEV000201
Feature nameNominal switching current at 250 V AC (EF005126)
Feature value16 A
Feature nameProgram shift divide 1 (EF005181)
Feature value60 min
Feature nameDepth (EF000049)
Feature value44 mm
Feature name24 h program (EF002965)
Feature valueNo
Feature name60 min program (EF002964)
Feature valueNo
Feature nameWidth (EF000008)
Feature value72 mm

DATASHEET - PDF

Title
Size
Type
049756 EN_049756.pdf
142 Kbytes
