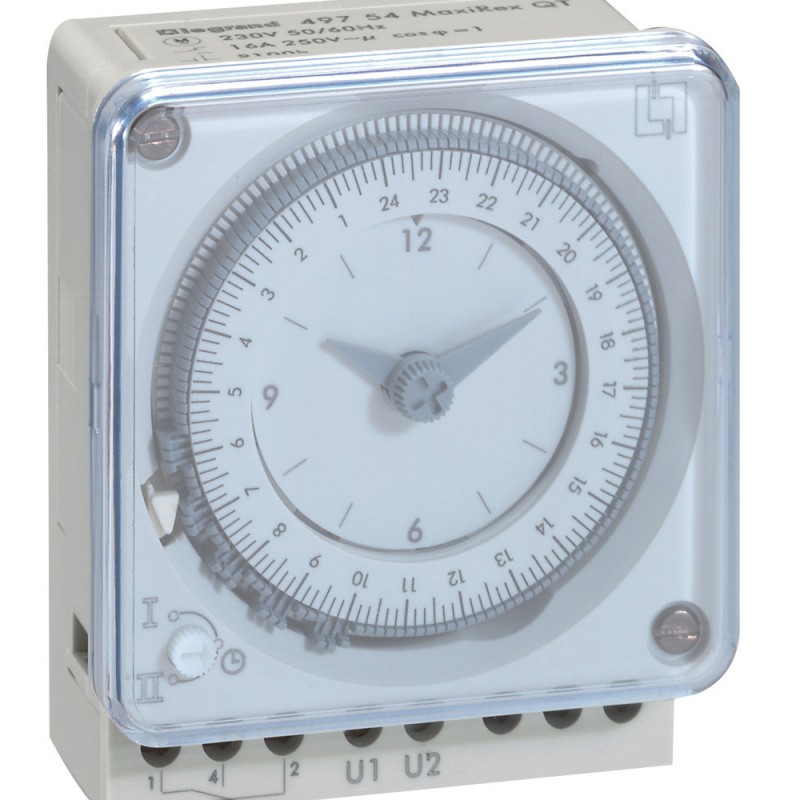

LEGRAND 049754 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

049754 LEGRAND QT TIME SWITCH

Code: 049754

Manufacturer: LEGRAND

Description:

QT TIME SWITCH
SWITCH HOURS QT
MaxiRex Time Switch 230V AC 1 x 16A 7 Day with Reserve
Analog - daily programmable time switch

Categories:

  • Devices for distribution board-/surface mounting > Analogous time switch for distribution board
  • LEGRAND > TIME SWITCHES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 127,21 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

MaxiRex Conform to EN 60730-1 and EN 60730-2-7 Supply voltage: 230V~ n10% 3 position changeover switch With manual override Voltage free contacts Mounting options: - can be surface mounted - can be panel mounted using Cat. No. 0498 32 - can be clipped to DIN rail 4 using Cat. No. 0044 09 With 72 x 72mm display to DIN EN 60715 Part C MaxiRex QT With 100 hr working reserve - 50/60 Hz 7 day programme Programmable for 3 hours minimum at 1 hour intervals Accuracy: n30 minutes per day
Mounting methodPanel mounting 72x72 mm
Number of channels1
Supply voltage230-230 V
Voltage type (supply voltage)AC
Frequency supply voltage50-60 Hz
Autonomy in hours100
Accuracy per day2.5 s
60 min programNo
24 h programYes
Weekly programNo
Annual programNo
Mains synchronousNo
Quartz controlledYes
Shortest switching time channel 130 min
Program shift divide 110 min
Automatic switching summer/winter timeNo
Suitable for manual operationYes
Switching preselectionYes
Nominal switching current at 250 V AC16 A
Potential free switch contactYes
Degree of protection (IP)IP20
Width72 mm
Height110 mm
Depth44 mm
Contains Batteries and/or AccumulatorYes
IEC code (Pack1)V65HT
Battery ou Accumulator (Pack1)Accumulator (rechargeable)
Element Composition (Pack1)Nickel metal hydride
Number of Pack 11
Number of Single Element (Pack1)1
Single Element weight (Pack1)4 g
Pack1 LocationProduct includes a battery
Regulation Type (Pack1)P : Portable (Standard format)

ETIM for 049754 Modular devices for distribution board/surface mounting (EC002304)

Feature nameHeight (EF000040)
Feature value110 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameAutonomy in hours (EF004721)
Feature value100
Feature nameSupply voltage (EF004127)
Feature value230 V
Feature nameFrequency supply voltage (EF004687)
Feature value50 Hz
Feature nameMounting method (EF000003)
Feature valuePanel mounting 72x72 mm
Feature nameAccuracy per day (EF006325)
Feature value2.5 s
Feature namePotential free switch contact (EF003626)
Feature valueYes
Feature nameAutomatic switching summer/winter time (EF002977)
Feature valueNo
Feature nameQuartz controlled (EF002974)
Feature valueYes
Feature nameNumber of channels (EF000259)
Feature value1
Feature nameSuitable for manual operation (EF002978)
Feature valueYes
Feature nameSwitching preselection (EF002979)
Feature valueYes
Feature nameAnnual program (EF001185)
Feature valueNo
Feature nameVoltage type (supply voltage) (EF002991)
Feature valueAC
Feature nameWeekly program (EF001184)
Feature valueNo
Feature nameMains synchronous (EF002973)
Feature valueNo
Feature nameContact type (EF001587)
Feature valueEV000201
Feature nameNominal switching current at 250 V AC (EF005126)
Feature value16 A
Feature nameProgram shift divide 1 (EF005181)
Feature value10 min
Feature nameDepth (EF000049)
Feature value44 mm
Feature name24 h program (EF002965)
Feature valueYes
Feature name60 min program (EF002964)
Feature valueNo
Feature nameWidth (EF000008)
Feature value72 mm
