LEGRANDACCESSORIES CONTROL AND CONTROL PANELS049560 LEGRAND COUNT. ANALOG SCHEDULE.12-36VDC

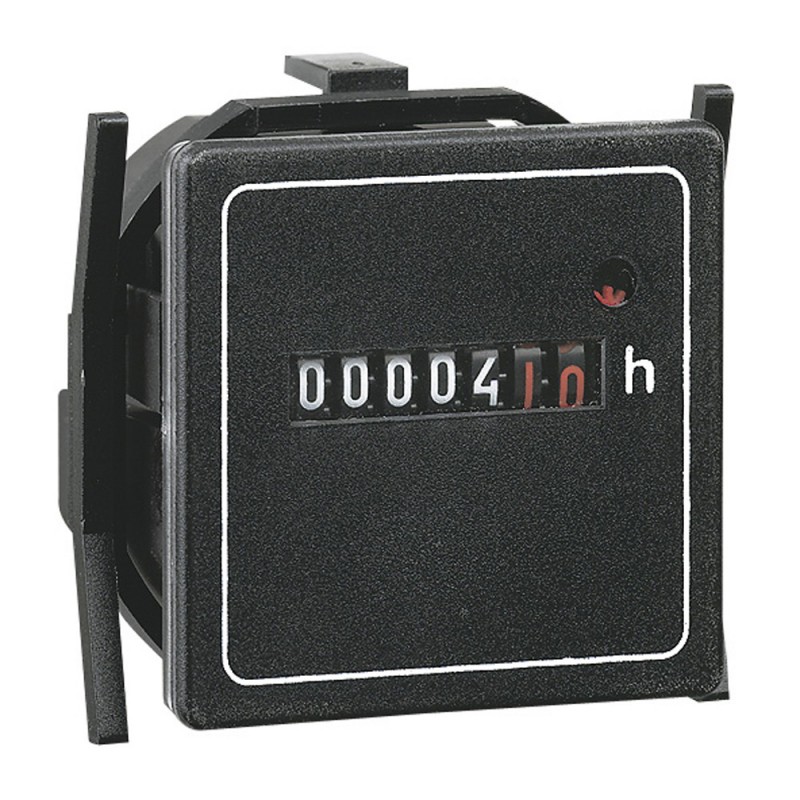

LEGRAND 049560 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

049560 LEGRAND COUNT. ANALOG SCHEDULE.12-36VDC

Code: 049560

Manufacturer: LEGRAND

Description:

COUNT. ANALOG SCHEDULE.12-36VDC
COUNT.HOURS ANALOG.12-36VCC
Hour counter - IP40 - 12 to 36 V=
Totalizing hour meter - From 12V to 36 V=

Categories:

  • Meters > Hour meter
  • LEGRAND > ACCESSORIES CONTROL AND CONTROL PANELS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 146,27 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)0.365
  • Weight (g)83.00
Product characteristics
Totalising hour counters (48 x 48)
  • One-piece device
  • IP 40
  • Front mounting on enclosure or cabinet doors
  • Synchronous motor operation (operation indicator)
  • For counting the operating hours of an electrical machine or device, with no reset
  • Supplied with cover frame (55 x 55 mm) (for round cut-out) and fixing accessories
  • Connection: 2 x 1.5 mm²
  • 12 to 36 V=
General characteristics
Electrical energy metering on door
  • Ammeters, voltmeters, totalising, can be mounted on XL³ 800 and XL³ 4000 curved doors

ETIM for 049560 Meters (EC001641)

Feature nameHeight (EF000040)
Feature value48 mm
Feature nameModel (EF000010)
Feature valueAnalogue
Feature nameOperation indication (EF004881)
Feature valueYes
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP40
Feature nameFront plate width (EF004689)
Feature value48.5 mm
Feature nameVoltage type (EF000187)
Feature valueDC
Feature nameMounting method (EF000003)
Feature valueFront mounting
Feature nameType of drive (EF001422)
Feature valueMains synchronous
Feature nameInput voltage (EF003840)
Feature value12 V
Feature nameNumber of digits (EF005555)
Feature value7
Feature nameCount area (EF005440)
Feature value99999.99 h
Feature nameDiameter panel opening (EF004691)
Feature value55 mm
Feature nameFront plate height (EF004690)
Feature value55 mm
Feature nameReset function (EF005207)
Feature valueNone
Feature nameBuilt-in depth (EF000218)
Feature value32 mm
Feature nameWidth (EF000008)
Feature value48 mm

DATASHEET - PDF

Title
Size
Type
049560 EN_049560.pdf
132 Kbytes
