LEGRANDAUTOMATION, CONTROL AND KNX CONTROL049292 LEGRAND KNX CABLE 500M 2 PAIRS

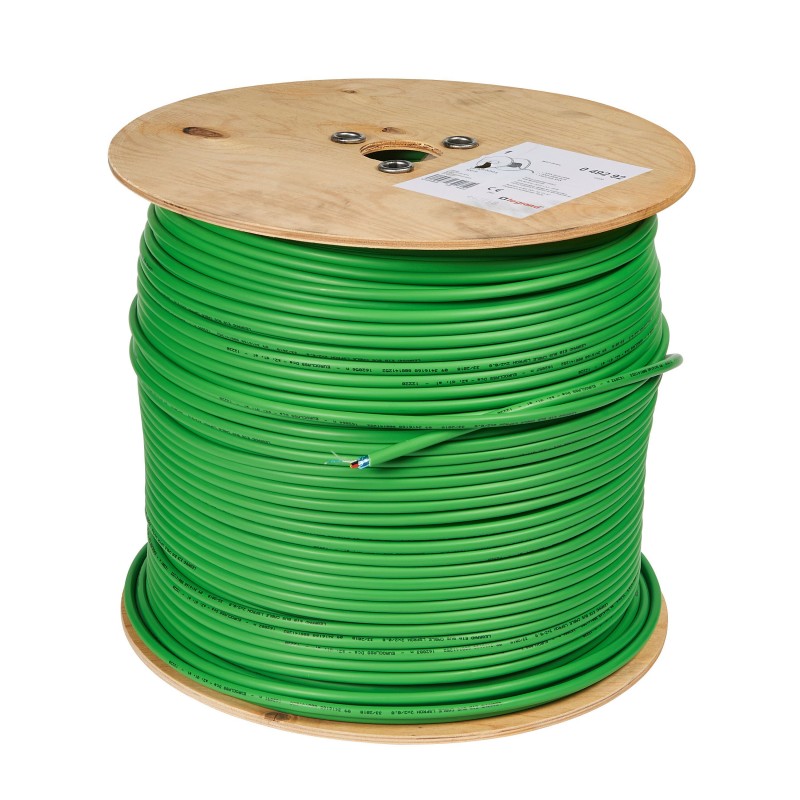

LEGRAND 049292 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

049292 LEGRAND KNX CABLE 500M 2 PAIRS

Code: 049292

Manufacturer: LEGRAND

Description:

KNX CABLE 500M 2 PAIRS
KNX cable 2 pairs - 500 m

Categories:

  • Cables > Power cable >= 1 kV, for permanent installation
  • LEGRAND > AUTOMATION, CONTROL AND KNX CONTROL

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 971,95 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

KNX cable 2 pairs of stranded conductors (red-black and white-yellow). It can be installed next to the 230V power cable. Recessed or ducted installation, as long as protection from sunlight is guaranteed. Length of 500m. Diameter: 0.8mm - 4000 V insulation.
Conductor Materialcopper
Conductor surfaceUncovered
Nominal Conductor Section0.8 mm²
Conductor Diameter0.5 mm
Driver ClassClass 2 = multi-strand rigid
Conductor designRound
Number of threads4
Conductor insulation materialOther
Conductor insulation specificationOther
Type of driver identificationColour
Filling materialYes
Fiber Optic ElementsNo
With protective conductorNo
ScreenYes
Drainage threadYes
Lead coverNo
Number of Auxiliary Conductors0
Concentric conductorcopper
Concentric nominal conductor cross-section0.5 mm²
Cover materialOther
Deck Material SpecificationOther
Outer Cover ColorGreen
Cable geometryRound
Low smoke emission according to EN IEC 61034-2Yes
Halogen-free according to IEC 60754-1Yes
Halogen-free according to EN IEC 60754-2Yes
Approximate cable width7.7 mm
Approximate cable height7.7 mm
Outer diameter approx.7.7 mm
Allowable Outside Cable Temperature During Wiring/Handling-25-70 °C
Permissible ambient temperature of the cable after assembly without vibration-25-70 °C
Assigned voltage U02.5 kV
Assigned voltage U4 kV
Suitable for underground installationNo
Suitable as an installation cableYes

ETIM for 049292 Cable (EC003251)

Feature nameHalogen free according to EN IEC 60754-2 (EF003792)
Feature valueYes
Feature nameCable height approx. (EF003797)
Feature value7.7 mm
Feature nameNumber of pilot/reduced conductors (EF001697)
Feature value0
Feature nameConcentric conductor (EF003795)
Feature valueCopper
Feature nameCable width approx. (EF003796)
Feature value7.7 mm
Feature nameConductor surface (EF010804)
Feature valueBare
Feature nameNominal cross section concentric conductor (EF001800)
Feature value0.5 mm²
Feature nameShape of conductor (EF001620)
Feature valueRound
Feature nameSpecification material outer sheath (EF011806)
Feature valueOther
Feature nameSpecification core insulation (EF011805)
Feature valueOther
Feature nameColour outer sheath (EF001618)
Feature valueGreen
Feature nameLow smoke according to EN IEC 61034-2 (EF003799)
Feature valueYes
Feature nameNominal voltage U (EF001615)
Feature value4 kV
Feature nameNominal voltage U0 (EF001790)
Feature value2.5 kV
Feature nameNumber of cores (EF001792)
Feature value4
Feature nameScreen (EF001791)
Feature valueYes
Feature nameCore identification (EF000067)
Feature valueColour
Feature nameMaterial core insulation (EF000061)
Feature valueOther
Feature nameNominal cross section conductor (EF000060)
Feature value0.8 mm²
Feature nameHalogen free according to EN IEC 60754-1 (EF016498)
Feature valueYes
Feature nameConductor material (EF001622)
Feature valueCopper
Feature nameDiameter conductor (EF001621)
Feature value0.5 mm
Feature nameLead sheath (EF001027)
Feature valueNo
Feature nameSuitable for underground installation (EF003689)
Feature valueNo
Feature nameDrain wire (EF001029)
Feature valueYes
Feature nameOuter diameter approx. (EF003921)
Feature value7.7 mm
Feature nameMaterial outer sheath (EF001625)
Feature valueOther
Feature namePermitted cable outer temperature after assembling without vibration (EF001686)
Feature value-25 °C
Feature namePermitted cable outer temperature during assembling/handling (EF001685)
Feature value-25 °C
Feature nameWith protective conductor (EF007468)
Feature valueNo
Feature nameSuitable as installation cable (EF013771)
Feature valueYes
Feature nameCable geometry (EF013532)
Feature valueRound
Feature nameConductor category (EF001632)
Feature valueClass 2 = stranded
Feature nameLaminated sheath (EF001637)
Feature valueYes
Feature nameFibre optic elements (EF001638)
Feature valueNo

DATASHEET - PDF

Title
Size
Type
049292 EN_049291.pdf
371 Kbytes
