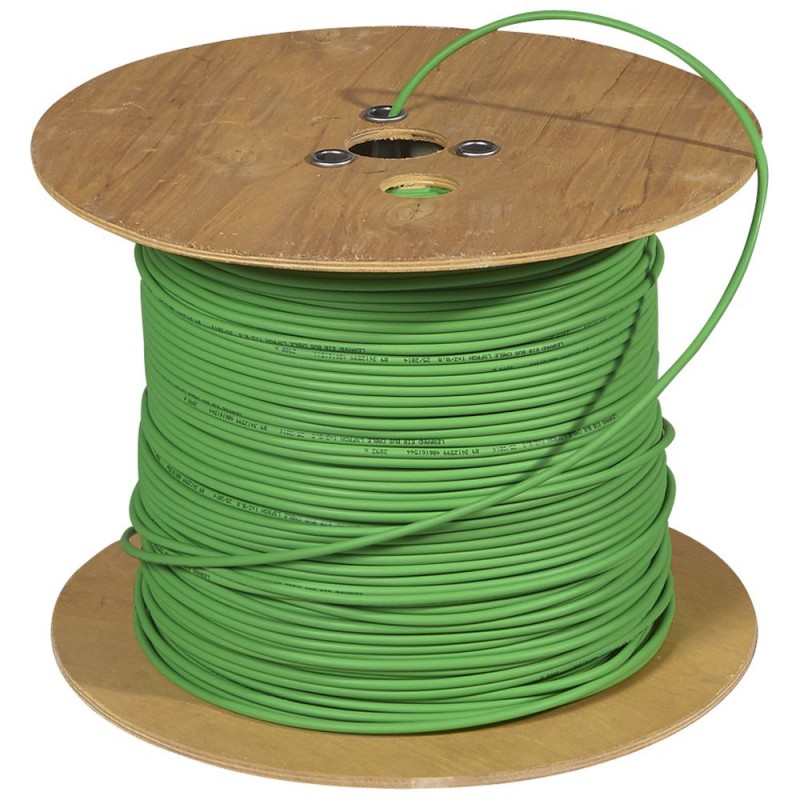

049291 LEGRAND KNX CABLE 500M 1 PAIR
049291
LEGRAND
KNX CABLE 500M 1 PAIR
KNX cable 1 pair - 500 m
Cables > Power cable >= 1 kV, for permanent installation
AUTOMATION, CONTROL AND KNX CONTROL
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲| Conductor Material | copper |
|---|---|
| Conductor surface | Uncovered |
| Nominal Conductor Section | 0.8 mm² |
| Conductor Diameter | 0.5 mm |
| Driver Class | Class 2 = multi-strand rigid |
| Number of wires per conductor | 1 |
| Conductor resistance at 20°C | 10000 Ohm/km |
| Conductor design | Round |
| Number of threads | 2 |
| Conductor insulation material | Other |
| Type of driver identification | Colour |
| Filling material | Yes |
| Fiber Optic Elements | No |
| With protective conductor | No |
| Screen | Yes |
| Drainage thread | Yes |
| Lead cover | No |
| Number of Auxiliary Conductors | 0 |
| Concentric conductor | copper |
|---|---|
| Concentric nominal conductor cross-section | 0.5 mm² |
| Cover material | Other |
| Deck Material Specification | Other |
| Outer Cover Color | Green |
| Cable geometry | Round |
| Low smoke emission according to EN IEC 61034-2 | Yes |
| Halogen-free according to IEC 60754-1 | Yes |
| Halogen-free according to EN IEC 60754-2 | Yes |
| Approximate cable width | 5.5 mm |
| Approximate cable height | 5.5 mm |
| Outer diameter approx. | 5.5 mm |
| Allowable Outside Cable Temperature During Wiring/Handling | -25-70 °C |
| Permissible ambient temperature of the cable after assembly without vibration | -25-70 °C |
| Assigned voltage U0 | 2.5 kV |
| Assigned voltage U | 4 kV |
| Suitable for underground installation | No |
| Suitable as an installation cable | Yes |
| Feature Name | Feature Value |
|---|---|
| Halogen free according to EN IEC 60754-2 (EF003792) | Yes |
| Cable height approx. (EF003797) | 5.5 mm |
| Number of pilot/reduced conductors (EF001697) | 0 |
| Concentric conductor (EF003795) | Copper |
| Cable width approx. (EF003796) | 5.5 mm |
| Conductor surface (EF010804) | Bare |
| Nominal cross section concentric conductor (EF001800) | 0.5 mm² |
| Shape of conductor (EF001620) | Round |
| Specification material outer sheath (EF011806) | Other |
| Colour outer sheath (EF001618) | Green |
| Number of strands per conductor (EF017357) | 1 |
| Conductor resistance at 20 °C (EF013551) | 10000 Ohm/km |
| Low smoke according to EN IEC 61034-2 (EF003799) | Yes |
| Nominal voltage U (EF001615) | 4 kV |
| Nominal voltage U0 (EF001790) | 2.5 kV |
| Number of cores (EF001792) | 2 |
| Screen (EF001791) | Yes |
| Core identification (EF000067) | Colour |
| Material core insulation (EF000061) | Other |
| Nominal cross section conductor (EF000060) | 0.8 mm² |
| Halogen free according to EN IEC 60754-1 (EF016498) | Yes |
| Conductor material (EF001622) | Copper |
| Diameter conductor (EF001621) | 0.5 mm |
| Lead sheath (EF001027) | No |
| Suitable for underground installation (EF003689) | No |
| Drain wire (EF001029) | Yes |
| Outer diameter approx. (EF003921) | 5.5 mm |
| Material outer sheath (EF001625) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -25 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -25 °C |
| With protective conductor (EF007468) | No |
| Suitable as installation cable (EF013771) | Yes |
| Cable geometry (EF013532) | Round |
| Conductor category (EF001632) | Class 2 = stranded |
| Laminated sheath (EF001637) | Yes |
| Fibre optic elements (EF001638) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 049291 EN_049291.pdf | 371 Kbytes |
 |
