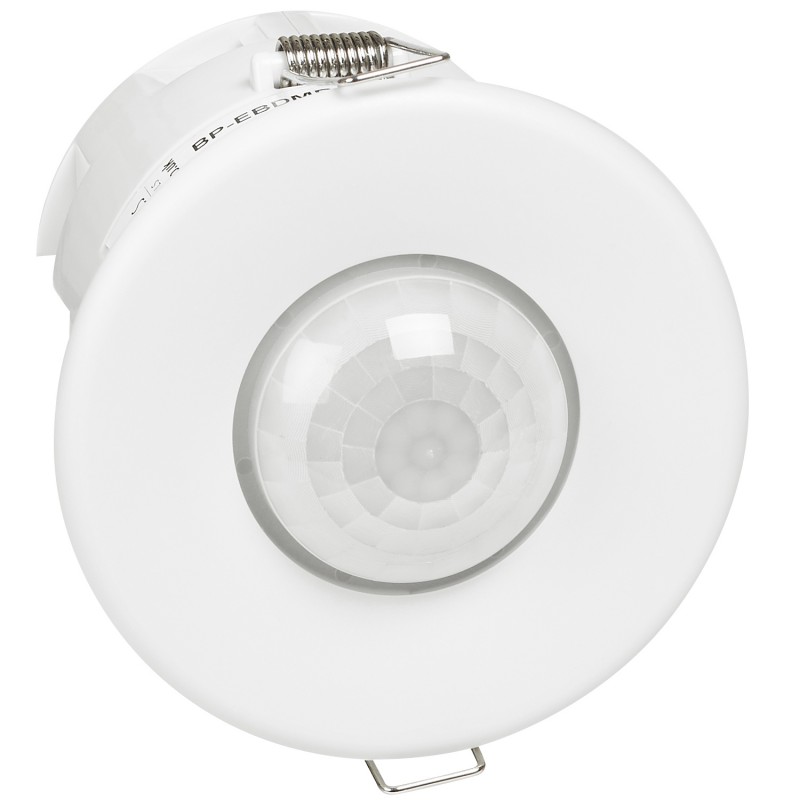

LEGRAND 048969 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

048969 LEGRAND PIR DETECTOR 360º AL:15M 1-10V

Code: 048969

Manufacturer: LEGRAND

Description:

PIR DETECTOR 360º AL:15M 1-10V
PIR Detector 360º 1-10V
PIR Detector 360º 1 - 10V

Categories:

  • Domestic switching devices > Movement sensor complete
  • LEGRAND > AUTONOMOUS LIGHTING MANAGEMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 154,22 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Overview

Mid-range standalone lighting sensor 1-10 V for large workspaces. It continuously checks the presence and level of natural light to optimize lighting control.

Product features
  • 360° infrared detection
  • Reach Ø15m
  • Dimming lighting control 1V to 10V (10 ballasts max.)
  • 10A ON/OFF output
  • IP40

Highlights

Advantages in installation
  • Manual control possible by pushbutton.
Advantages in use
  • Can be used with push-button ref.0770 40 for absence mode (manual start and manual or automatic stop)

specifications

ModelPresence detector
Sensor TypePassive Infrared
With DALI interfaceNo
Constant light dimmingYes
Control de HVACNo
Forced disconnectionYes
Animal ZoneNo
Creep Protection/Field MonitoringNo
Background monitoringNo
NetworkableNo
Optimal mounting height2.8 m
Stair Lighting ControllerYes
Bypass switchNo
Side reach7.5 m
Detection field presence max.2.5 m²
Front Reach7.5 m
Ground Sensing Diameter15 m
Suitable for wireless streamingNo
Remote controlYes
With remote controlYes
Adjustable response sensitivityYes
Adjustable response brightnessYes
With signalling unitNo
Learn function for responsive brightnessNo
Control function with control insertYes
Type of mountingRecessed mounted (plaster)
Suitable for ceiling mountingYes
Suitable for wall mountingNo
Connection MethodScrew-on terminal
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentNo treatment
Surface FinishMate
Antibacterial treatmentNo
ColourWhite
RAL number (similar)9002
TransparentNo
Protection Class (IP)IP40
Impact resistanceIK05
Type of voltageAC
frequency50-50 Hz
Nominal Voltage230-230 V
Minimum duty cycle0.5 s
Maximum duty cycle99 min
Shutdown delay10 s
Power-on delay1 sec
Horizontal detection angle360-360 °
Sensor swivel angle, horizontal0-0 °
Sensor swivel angle, vertical0-0 °
Response brightness0-2000 lx
Max. switching power2300 W
Suitable for C-loadNo
Temperature-10-30 °C
Number of switching zones1
Maximum starting current80 A
Control current3.147826087 mA
Input ExtensionsYes
Alarm functionNo
With acoustic sensorNo
Width76 mm
Depth77 mm
Diameter76 mm
Mounting Diameter65 mm
With connection cableNo
Connection cable length0 mm
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Compatible IFTTTNo
Operating Temperature-10-30 °C
Storage temperature-10-50 °C
Standby consumption3.52173913 mA
Neutral MandatoryYes
Display of markings on the connection terminalsYes
Terminal capacity2.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Label Space/Print AreaNo
Tube diameter for wall-mounted product64-64 mm
Maximum cable entry diameter2.5 mm
Type of cable entry feedthroughsNot applicable
Circuit breakerYes

ETIM for 048969 Domestic wiring accessories and controls (EC000133)

Feature nameWith remote control (EF000483)
Feature valueYes
Feature nameBridging switch (EF001099)
Feature valueNo
Feature nameSuitable for ceiling mounting (EF021180)
Feature valueYes
Feature nameStaircase light controller (EF001098)
Feature valueYes
Feature nameConnection type (EF000124)
Feature valueScrewed terminal
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameMin. switch-on time (EF006589)
Feature value0.5 s
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameDetection angle horizontal (EF006582)
Feature value360 °
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameNetworkable (EF003904)
Feature valueNo
Feature nameResponse value sensitivity adjustable (EF003429)
Feature valueYes
Feature nameRAL-number (similar) (EF003882)
Feature value9002
Feature nameAnimal zone (EF006311)
Feature valueNo
Feature nameModel (EF000010)
Feature valuePresence detector
Feature nameWith alarm function (EF005624)
Feature valueNo
Feature nameOptimum mounting height (EF008011)
Feature value2.8 m
Feature nameMax. duty cycle (EF006590)
Feature value99 min
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK05
Feature nameWith acoustic sensor (EF017675)
Feature valueNo
Feature nameBackground monitoring (EF017674)
Feature valueNo
Feature nameMax. starting current (EF001732)
Feature value80 A
Feature nameConnection cable length (EF003636)
Feature value0 mm
Feature nameDepth (EF000049)
Feature value77 mm
Feature nameTemperature (EF001731)
Feature value-10 °C
Feature nameSubstation input (EF003876)
Feature valueYes
Feature nameSuitable for C-load (EF003832)
Feature valueNo
Feature nameColour (EF000007)
Feature valueWhite
Feature nameWidth (EF000008)
Feature value76 mm
Feature nameWith connection cable (EF005036)
Feature valueNo
Feature nameWith signal unit (EF003890)
Feature valueNo
Feature nameSuitable for wireless transmission (EF001198)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP40
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameResponse value luminosity adjustable (EF007575)
Feature valueYes
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameControl current (EF003894)
Feature value3.147826087 mA
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMax. presence range (EF012569)
Feature value2.5 m²
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameDim function with dimmer basic element (EF003808)
Feature valueYes
Feature nameMax. switching power (EF001503)
Feature value2300 W
Feature nameForced switch off (EF003920)
Feature valueYes
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameDiameter reach on floor (EF003843)
Feature value15 m
Feature nameFrequency (EF000416)
Feature value50 Hz
Feature nameRemote operation (EF003848)
Feature valueYes
Feature nameSwitch-off delay (EF000194)
Feature value10 s
Feature namePivoting range sensor, vertical (EF009567)
Feature value0 °
Feature nameConstant light control (EF003863)
Feature valueYes
Feature nameDiameter (EF000551)
Feature value76 mm
Feature namePivoting range sensor, horizontal (EF009566)
Feature value0 °
Feature nameWith DALI interface (EF009569)
Feature valueNo
Feature nameNominal voltage (EF005127)
Feature value230 V
Feature nameMax. reach sideways (EF001323)
Feature value7.5 m
Feature nameNumber of switching zones (EF009568)
Feature value1
Feature nameMax. reach frontally (EF001322)
Feature value7.5 m
Feature nameSwitching-on delay (EF000193)
Feature value1 s
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameSuitable for wall mounting (EF000664)
Feature valueNo
Feature nameCreep-under protection (EF000147)
Feature valueNo
Feature nameTeach-function for response value luminosity (EF003898)
Feature valueNo
Feature nameBuilt-in diameter (EF000943)
Feature value65 mm
Feature nameResponse value luminosity (EF003814)
Feature value0 lx
Feature nameHVAC-control (EF003858)
Feature valueNo
