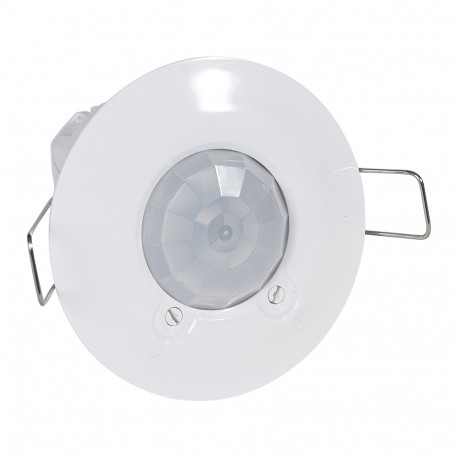

048941 LEGRAND PIR DETECTOR 360 ° FLUSH mount
048941
LEGRAND
PIR DETECTOR 360 ° FLUSH mount
360° motion sensor - IP41 - 8 m - flush ceiling-mounting - PIR technology - cardboard
PIR 360º detector - 8m range - ceiling recessed installation
Domestic switching devices > Movement sensor complete
AUTONOMOUS LIGHTING MANAGEMENT
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Energy efficiency solution
- Pack (number of units)1
- Volume (dm3)0.945
- Weight (g)132.00
PIR IP 20 ceiling-mounting motion sensor, 360°
- Cardboard
- Range Ø8 m
- Recommended fixing height: 2.5 m
- 3-wire with neutral
- Light level threshold: 10 to 1275 lux
- Adjustable time delay: 10 s to 10 min
- Standby consumption: 0.75 W
- Optimum distance between 2 sensors: 6 m
- Fixes directly to a false ceiling with mounting claws (included) or installed in a Batibox box, depth 50 mm
- Automatic on/off
- Manual adjustment of light level threshold and time delay via potentiometer
| Feature Name | Feature Value |
|---|---|
| With remote control (EF000483) | No |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Flush mounted |
| Min. switch-on time (EF006589) | 10 s |
| Compatible with Apple HomeKit (EF014925) | No |
| Detection angle horizontal (EF006582) | 360 ° |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Networkable (EF003904) | No |
| Response value sensitivity adjustable (EF003429) | Yes |
| RAL-number (similar) (EF003882) | 9003 |
| Animal zone (EF006311) | No |
| Model (EF000010) | Presence detector |
| With alarm function (EF005624) | No |
| Optimum mounting height (EF008011) | 2.5 m |
| Max. duty cycle (EF006590) | 10 min |
| Anti-bacterial treatment (EF023790) | No |
| With acoustic sensor (EF017675) | No |
| Background monitoring (EF017674) | No |
| Connection cable length (EF003636) | 0 mm |
| Temperature (EF001731) | -5 °C |
| Colour (EF000007) | White |
| With connection cable (EF005036) | No |
| Suitable for wireless transmission (EF001198) | Yes |
| Degree of protection (IP) (EF005474) | IP41 |
| Material (EF002169) | Plastic |
| Response value luminosity adjustable (EF007575) | Yes |
| Surface finishing (EF006569) | Glossy |
| Halogen free (EF000025) | Yes |
| Transparent (EF006243) | No |
| Dim function with dimmer basic element (EF003808) | Yes |
| Forced switch off (EF003920) | Yes |
| Surface protection (EF000139) | Other |
| Diameter reach on floor (EF003843) | 8 m |
| Frequency (EF000416) | 50 Hz |
| Remote operation (EF003848) | Yes |
| Constant light control (EF003863) | Yes |
| With DALI interface (EF009569) | No |
| Nominal voltage (EF005127) | 230 V |
| Max. reach sideways (EF001323) | 8 m |
| Number of switching zones (EF009568) | 2 |
| Max. reach frontally (EF001322) | 8 m |
| IFTTT support available (EF011072) | No |
| Creep-under protection (EF000147) | Yes |
| Teach-function for response value luminosity (EF003898) | Yes |
| Response value luminosity (EF003814) | 10 lx |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 048941 EN_048941.pdf | 947 Kbytes |
 |
