LEGRANDAUTONOMOUS LIGHTING MANAGEMENT048822 LEGRAND DETECTOR SCS DUAL 360°, 90M2 EM

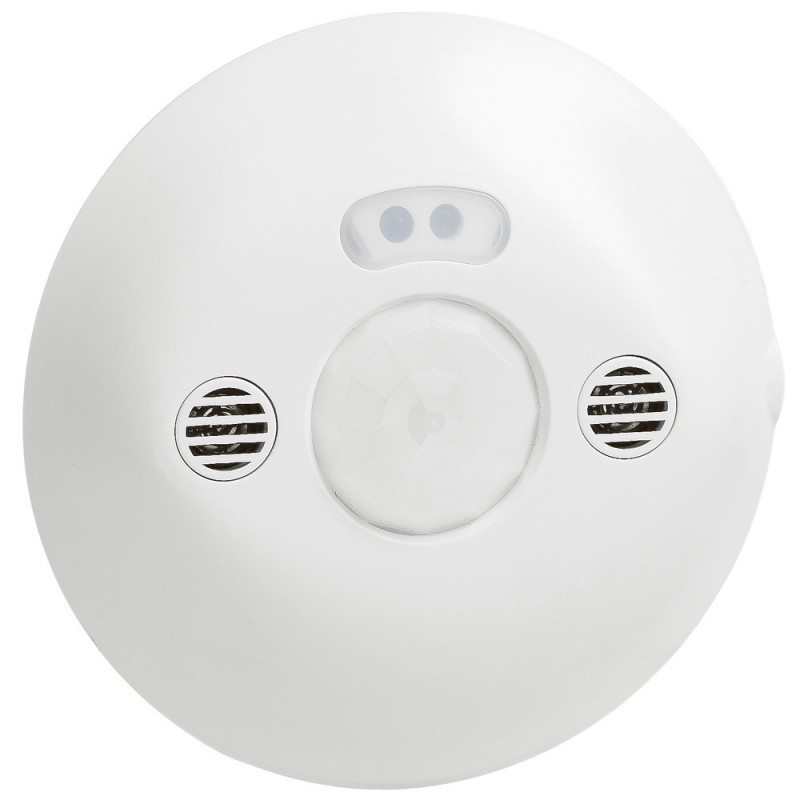

LEGRAND 048822 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

048822 LEGRAND DETECTOR SCS DUAL 360°, 90M2 EM

Code: 048822

Manufacturer: LEGRAND

Description:

DETECTOR SCS DUAL 360°, 90M2 EM
Lighting management--wall mounting-DT-360°-for 93 m² areas - flush mounting
BUS/SCS detector for lighting management. Mosaic - false ceiling - IR/US - 90m²

Categories:

  • Domestic switching devices > Sensor element for movement sensor
  • LEGRAND > AUTONOMOUS LIGHTING MANAGEMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

  • Energy efficiency solution
  • Pack (number of units)1
  • Volume (dm3)1.563
  • Weight (g)235.00
Product characteristics
Ideal for working areas
Dual technology ceiling-mounting Lighting Management sensor, 360°
  • Infrared and ultrasonic detection, range Ø8 m
  • Recommended fixing height: 2.50 m
  • IP 20
  • Optimum distance between 2 sensors: 6 m
  • Consumption: 0.5 W on standby
  • Fixes directly to a false ceiling with mounting claws (included) or installed in a Batibox box, depth 50 mm
  • Can be surface-mounted on ceiling using accessory Cat. No 0 488 75
General characteristics
Lighting Management sensors for managing several circuits - Lighting Management sensors for controllers for passage areas and working areas with natural light
  • Check presence and light level continuously, switch off when there is sufficient natural light
  • Automatic switch-on/off (factory setting)
  • Precise on-site adjustment using configuration tool
  • Connect to controllers by cord or RJ 45 cable or BUS/SCS cable to be fitted with RJ 45 connector Cat.No 0 488 72

ETIM for 048822 Domestic wiring accessories and controls (EC000138)

Feature nameSuitable for wireless transmission (EF001198)
Feature valueNo
Feature nameStaircase light controller (EF001098)
Feature valueYes
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameResponse value luminosity adjustable (EF007575)
Feature valueYes
Feature nameMounting height (EF003874)
Feature value2.5 m
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMin. switch-on time (EF006589)
Feature value30 s
Feature nameCombination movement sensor/push button switch (EF016109)
Feature valueNo
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameDetection angle horizontal (EF006582)
Feature value0 °
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameDim function with dimmer basic element (EF003808)
Feature valueNo
Feature nameDiameter reach on floor (EF003843)
Feature value8 m
Feature nameNetworkable (EF003904)
Feature valueYes
Feature nameResponse value sensitivity adjustable (EF003429)
Feature valueYes
Feature nameRAL-number (similar) (EF003882)
Feature value9003
Feature nameOperation mode switch (EF004530)
Feature valueNo
Feature nameModel (EF000010)
Feature valueMovement sensor
Feature nameAnimal zone (EF006311)
Feature valueNo
Feature nameConstant light control (EF003863)
Feature valueYes
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP20
Feature nameMax. reach sideways (EF001323)
Feature value4 m
Feature nameMax. duty cycle (EF006590)
Feature value256 min
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameCreep-under protection (EF000147)
Feature valueYes
Feature nameColour (EF000007)
Feature valueWhite
Feature nameTeach-function for response value luminosity (EF003898)
Feature valueNo
Feature nameHVAC-control (EF003858)
Feature valueNo

DATASHEET - PDF

Title
Size
Type
048822 EN_048822.pdf
476 Kbytes
