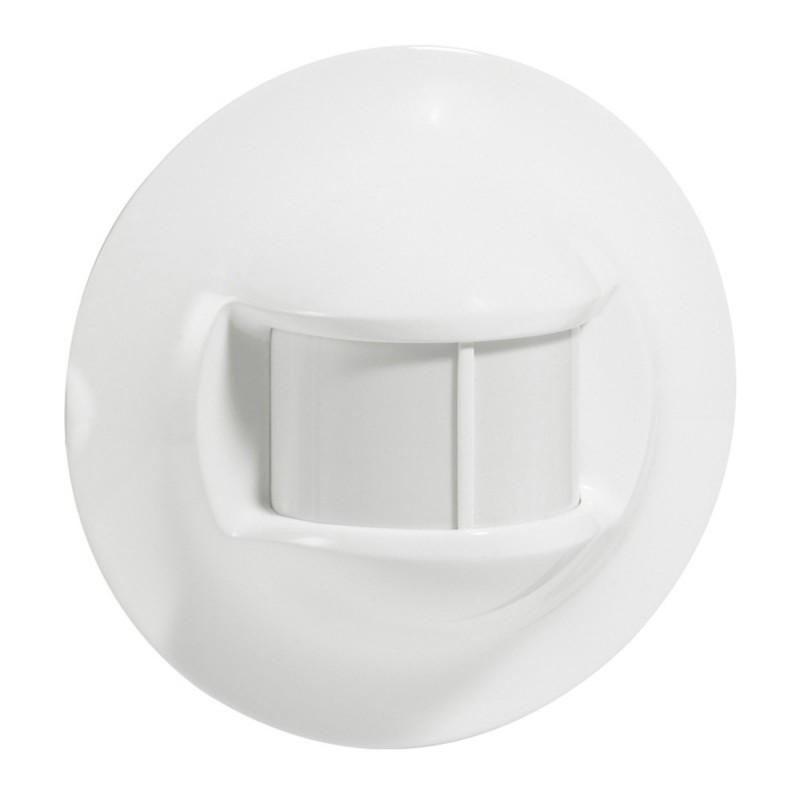

048817 LEGRAND PIR DETECTOR 360 ° 90M2 EMP
048817
LEGRAND
PIR DETECTOR 360 ° 90M2 EMP
360° ceiling sensor - 90 m² - PIR technology - 8.5 A - 240 V - fast connection
360º PIR detector - range 2x12m - recessed/ceiling installation
Domestic switching devices > Movement sensor complete
AUTONOMOUS LIGHTING MANAGEMENT
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲- Energy efficiency solution
- Pack (number of units)1
- Volume (dm3)1.563
- Weight (g)248.00
PIR ceiling-mounting Lighting Management sensors, 360°
- Fix directly to a false ceiling with mounting claws (included) or installed in a Batibox box, depth 50 mm, Cat.No 0 893 58
- 3-wire with neutral
- Standby consumption: 0.4 W
- Recommended fixing height: 2.5 m
- Lateral detection 24 m
- Ideal for hallway, side range 2 x 12 m
- IP 20
- Optimum distance between 2 sensors: 20 m
- Connection via automatic terminals
- Surface mounted on ceiling using accessory Cat.No 0 488 75
- Check presence and natural light level continuously, switch off when there is sufficient natural light
- Occupancy mode (automatic switch-on/off factory setting)
- Can be used with push-button Cat.No 0 770 40 (or illuminated push-button Cat.No 0 770 33) for vacancy mode (manual switch-on and manual or automatic switch-off)
- Precise on-site adjustment using configuration tool Cat.No 0 882 30
- Adjustable time delay: 5 s to 59 min
- Light level threshold adjustable from 5 to 1275 lux
| Feature Name | Feature Value |
|---|---|
| Bridging switch (EF001099) | Yes |
| Staircase light controller (EF001098) | Yes |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Flush mounted |
| Min. switch-on time (EF006589) | 5 s |
| Compatible with Apple HomeKit (EF014925) | No |
| Detection angle horizontal (EF006582) | 0 ° |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Networkable (EF003904) | No |
| Response value sensitivity adjustable (EF003429) | Yes |
| RAL-number (similar) (EF003882) | 9003 |
| Animal zone (EF006311) | No |
| Model (EF000010) | Movement sensor |
| With alarm function (EF005624) | Yes |
| Optimum mounting height (EF008011) | 2.5 m |
| Max. duty cycle (EF006590) | 59 min |
| Anti-bacterial treatment (EF023790) | No |
| With acoustic sensor (EF017675) | No |
| Background monitoring (EF017674) | No |
| Max. starting current (EF001732) | 8.5 A |
| Connection cable length (EF003636) | 0 mm |
| Temperature (EF001731) | -5 °C |
| Substation input (EF003876) | Yes |
| Colour (EF000007) | White |
| With connection cable (EF005036) | No |
| With signal unit (EF003890) | Yes |
| Suitable for wireless transmission (EF001198) | No |
| Degree of protection (IP) (EF005474) | IP20 |
| Material (EF002169) | Plastic |
| Response value luminosity adjustable (EF007575) | Yes |
| Voltage type (EF000187) | AC |
| Surface finishing (EF006569) | Glossy |
| Transparent (EF006243) | No |
| Dim function with dimmer basic element (EF003808) | No |
| Max. switching power (EF001503) | 2000 W |
| Forced switch off (EF003920) | No |
| Surface protection (EF000139) | Untreated |
| Diameter reach on floor (EF003843) | 24 m |
| Frequency (EF000416) | 50 Hz |
| Remote operation (EF003848) | Yes |
| Constant light control (EF003863) | Yes |
| Nominal voltage (EF005127) | 230 V |
| Max. reach sideways (EF001323) | 12 m |
| Max. reach frontally (EF001322) | 3 m |
| IFTTT support available (EF011072) | No |
| Creep-under protection (EF000147) | Yes |
| Teach-function for response value luminosity (EF003898) | No |
| Response value luminosity (EF003814) | 5 lx |
| HVAC-control (EF003858) | No |
