LEGRANDAUTONOMOUS LIGHTING MANAGEMENT048804 LEGRAND PIR DETECTOR 360º ALCAN:8M 3H
LEGRAND 048804 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

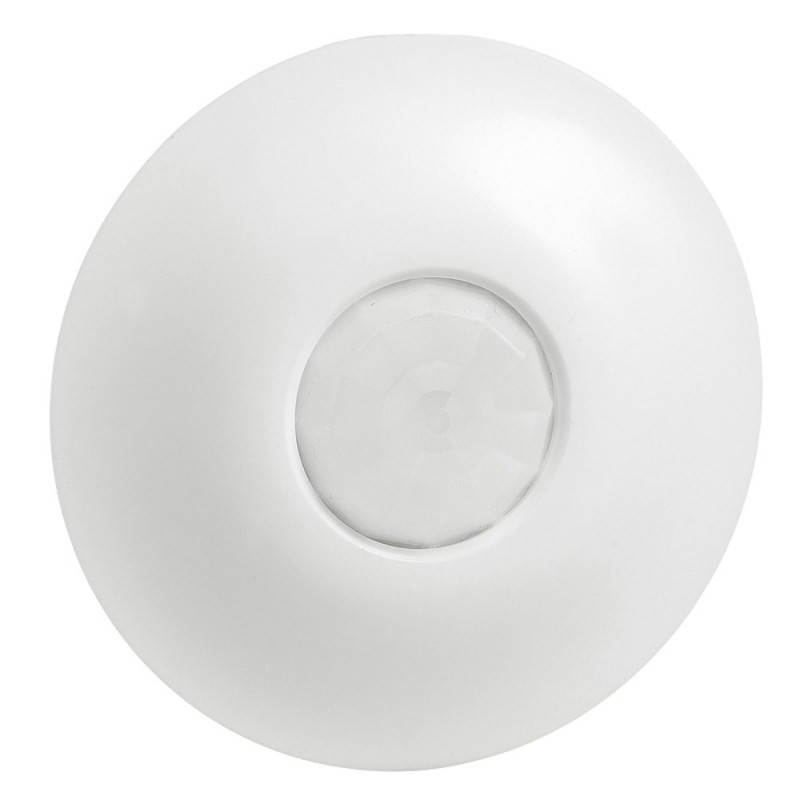

048804 LEGRAND PIR DETECTOR 360º ALCAN:8M 3H

Code: 048804

Manufacturer: LEGRAND

Description:

PIR DETECTOR 360º ALCAN:8M 3H
PIR DETECTOR 360 ° ALCAN:8M 3H
360° switch sensor Mosaic - PIR - Ø 8 m - with 2 A contact for HVAC- white
360º PIR detector - 8m range - recessed/ceiling installation

Categories:

  • Domestic switching devices > Movement sensor complete
  • LEGRAND > AUTONOMOUS LIGHTING MANAGEMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 146,78 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Energy efficiency solution
  • Pack (number of units)1
  • Volume (dm3)1.563
  • Weight (g)268.00
Product characteristics
Ideal for offices
PIR ceiling-mounting Lighting Management sensor, 360°
  • Range Ø8 m
  • 3-wire with neutral
  • Optimum distance between 2 sensors: 6 m
  • Standby consumption: 0.8 W
  • Fix directly to a false ceiling with mounting claws (included) or installed in a Batibox box, depth 50 mm
  • Can be surface-mounted in ceiling using accessory Cat.No 0 488 75
  • With an additional 2 A contact for HVAC control, based on presence data
General characteristics
Lighting Management sensors for 1 circuit - Lighting Management sensors for working areas with natural light
  • Check presence and light level continuously, switch off when there is sufficient natural light
  • Occupancy mode (automatic switch-on/off factory setting)
  • Can be used with push-button Cat.No 0 770 40 (or illuminated push-button Cat.No 0 770 33) for vacancy mode (manual switch-on and manual or automatic switch-off)
  • Infrared and ultrasonic Lighting Management sensors for workplaces, allowing precise presence detection as soon as the wave transmitted by the sensor is modified (for example, by hand movement on a keyboard)
  • Precise on-site adjustment using configuration tool

ETIM for 048804 Domestic wiring accessories and controls (EC000133)

Feature nameBridging switch (EF001099)
Feature valueYes
Feature nameStaircase light controller (EF001098)
Feature valueYes
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameMin. switch-on time (EF006589)
Feature value5 s
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameDetection angle horizontal (EF006582)
Feature value0 °
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameNetworkable (EF003904)
Feature valueNo
Feature nameResponse value sensitivity adjustable (EF003429)
Feature valueYes
Feature nameRAL-number (similar) (EF003882)
Feature value9003
Feature nameAnimal zone (EF006311)
Feature valueNo
Feature nameModel (EF000010)
Feature valueMovement sensor
Feature nameWith alarm function (EF005624)
Feature valueYes
Feature nameOptimum mounting height (EF008011)
Feature value2.5 m
Feature nameMax. duty cycle (EF006590)
Feature value59 min
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameWith acoustic sensor (EF017675)
Feature valueNo
Feature nameBackground monitoring (EF017674)
Feature valueNo
Feature nameMax. starting current (EF001732)
Feature value8.5 A
Feature nameConnection cable length (EF003636)
Feature value0 mm
Feature nameTemperature (EF001731)
Feature value-5 °C
Feature nameSubstation input (EF003876)
Feature valueYes
Feature nameColour (EF000007)
Feature valueWhite
Feature nameWith connection cable (EF005036)
Feature valueNo
Feature nameWith signal unit (EF003890)
Feature valueYes
Feature nameSuitable for wireless transmission (EF001198)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameResponse value luminosity adjustable (EF007575)
Feature valueYes
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameSurface finishing (EF006569)
Feature valueGlossy
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameDim function with dimmer basic element (EF003808)
Feature valueNo
Feature nameMax. switching power (EF001503)
Feature value2000 W
Feature nameForced switch off (EF003920)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameDiameter reach on floor (EF003843)
Feature value8 m
Feature nameFrequency (EF000416)
Feature value50 Hz
Feature nameRemote operation (EF003848)
Feature valueYes
Feature nameConstant light control (EF003863)
Feature valueYes
Feature nameNominal voltage (EF005127)
Feature value230 V
Feature nameMax. reach sideways (EF001323)
Feature value4 m
Feature nameMax. reach frontally (EF001322)
Feature value6 m
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameCreep-under protection (EF000147)
Feature valueYes
Feature nameTeach-function for response value luminosity (EF003898)
Feature valueNo
Feature nameResponse value luminosity (EF003814)
Feature value5 lx
Feature nameHVAC-control (EF003858)
Feature valueYes

DATASHEET - PDF

Title
Size
Type
048804 EN_048804.pdf
3 Mbytes
