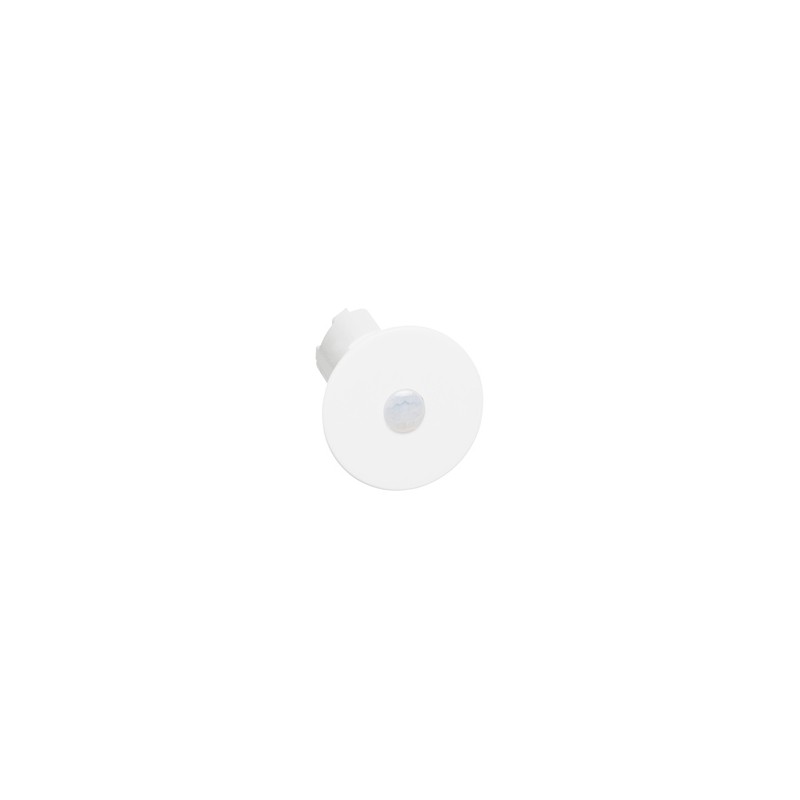

048778 LEGRAND MOTION DETECTOR
048778
LEGRAND
MOTION DETECTOR
PIR movement detector for virtual key-card function Ø20 mm user interface hotel equipment BUS
PIR motion detector dedicated to virtual key card function
Domestic switching devices > Movement sensor complete
HOTEL SOLUTIONS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)0.159
- Weight (g)29.00
- PIR sensor for virtual key-card function
- To be installed in false ceiling
- Ø20 mm
- It detects guest presence and activates room functions
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 38 mm |
| With remote control (EF000483) | No |
| Bridging switch (EF001099) | No |
| Staircase light controller (EF001098) | No |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Flush mounted |
| Networkable (EF003904) | No |
| Response value sensitivity adjustable (EF003429) | No |
| RAL-number (similar) (EF003882) | 9003 |
| Animal zone (EF006311) | No |
| Model (EF000010) | Movement sensor |
| With alarm function (EF005624) | No |
| Optimum mounting height (EF008011) | 2.5 m |
| Anti-bacterial treatment (EF023790) | No |
| With acoustic sensor (EF017675) | No |
| Background monitoring (EF017674) | No |
| Connection cable length (EF003636) | 0 mm |
| Depth (EF000049) | 50 mm |
| Temperature (EF001731) | -5 °C |
| Substation input (EF003876) | No |
| Suitable for C-load (EF003832) | No |
| Colour (EF000007) | White |
| Width (EF000008) | 38 mm |
| With connection cable (EF005036) | No |
| With signal unit (EF003890) | No |
| Suitable for wireless transmission (EF001198) | No |
| Degree of protection (IP) (EF005474) | IP42 |
| Material (EF002169) | Plastic |
| Response value luminosity adjustable (EF007575) | No |
| Voltage type (EF000187) | DC |
| Surface finishing (EF006569) | Glossy |
| Control current (EF003894) | 100 mA |
| Halogen free (EF000025) | Yes |
| Transparent (EF006243) | No |
| Dim function with dimmer basic element (EF003808) | No |
| Max. switching power (EF001503) | 0.3 W |
| Forced switch off (EF003920) | No |
| Surface protection (EF000139) | Untreated |
| Diameter reach on floor (EF003843) | 5 m |
| Frequency (EF000416) | 0 Hz |
| Built-in depth (EF000218) | 47 mm |
| Remote operation (EF003848) | No |
| Constant light control (EF003863) | No |
| With DALI interface (EF009569) | No |
| Nominal voltage (EF005127) | 12 V |
| Number of switching zones (EF009568) | 1 |
| Creep-under protection (EF000147) | No |
| Teach-function for response value luminosity (EF003898) | No |
| Response value luminosity (EF003814) | 0 lx |
| HVAC-control (EF003858) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 048778 EN_048778.pdf | 125 Kbytes |
 |
