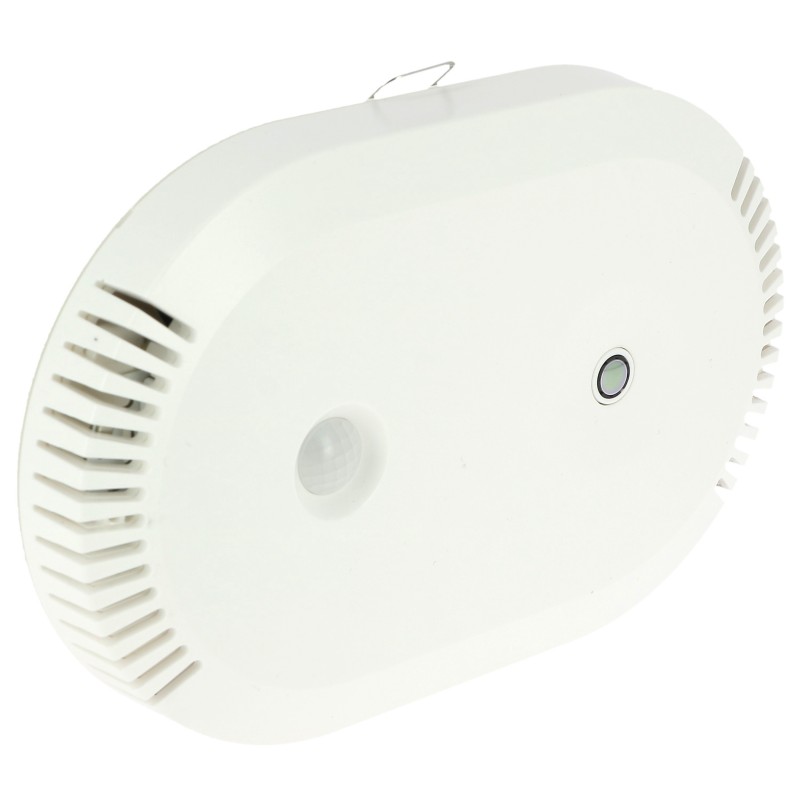

048591 LEGRAND ACTIVITY MULTISENSOR
048591
LEGRAND
ACTIVITY MULTISENSOR
Ceiling Light Up Multi-Sensor Activity
Multisensor Light Up activity
Installation bus systems > Movement sensor for bus system
Home > LEGRAND
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲| KNX bus system | No |
|---|---|
| KNX-RF bus system (radio frequency) | No |
| Radio frequency bus system | No |
| LON Bus System | No |
| Powernet Bus System | No |
| Other bus systems | Other |
| Bidirectional Radio Frequency | Yes |
| Model | Presence detector |
| Type of mounting | Recessed mounted (plaster) |
| Suitable for ceiling mounting | Yes |
| Material | Plastic |
| Material quality | Thermoplastic |
| Surface Finish | Mate |
| Colour | White |
| RAL number (similar) | 9003 |
| Transparent | No |
| With bus connection | No |
| Input Extensions | No |
| Creep Protection/Field Monitoring | No |
| Operation Mode Switch | No |
| Animal Zone | No |
| Stair Lighting Controller | Yes |
| Adjustable response brightness | No |
| Learn function for responsive brightness | No |
| DALI-2 Certified | No |
| Optimal mounting height | 2.5 m |
| Side reach | 8 m |
| Front Reach | 8 m |
| Vertical Detection Angle (Min-Max) | 0-160 ° |
| Horizontal Sensing Angle (Min-Max) | 0-360 ° |
|---|---|
| Number of channels | 0 |
| Width | 103 mm |
| Height | 47.1 mm |
| Depth | 157 mm |
| Installation Depth | 23.1 mm |
| Mounting Diameter | 68 mm |
| Impact resistance | IK04 |
| Protection Class (IP) | IP20 |
| Operating Temperature (Min-Max) | 5-30 °C |
| Storage Temperature (Min-Max) | -20-70 °C |
| Type of voltage | CC |
| Neutral Mandatory | No |
| Halogen-free | Yes |
| Connection Method | Not applicable |
| Addressable | Yes |
| Contains battery and/or accumulator | No |
| IEC Designation | Not applicable |
| Battery or accumulator (Pack1) | Not applicable |
| Connected Object | Yes |
| Method of operation | Net |
| App download platform | App Store, Google Play Store |
| With voice command | No |
| Programmable | Yes |
| Connection Protocol Interoperability | Yes |
| Possibility of connection via Internet box | Yes |
| Programming medium | Web software |
| App Name | Legrand Close-Up |
| Product usage function | Sensor system |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 47.1 mm |
| Suitable for ceiling mounting (EF021180) | Yes |
| Staircase light controller (EF001098) | Yes |
| Bus system LON (EF003831) | No |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Flush mounted |
| Bus system KNX (EF001499) | No |
| Detection angle horizontal (EF006582) | 0 ° |
| Detection angle vertical (EF006581) | 0 ° |
| Bus system KNX-RF (Radio Frequency) (EF008855) | No |
| RAL-number (similar) (EF003882) | 9003 |
| Operation mode switch (EF004530) | No |
| Model (EF000010) | Presence detector |
| Animal zone (EF006311) | No |
| Optimum mounting height (EF008011) | 2.5 m |
| Radio frequency bidirectional (EF009466) | Yes |
| Depth (EF000049) | 157 mm |
| Substation input (EF003876) | No |
| Colour (EF000007) | White |
| Width (EF000008) | 103 mm |
| Material (EF002169) | Plastic |
| Response value luminosity adjustable (EF007575) | No |
| Surface finishing (EF006569) | Matt |
| Transparent (EF006243) | No |
| Bus system Powernet (EF001501) | No |
| Bus system radio frequency (EF001500) | No |
| Number of channels (EF000259) | 0 |
| Built-in depth (EF000218) | 23.1 mm |
| With bus connection (EF001504) | No |
| Max. reach sideways (EF001323) | 8 m |
| Max. reach frontally (EF001322) | 8 m |
| DALI-2 certified (EF016048) | No |
| Creep-under protection (EF000147) | No |
| Teach-function for response value luminosity (EF003898) | No |
| Other bus systems (EF003811) | Other |
| Built-in diameter (EF000943) | 68 mm |
