LEGRAND048556 LEGRAND DALI 3-ZONE CORRIDOR SENSOR

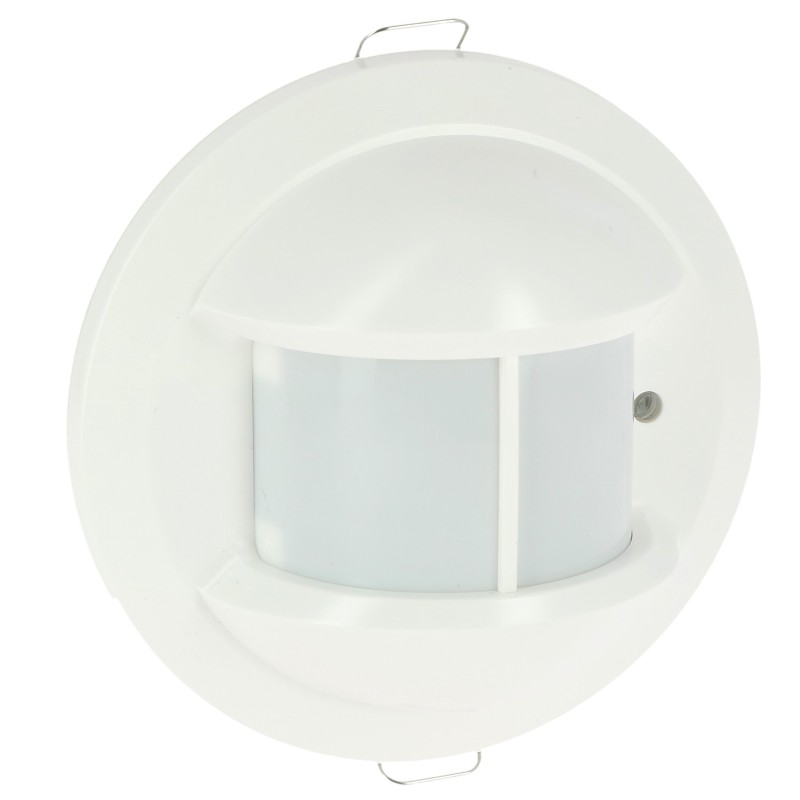

LEGRAND 048556 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

048556 LEGRAND DALI 3-ZONE CORRIDOR SENSOR

Code: 048556

Manufacturer: LEGRAND

Description:

DALI 3-ZONE CORRIDOR SENSOR
DALI 3-zone Light Up Sensor for aisle
DALI 3 zone Light Up Hall Sensor

Categories:

  • Installation bus systems > Movement sensor for bus system
  • LEGRAND

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 299,20 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Flexible range of sensors for all types of applicationsAdapts the lighting to the presence and brightnessWireless master-slave function to expand the detection area by associating a slave detector to the detector connected to the luminairePossibility of combining a battery-free wireless switch (ref. 7 418 13L/43L/73L) and a connected power socket (ref. 7 418 11/41/71)Allows to manage and control 3 different lighting zones depending on daylight (+ function Setting Up with the Close Up App
KNX bus systemNo
KNX-RF bus system (radio frequency)No
Radio frequency bus systemYes
LON Bus SystemNo
Powernet Bus SystemNo
Other bus systemsZigbee
Bidirectional Radio FrequencyYes
ModelPresence detector
Type of mountingRecessed mounted (plaster)
Suitable for ceiling mountingYes
MaterialPlastic
Material qualityThermoplastic
Surface FinishMate
ColourWhite
RAL number (similar)9003
TransparentNo
With bus connectionNo
Input ExtensionsYes
Creep Protection/Field MonitoringNo
Operation Mode SwitchNo
Animal ZoneNo
Stair Lighting ControllerYes
Adjustable response brightnessYes
Learn function for responsive brightnessYes
DALI-2 CertifiedYes
Optimal mounting height2.5 m
Side reach3 m
Front Reach24 m
Horizontal Sensing Angle (Min-Max)0-360 °
Number of channels64
Minimum duty cycle15 seconds
Maximum duty cycle59 min
Width103 mm
Height95.8 mm
Depth103 mm
Diameter103 mm
Installation Depth52.8 mm
Mounting Diameter68 mm
Impact resistanceIK04
Protection Class (IP)IP20
Operating Temperature (Min-Max)-10-30 °C
Storage Temperature (Min-Max)-20-70 °C
Type of voltageAC
Neutral MandatoryYes
Halogen-freeYes
Connection MethodScrew-on terminal
AddressableYes
Contains battery and/or accumulatorNo
IEC DesignationNot applicable
Battery or accumulator (Pack1)Not applicable
Connected ObjectYes
Method of operationZigbee, Phase Cut Activation
App download platformApp Store, Google Play Store
With voice commandNo
ProgrammableYes
Connection Protocol InteroperabilityYes
Possibility of connection via Internet boxNo
App NameLegrand Close-Up
Product usage functionEnergy and lighting management
Programming mediumWeb software

ETIM for 048556 Installation bus systems (EC001582)

Feature nameHeight (EF000040)
Feature value95.8 mm
Feature nameSuitable for ceiling mounting (EF021180)
Feature valueYes
Feature nameStaircase light controller (EF001098)
Feature valueYes
Feature nameBus system LON (EF003831)
Feature valueNo
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameBus system KNX (EF001499)
Feature valueNo
Feature nameMin. switch-on time (EF006589)
Feature value15 s
Feature nameDetection angle horizontal (EF006582)
Feature value0 °
Feature nameBus system KNX-RF (Radio Frequency) (EF008855)
Feature valueNo
Feature nameRAL-number (similar) (EF003882)
Feature value9003
Feature nameOperation mode switch (EF004530)
Feature valueNo
Feature nameModel (EF000010)
Feature valuePresence detector
Feature nameAnimal zone (EF006311)
Feature valueNo
Feature nameOptimum mounting height (EF008011)
Feature value2.5 m
Feature nameMax. duty cycle (EF006590)
Feature value59 min
Feature nameRadio frequency bidirectional (EF009466)
Feature valueYes
Feature nameDepth (EF000049)
Feature value103 mm
Feature nameSubstation input (EF003876)
Feature valueYes
Feature nameColour (EF000007)
Feature valueWhite
Feature nameWidth (EF000008)
Feature value103 mm
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameResponse value luminosity adjustable (EF007575)
Feature valueYes
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameBus system Powernet (EF001501)
Feature valueNo
Feature nameBus system radio frequency (EF001500)
Feature valueYes
Feature nameNumber of channels (EF000259)
Feature value64
Feature nameBuilt-in depth (EF000218)
Feature value52.8 mm
Feature nameWith bus connection (EF001504)
Feature valueNo
Feature nameDiameter (EF000551)
Feature value103 mm
Feature nameMax. reach sideways (EF001323)
Feature value3 m
Feature nameMax. reach frontally (EF001322)
Feature value24 m
Feature nameDALI-2 certified (EF016048)
Feature valueYes
Feature nameCreep-under protection (EF000147)
Feature valueNo
Feature nameTeach-function for response value luminosity (EF003898)
Feature valueYes
Feature nameOther bus systems (EF003811)
Feature valueZigbee
Feature nameBuilt-in diameter (EF000943)
Feature value68 mm
