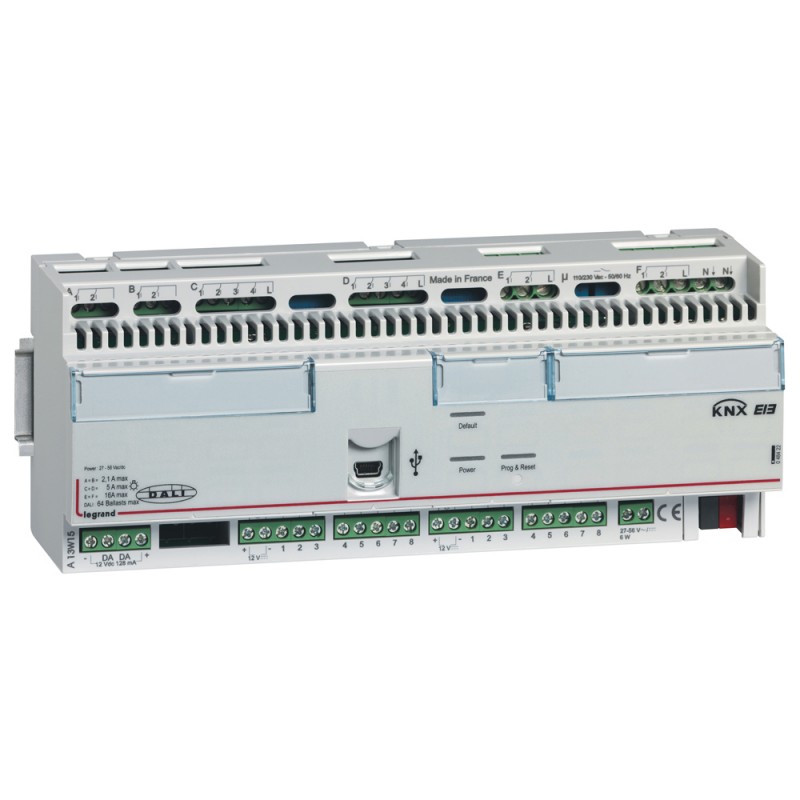

048422 LEGRAND Room Controller KNX12Mod
048422
LEGRAND
Room Controller KNX12Mod
KNX room controller unit Arteor - 16 inputs - 16 outputs - 12 DIN modules
Room Controller KNX 16 inputs / 16 outputs
Installation bus systems > Switch actuator for bus system
DOMOTICS MY HOME
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)1.888
- Weight (g)622.00
- Power modules equipped with output contacts for controlling:
- different types of ON/OFF load (lighting, roller shutters, contactors, motors, etc.)
- a DALI dimming output for 64 ballasts max.
- Loads are managed by the controls to which they are linked: either by BUS/KNX controls, or by wired connection input terminals (switches, push-buttons, volt-free contacts)
- Multiphase connection and consumption measurement
- 16 inputs - 16 outputs
- 12 DIN modules 17.5 mm
- Directly connected to the KNX BUS (supplied with KNX connectors)
- Programming through ETS software
| Feature Name | Feature Value |
|---|---|
| With LED indication (EF005950) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Number of digital inputs (EF001992) | 16 |
| Bus system LON (EF003831) | No |
| Mounting method (EF000003) | DRA (DIN-rail adapter) |
| Bus system KNX (EF001499) | Yes |
| Min. depth of built-in installation box (EF012278) | 66 mm |
| Bus system Powernet (EF001501) | No |
| Bus system radio frequency (EF001500) | No |
| With bus connection (EF001504) | Yes |
| Bus system KNX-RF (Radio Frequency) (EF008855) | No |
| Width in number of modular spacings (EF002950) | 12 |
| Rated operating voltage (EF001435) | 27 V |
| Power consumption (EF000346) | 1 W |
| Other bus systems (EF003811) | None |
| Local operation/hand operation (EF003914) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 048422 EN_048422.pdf | 3 Mbytes |
 |
