LEGRANDACCESSORIES CONTROL AND CONTROL PANELS047024 LEGRAND ALIM FILTR SOURCE 24V 240W 10A

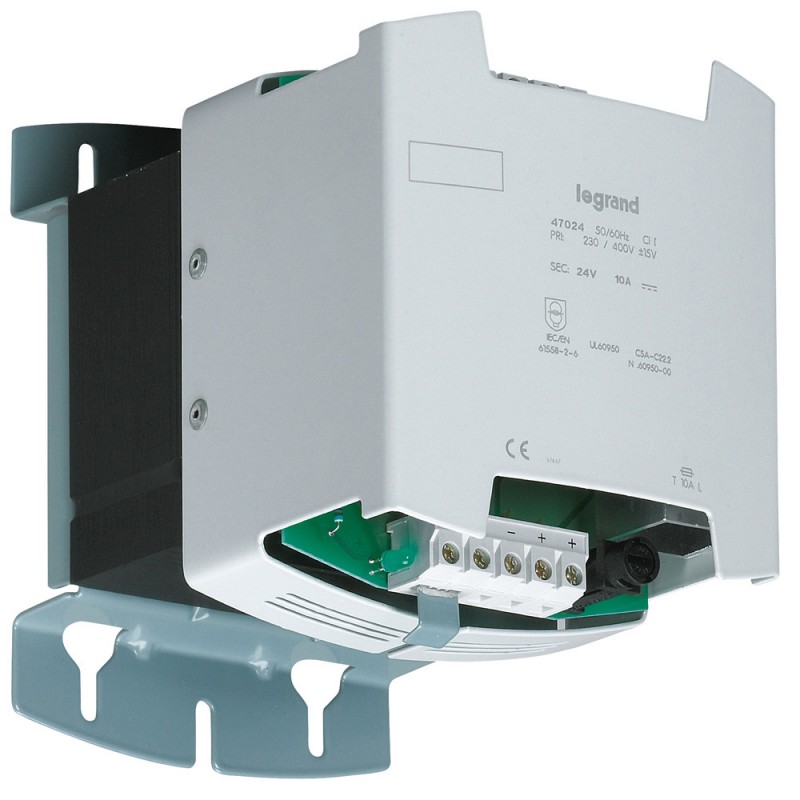

LEGRAND 047024 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

047024 LEGRAND ALIM FILTR SOURCE 24V 240W 10A

Code: 047024

Manufacturer: LEGRAND

Description:

ALIM FILTR SOURCE 24V 240W 10A
SOURCE ALIM FILTR 24V 240W 10A
Legrand Filtered Power Supply Single Phase 230/400V AC 24V DC 10A 240W
Single-phase power supply rectified and filtered - 24V= - 240W- 10A

Categories:

  • Low-voltage industrial components > DC-power supply
  • LEGRAND > ACCESSORIES CONTROL AND CONTROL PANELS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 513,05 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Single phase filtered Filtered power supplies for PLCs and other equipment requiring a voltage of 12 V DC or 24 V DC Include: * twin output terminals for ease of connection * safety transformer with interference filtration * fuse protection on output * green LED output voltage indicator * capacitor in filtered range Supplied with a connection link for quick connection between - up to 15A Fixing options: - clip directly to DIN rail up to 24 W - clip on or screw fixing up to 120 W - screw fixing only above 120 W
Voltage type (supply voltage)AC/DC
1st secondary output voltage24-24 V
Max. output current 110 A
Secondary voltage adjustableNo
Nominal value output voltage 124 V
Nominal value output current 110 A
Short-circuit-proofYes
Rated supply voltage AC 50 Hz230-400 V
Rated supply voltage AC 60 Hz230-400 V
Output voltage stabilizedNo
Power output240 W
StabilizedNo
Type of electric connectionScrew connection
Suitable for rail mountingNo
Suitable for wall mountingYes
Suitable for distribution boardNo
Built-in width175 mm
Direct mounting possibleYes
Width126 mm
Height186 mm
Depth175 mm
Suitable for safety functionsYes

ETIM for 047024 Low-voltage industrial controls and switchgear (EC002540)

Feature namePower output (EF003034)
Feature value240 W
Feature nameHeight (EF000040)
Feature value186 mm
Feature nameWall mounting possible (EF003973)
Feature valueYes
Feature nameSuitable for safety functions (EF001597)
Feature valueYes
Feature nameSuitable for rail mounting (EF003972)
Feature valueNo
Feature nameOutput voltage stabilized (EF003092)
Feature valueNo
Feature nameRated supply voltage AC 50 Hz (EF007076)
Feature value230 V
Feature nameRated supply voltage AC 60 Hz (EF007077)
Feature value230 V
Feature nameShort-circuit-proof (EF007332)
Feature valueYes
Feature nameNominal value output voltage 1 (EF009393)
Feature value24 V
Feature nameMax. output current 1 (EF008284)
Feature value10 A
Feature nameNominal value output current 1 (EF009396)
Feature value10 A
Feature nameModular version (EF001126)
Feature valueNo
Feature nameVoltage type (supply voltage) (EF002991)
Feature valueAC/DC
Feature nameDirect mounting possible (EF005689)
Feature valueYes
Feature nameStabilized (EF005302)
Feature valueNo
Feature nameType of electric connection (EF003961)
Feature valueScrew connection
Feature name1st secondary output voltage (EF006792)
Feature value24 V
Feature nameSecondary voltage adjustable (EF007002)
Feature valueNo
Feature nameDepth (EF000049)
Feature value175 mm
Feature nameWidth (EF000008)
Feature value126 mm
Feature nameBuilt-in width (EF000846)
Feature value175 mm

DATASHEET - PDF

Title
Size
Type
047024 EN_047024.pdf
137 Kbytes
