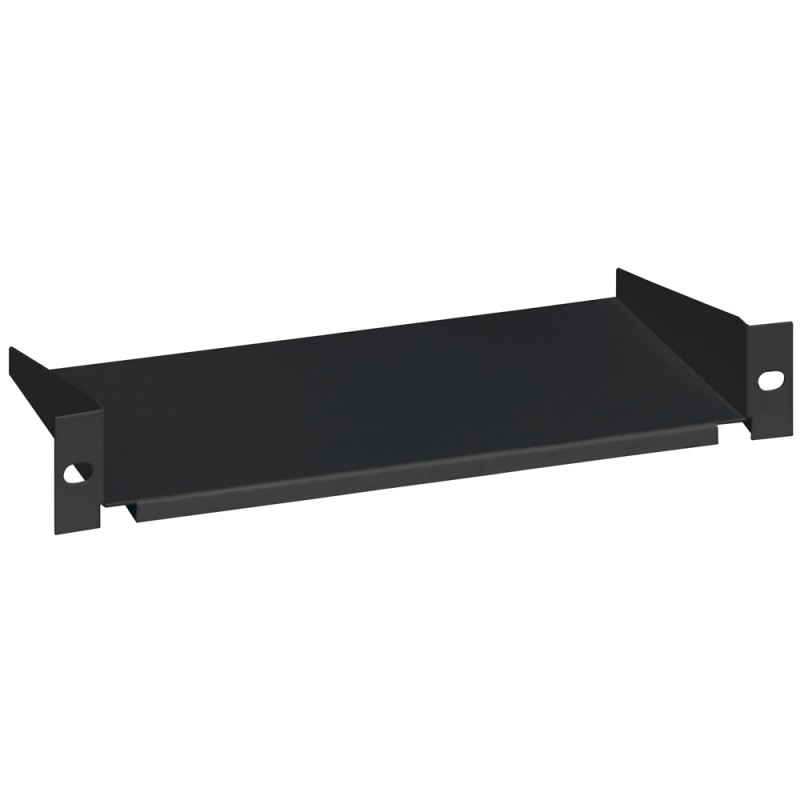

046223 LEGRAND VDI TRAY FIXED 10" D 120
046223
LEGRAND
VDI TRAY FIXED 10" D 120
Fixed shelf - for 10'' cabinet - 1 U - depth 120 mm
Fixed tray 1U Maximum load 10Kg Prof. 120mm for Linkeo 10" wall cabinet
Cabinet enclosures > Component for installation (switchgear cabinet)
ENCLOSURES
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)3.218
- Weight (g)450.00
Panels and shelves
- Fixed shelf 1 U
- Depth 120 mm
- Max. load. 10 kg
- Black RAL 9005
- Supplied with screws and cage nuts
- IP 20 - IK 08
- Equipped with:
- 1 reversible door made of screen-printed safety glass and with integrated lock
- 2 x 19'' uprights with U marking and adjustable in depth
- 3 pre-cut cable entries (top, bottom and rear). 1 brush for a cable entry. Top perforations for natural ventilation
- panels with automatic grounding (ready assembled version)
- earthing kit (flatpack version)
- Anthracite grey RAL 7016
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 43 mm |
| Model (EF000010) | Other |
| Material (EF002169) | Metal |
| Depth (EF000049) | 120 mm |
| Colour (EF000007) | Black |
| Suitable for enclosure building width (EF000326) | 254 mm |
| RAL-number (EF000116) | 9005 |
| Width (EF000008) | 254 mm |
| Suitable for enclosure building depth (EF000327) | 120 mm |
| Suitable for enclosure building height (EF009583) | 44.45 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 046223 EN_046223.pdf | 367 Kbytes |
 |
