LEGRANDSUPERVISION AND ENERGY MEASUREMENT043511 LEGRAND CPI WALL STATUS REPORT

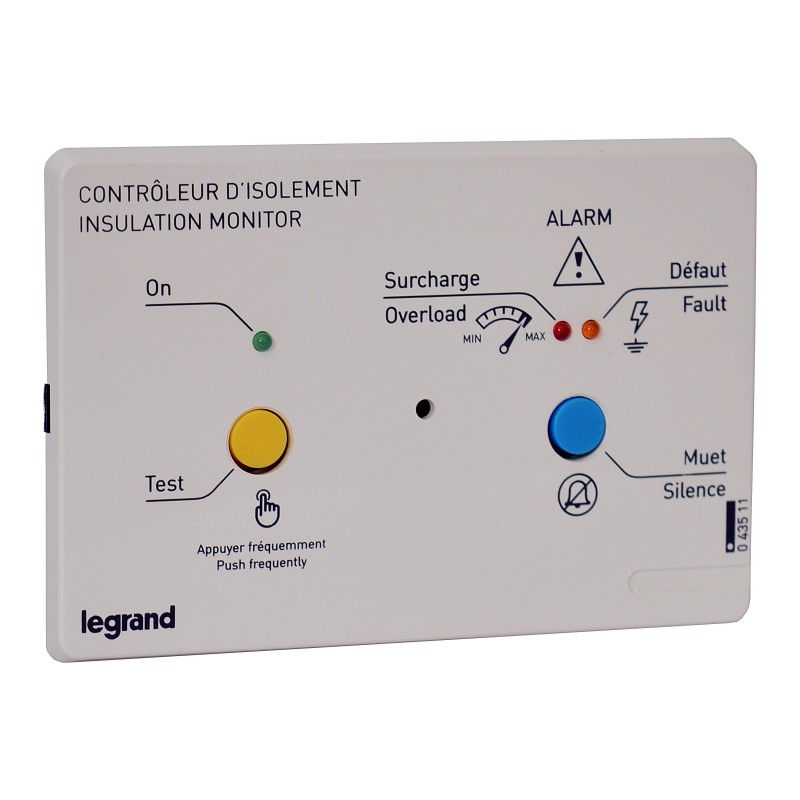

LEGRAND 043511 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

043511 LEGRAND CPI WALL STATUS REPORT

Code: 043511

Manufacturer: LEGRAND

Description:

CPI WALL STATUS REPORT
STATUS REPORT MURAL ICC
Remote panels for insulation monitoring device (IMD) - for flush-mounted installation - 24 or 230 V~
Central wall status report

Categories:

  • Relays > Insulation and earth fault monitoring relay
  • LEGRAND > SUPERVISION AND ENERGY MEASUREMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 175,52 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)1.554
  • Weight (g)200.00
Product characteristics
Remote panels for insulation monitoring device (IMD)
  • Connected to the IMD unit with cable Cat.No 3 369 04 for alarm report
  • LED indicator and audible signal for the state of IT network
  • STOP button for audible signal
  • TEST button for insulation monitoring in compliance with IEC 60364-7-710 standard
  • Up to 5 remote panels per IMD
  • Manual addressing (using dip switches)
For flush-mounted installation
  • Supplied with flush-mounting box for masonry
  • Can also be installed in flush-mounting box for dry partitions Cat.No PB503
  • 3 x 22.5 mm modules
  • 230 V or 24 V~
General characteristics
Insulation monitoring device (IMD) - for IT earthing system in medical environment
  • Used to permanently monitor the insulation level of the IT earthing system, in compliance with installation standard IEC 60364-7-710 (Group 2 hospitals)

ETIM for 043511 Relays (EC001444)

Feature nameHeight (EF000040)
Feature value81 mm
Feature nameWith detachable clamps (EF003340)
Feature valueNo
Feature nameType of electric connection (EF003961)
Feature valueScrew connection
Feature nameDepth (EF000049)
Feature value59 mm
Feature nameWidth (EF000008)
Feature value120 mm

DATASHEET - PDF

Title
Size
Type
043511 EN_043511.pdf
1 Mbytes
