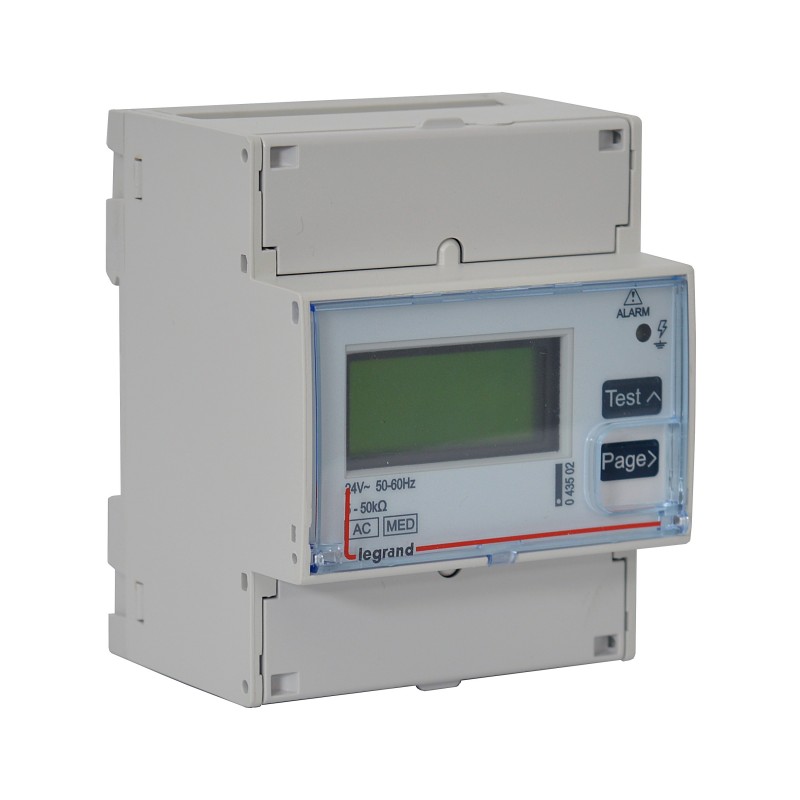

043502 LEGRAND RELAY AISLAM. ICC MEDICAL MOD
043502
LEGRAND
RELAY AISLAM. ICC MEDICAL MOD
Insulation monitoring device (IMD) for IT earthing system in medical environment - 24 V~
24V Permanent Isolation Controller~
Relays > Insulation and earth fault monitoring relay
SUPERVISION AND ENERGY MEASUREMENT
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)0.701
- Weight (g)378.00
- For single-phase circuits, specific for electrical installations in medical environment, using IT earthing system
- Conforming to standard IEC 61557-8 (Appendix A and B)
- For use with one or more (up to 5) remote panels to indicate a fault via an audible and visual signal in the concerned room
- Possibility to define pre-alarms and warnings
- Digital screen with 2-line display with 8 characters per line which allows to define the limits for the monitored parameters
- Width: 4 x 17.5 mm modules
- Measures the network insulation resistance
- Particularly suitable for dedicated lighting circuits (scialytic lamps)
- For alternative current
- Insulation settings: 5 to 50 k
- Used to permanently monitor the insulation level of the IT earthing system, in compliance with installation standard IEC 60364-7-710 (Group 2 hospitals)
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 89.5 mm |
| Response value impedance 1 (EF008202) | 5 kOhm |
| Supply voltage AC 50 Hz (EF007532) | 197 V |
| Supply voltage AC 60 Hz (EF007533) | 197 V |
| Voltage type (operating voltage) (EF005294) | AC |
| Function (EF000030) | For AC-current system |
| With detachable clamps (EF003340) | No |
| Error registration possible (EF003423) | No |
| Type of electric connection (EF003961) | Screw connection |
| Indication of insulation value (EF003422) | Yes |
| Number of contacts as normally closed contact (EF008255) | 2 |
| Rated operating frequency (EF007024) | 47 Hz |
| Number of contacts as normally open contact (EF008256) | 2 |
| Depth (EF000049) | 65.6 mm |
| Width (EF000008) | 70 mm |
| Line capacity (EF003419) | 0.5 µF |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 043502 EN_043502.pdf | 1 Mbytes |
 |
