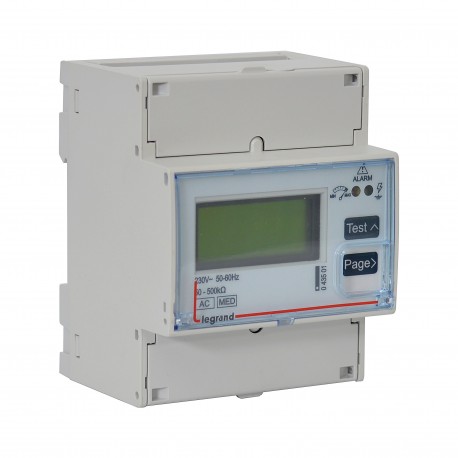

043501 LEGRAND ISOLATION RELAY. CPI DOCTOR MOD

Code: 043501

Manufacturer: LEGRAND

Description:

ISOLATION RELAY. CPI DOCTOR MOD
RELAY AISLAM. ICC MEDICAL MOD
Insulation monitoring device (IMD) for IT earthing system in medical environment - 230 V~
230V Permanent Insulation Controller~

Categories:

  • Relays > Insulation and earth fault monitoring relay
  • LEGRAND > SUPERVISION AND ENERGY MEASUREMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 749,02 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)0.701
  • Weight (g)383.00
Product characteristics
Insulation monitoring device (IMD)
  • For single-phase circuits, specific for electrical installations in medical environment, using IT earthing system
  • Conforming to standard IEC 61557-8 (Appendix A and B)
  • For use with one or more (up to 5) remote panels to indicate a fault via an audible and visual signal in the concerned room
  • Possibility to define pre-alarms and warnings
  • Digital screen with 2-line display with 8 characters per line which allows to define the limits for the monitored parameters
  • Width: 4 x 17.5 mm modules
230 V~
  • Measures the network insulation resistance, the overload (5 A current transformer) and the overheating (PT100 sensor) of the isolation transformer
  • For alternative current
  • Insulation settings: 50 to 500 k
General characteristics
Insulation monitoring device (IMD) - for IT earthing system in medical environment
  • Used to permanently monitor the insulation level of the IT earthing system, in compliance with installation standard IEC 60364-7-710 (Group 2 hospitals)

ETIM for 043501 Relays (EC001444)

Feature nameHeight (EF000040)
Feature value89.5 mm
Feature nameResponse value impedance 1 (EF008202)
Feature value10 kOhm
Feature nameSupply voltage AC 50 Hz (EF007532)
Feature value197 V
Feature nameSupply voltage AC 60 Hz (EF007533)
Feature value197 V
Feature nameVoltage type (operating voltage) (EF005294)
Feature valueAC
Feature nameFunction (EF000030)
Feature valueFor AC-current system
Feature nameWith detachable clamps (EF003340)
Feature valueNo
Feature nameError registration possible (EF003423)
Feature valueNo
Feature nameType of electric connection (EF003961)
Feature valueScrew connection
Feature nameIndication of insulation value (EF003422)
Feature valueYes
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value2
Feature nameRated operating frequency (EF007024)
Feature value47 Hz
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value2
Feature nameDepth (EF000049)
Feature value65.6 mm
Feature nameWidth (EF000008)
Feature value70 mm
Feature nameLine capacity (EF003419)
Feature value0.5 µF
