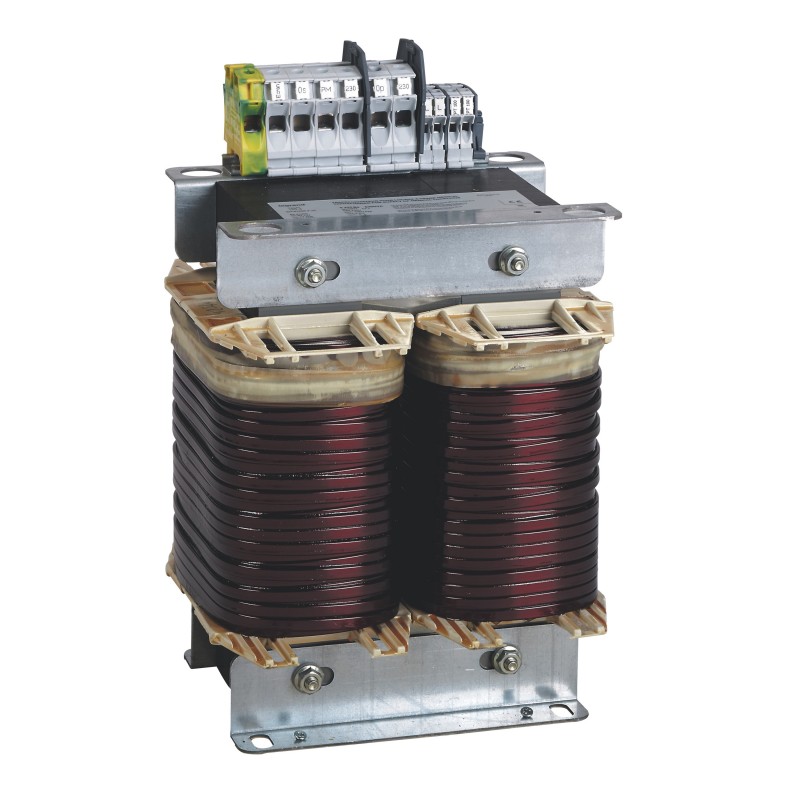

LEGRAND 042596 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

042596 LEGRAND TRANSFO HOSP MONO F10 KVA

Code: 042596

Manufacturer: LEGRAND

Description:

TRANSFO HOSP MONO F10 KVA
TRANSFO HOSP MONKEY F10 KVA
Isolating transfo for hospitals - IP 00 -1 phase- prim 230 V / sec 230 V -output 10 kVA
Circuit Separation Transformer for Hospital Uses - 10kVA

Categories:

  • Low-voltage industrial components > One-phase control transformer
  • LEGRAND > ACCESSORIES CONTROL AND CONTROL PANELS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 2.565,54 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)67.551
  • Weight (g)67 100.00
Product characteristics
Single-phase
Primary: 230 V~ / Secondary: 230 V~ with centre tap
  • Equipped with two temperature monitoring systems (bi-metal strips and thermocouple PT 100), making them compatible with any medical control system
  • IP 00
  • Output : 10 kVA
  • Terminal primary flexible cable : 35 mm²
  • Terminal secondary flexible cable : 35 mm²
General characteristics
Isolating transformers for hospitals
  • Conform to standard IEC EN 61558-2-15
  • The main requirements of this standard, additionally to IEC 61558-2-4, concern:
    • secondary/earth leakage current, limited to 0.5 mA off-load
    • inrush current, limited to 12 times the peak value of primary current
  • Electrostatic shield linked to dedicated terminal
  • Equipped with a temperature monitoring system, and outputs on dedicated terminals

ETIM for 042596 Low-voltage industrial controls and switchgear (EC002486)

Feature nameBuilt as isolating transformer (EF007238)
Feature valueYes
Feature nameHeight (EF000040)
Feature value420 mm
Feature namePrimary voltage 1 (EF006125)
Feature value230 V
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP00
Feature nameBuilt as safety transformer (EF007235)
Feature valueNo
Feature nameRated apparent power (EF008864)
Feature value10000 VA
Feature nameSecondary voltage 1 (EF007472)
Feature value230 V
Feature nameRelative short circuit voltage (EF007452)
Feature value3.6 %
Feature nameType of insulation material according to IEC 85 (EF007299)
Feature valueH
Feature nameShort-circuit-proof (EF007332)
Feature valueNo
Feature nameModular version (EF001126)
Feature valueNo
Feature nameSuitable for mounting on PCB (EF006157)
Feature valueNo
Feature nameBuilt as energy saving transformer (EF007005)
Feature valueNo
Feature nameRing core (EF006170)
Feature valueNo
Feature nameDepth (EF000049)
Feature value220 mm
Feature nameWidth (EF000008)
Feature value290 mm

DATASHEET - PDF

Title
Size
Type
042596 EN_042591.pdf
105 Kbytes
