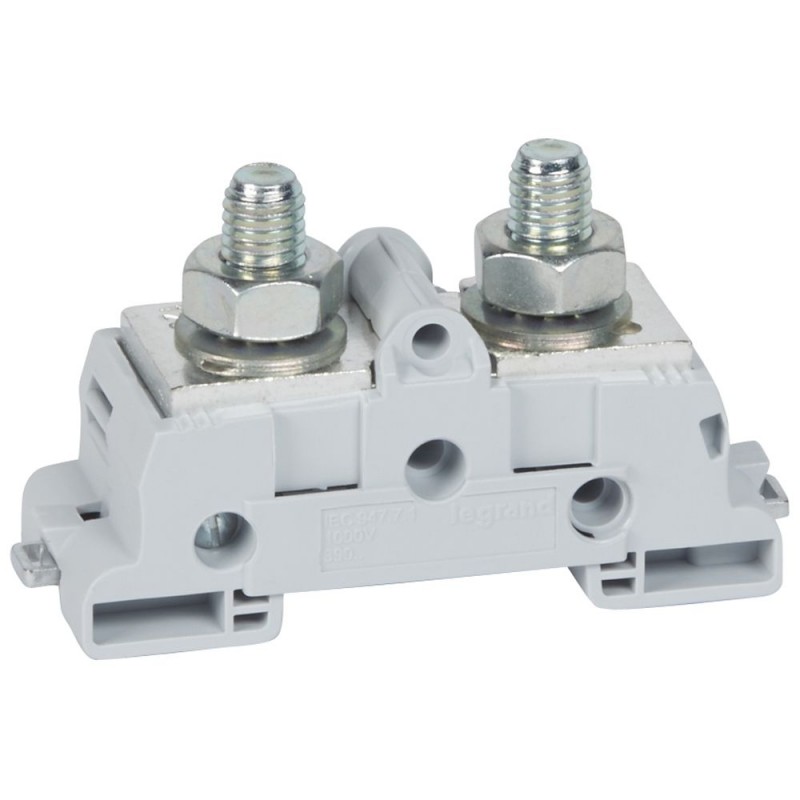

039073 LEGRAND BLOCK POWER 120MM2
039073
LEGRAND
40
BLOCK POWER 120MM2
Viking 3 Heavy Duty Terminal Block Symmetrical DIN Rail Mounting 120mm² Copper Bar/Cable Lug 34mm
Viking 3 power terminal - symmetrical rails - M10 - pitch 34 - L. 25mm
Terminal blocks > (Knife) disconnect terminal block
VIKING TERMINALS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲| Connectable conductor cross section fine-strand without cable end sleeve | 120-120 mm² |
|---|---|
| Rated voltage | 1000 V |
| Type of electrical connection 1 | Bolt connection |
| Type of electrical connection 2 | Bolt connection |
| Number of levels | 1 |
| Number of clamp positions per level | 1 |
| Internally connected stages | No |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Material insulation body | Thermoplastic |
|---|---|
| Operating temperature | -5-40 °C |
| Width | 34 mm |
| Height | 61 mm |
| Depth | 84 mm |
| Closing plate required | No |
| Colour | Grey |
| Inflammability class of insulation material according to UL 94 | V2 |
| Feature Name | Feature Value |
|---|---|
| Number of clamp positions per level (EF002660) | 1 |
| Internally connected stages (EF002661) | No |
| Height (EF000040) | 61 mm |
| Inflammability class of insulation material according to UL94 (EF002521) | V2 |
| Material insulation body (EF007543) | Thermoplastic |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 120 mm² |
| Operating temperature (EF002393) | -5 °C |
| Closing plate required (EF002525) | No |
| Depth (EF000049) | 84 mm |
| Type of electrical connection 1 (EF002526) | Bolt connection |
| Colour (EF000007) | Grey |
| Rated voltage (EF000228) | 1000 V |
| Width (EF000008) | 34 mm |
| Number of levels (EF002659) | 1 |
| Type of electrical connection 2 (EF002527) | Bolt connection |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 039073 EN_039073.pdf | 131 Kbytes |
 |
