LEGRANDVIKING TERMINALS039021 LEGRAND B. CABLE-PLET SPLICE 300-300

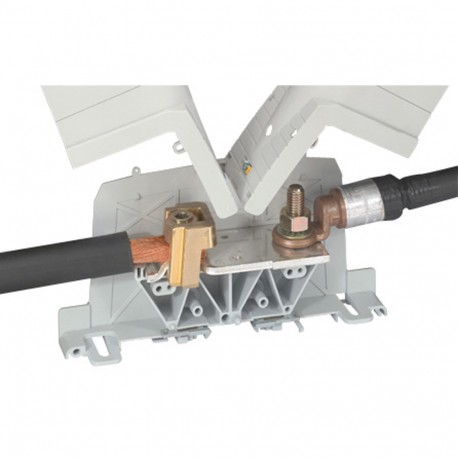

LEGRAND 039021 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

039021 LEGRAND B. CABLE-PLET SPLICE 300-300

Code: 039021

Manufacturer: LEGRAND

Description:

B. CABLE-PLET SPLICE 300-300
B. SPLICE CABLE-PLET 300-300
Power terminal block Viking 3 - cable-cable lug - pitch 55
Viking 3 power terminal block - cable - range - step 55

Categories:

  • Terminal blocks > (Knife) disconnect terminal block
  • LEGRAND > VIKING TERMINALS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 333,09 €

Unit Price: 66,618 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)5
  • Volume (dm3)12.006
  • Weight (g)5 152.00
Product characteristics
Insulated aluminium/copper power terminal blocks
  • For aluminium/copper cables, copper bars or cable lugs
  • Direct connection of cable
  • Insulation and protection against direct contact without additional accessories (built-in dividers and covers)
  • Pre-cut removable covers for adjustment to the various connection modes
  • Fixed using metal clip for rails 15 mm depth and EN 60715 15 mm depth, or on plate with screws
  • Permits the use of Cab 3, Duplix markers
  • Test via test plug closed covers
  • Blocks with identical pitch can be joined using a threaded rod
  • Shunting possible with Cat.Nos 0 394 46/47

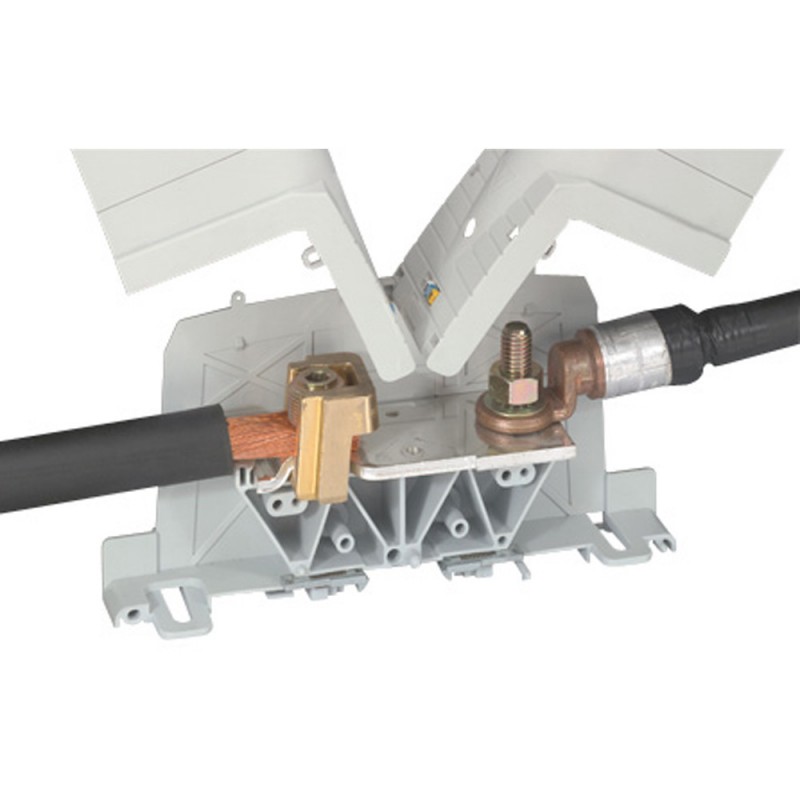

Cable - cable lug
  • Rigid or flexible cable : Al/Cu 70 to 300 mm²
  • Rigid or flexible cable : Al/Cu 300 mm²
  • Pitch : 55 mm
General characteristics
Viking™ 3 power terminal blocks
  • Bridging the gap between the enclosure and external cables

ETIM for 039021 Terminal blocks (EC000902)

Feature nameNumber of clamp positions per level (EF002660)
Feature value1
Feature nameConnectable conductor cross section solid-core (EF007337)
Feature value70 mm²
Feature nameInternally connected stages (EF002661)
Feature valueNo
Feature nameHeight (EF000040)
Feature value113.5 mm
Feature nameInflammability class of insulation material according to UL94 (EF002521)
Feature valueV2
Feature nameMaterial insulation body (EF007543)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueDIN rail (top hat rail) 35 mm
Feature nameConnectable conductor cross section fine-strand without cable end sleeve (EF007341)
Feature value70 mm²
Feature nameConnectable conductor cross section multi-wired (EF007343)
Feature value70 mm²
Feature nameOperating temperature (EF002393)
Feature value-5 °C
Feature nameRated current In (EF008250)
Feature value570 A
Feature nameWith integrated test socket (EF002547)
Feature valueYes
Feature nameClosing plate required (EF002525)
Feature valueNo
Feature nameDepth (EF000049)
Feature value337 mm
Feature nameType of electrical connection 1 (EF002526)
Feature valueScrew connection
Feature nameColour (EF000007)
Feature valueGrey
Feature nameType of slitting (EF002545)
Feature valueSwivelling
Feature nameRated voltage (EF000228)
Feature value1000 V
Feature nameWidth (EF000008)
Feature value55 mm
Feature nameNumber of levels (EF002659)
Feature value1
Feature nameType of electrical connection 2 (EF002527)
Feature valueBolt connection

DATASHEET - PDF

Title
Size
Type
039021 EN_039021.pdf
134 Kbytes
