039020 LEGRAND B. SPLICE CABLE-PLET 120-120
039020
LEGRAND
10
B. SPLICE CABLE-PLET 120-120

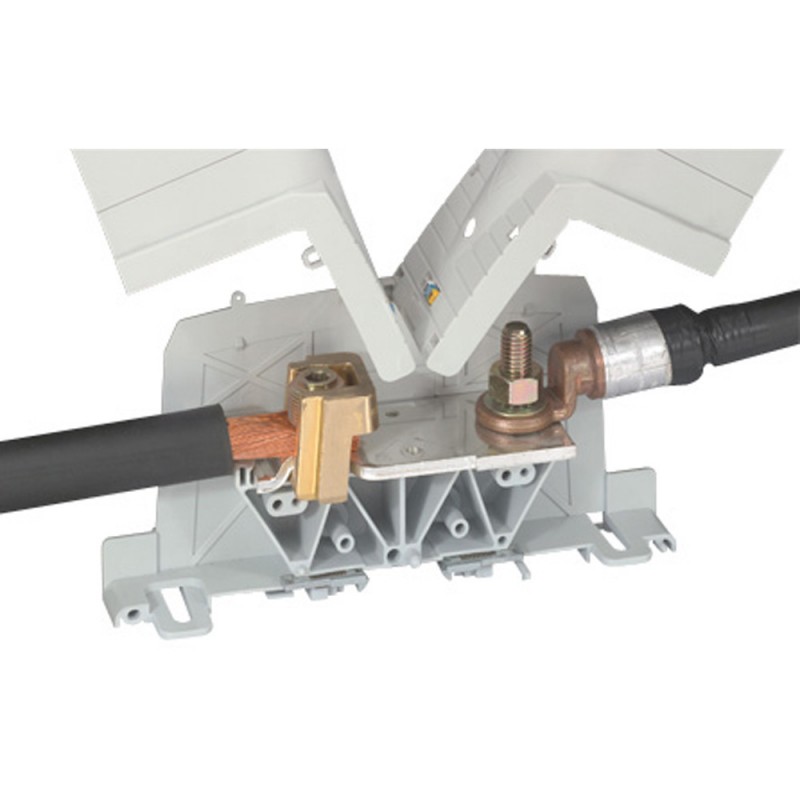

Power terminal block Viking 3 - cable-cable lug - pitch 42
Viking 3 power terminal - cable - range - step 42
Terminal blocks > (Knife) disconnect terminal block
VIKING TERMINALS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)5
- Volume (dm3)7.84
- Weight (g)2 650.00
- For aluminium/copper cables, copper bars or cable lugs
- Direct connection of cable
- Insulation and protection against direct contact without additional accessories (built-in dividers and covers)
- Pre-cut removable covers for adjustment to the various connection modes
- Fixed using metal clip for rails 15 mm depth and EN 60715 15 mm depth, or on plate with screws
- Permits the use of Cab 3, Duplix markers
- Test via test plug closed covers
- Blocks with identical pitch can be joined using a threaded rod
- Shunting possible with Cat.Nos 0 394 46/47
- Rigid or flexible cable : Al/Cu 35 to 120 mm²
- Rigid or flexible cable : Al/Cu 120 mm²
- Pitch : 42 mm
- Bridging the gap between the enclosure and external cables
| Feature Name | Feature Value |
|---|---|
| Number of clamp positions per level (EF002660) | 1 |
| Connectable conductor cross section solid-core (EF007337) | 35 mm² |
| Internally connected stages (EF002661) | No |
| Height (EF000040) | 89.5 mm |
| Inflammability class of insulation material according to UL94 (EF002521) | V2 |
| Material insulation body (EF007543) | Thermoplastic |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 35 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 35 mm² |
| Operating temperature (EF002393) | -5 °C |
| Rated current In (EF008250) | 340 A |
| With integrated test socket (EF002547) | Yes |
| Closing plate required (EF002525) | No |
| Depth (EF000049) | 296 mm |
| Type of electrical connection 1 (EF002526) | Screw connection |
| Colour (EF000007) | Grey |
| Type of slitting (EF002545) | Swivelling |
| Rated voltage (EF000228) | 1000 V |
| Width (EF000008) | 42 mm |
| Number of levels (EF002659) | 1 |
| Type of electrical connection 2 (EF002527) | Bolt connection |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 039020 EN_039020.pdf | 134 Kbytes |
 |
