LEGRANDVIKING TERMINALS039010 LEGRAND B. CABLE-CABLE SPLICE 120-70

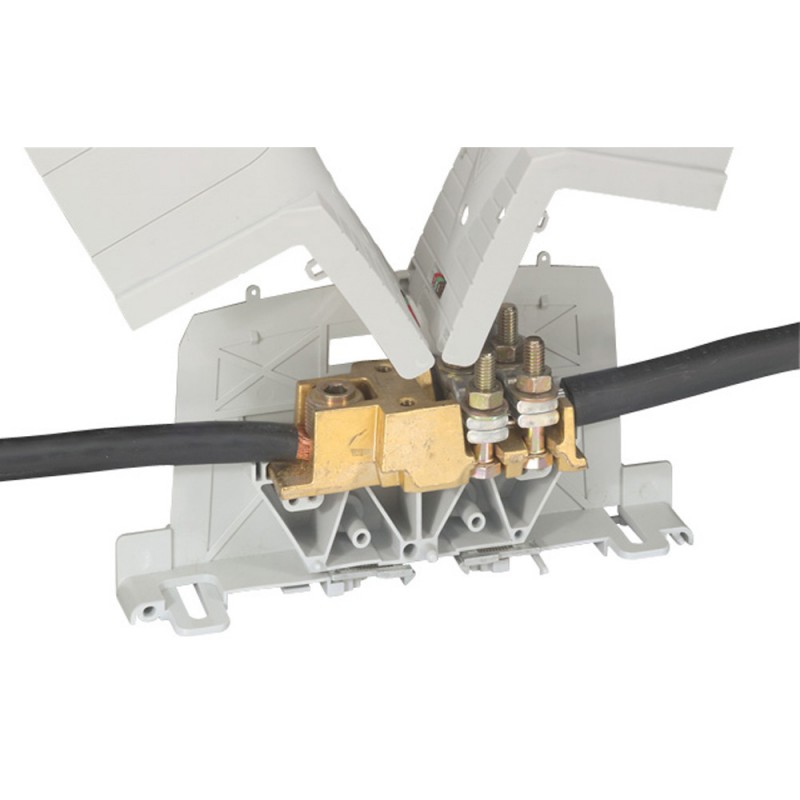

LEGRAND 039010 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

039010 LEGRAND B. CABLE-CABLE SPLICE 120-70

Code: 039010

Manufacturer: LEGRAND

Description:

B. CABLE-CABLE SPLICE 120-70
B. SPLICE CABLE-CABLE 120-70
Viking 3 Heavy Duty Terminal Block 35mm² to 120mm² Cable to Cable 42mm
Viking 3 power terminal block - cable - step 42

Categories:

  • Terminal blocks > (Knife) disconnect terminal block
  • LEGRAND > VIKING TERMINALS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 232,04 €

Unit Price: 46,409 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Heavy duty terminal blocks For copper and aluminium cables IK 04 Conform to IEC 60947-7-1, EN 60947-7-1 UL 1059 and 486 E - CSA 22-2 Fire resistant IEC 60695-2-11: 960°C (except cover) V2 according to UL 94 Bridging the gap between the enclosure and external cables Fixed using metal clip for rails 15mm depth and EN 60715, 15mm depth or on plate with screws Fitted with hinged covers with cut-outs Permits the use of CAB 3 markers Test via test plug _4 closed covers Blocks with identical width can be joined using a threaded rod Supports shunt with Cat. Nos. 0394 46/47
Connectable conductor cross section fine-strand without cable end sleeve35-120 mm²
Connectable conductor cross section solid-core35-120 mm²
Connectable conductor cross section multi-wired35-120 mm²
Rated current In250 A
Rated voltage1000 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level1
Internally connected stagesNo
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-5-40 °C
Width42 mm
Height89.5 mm
Depth296 mm
Closing plate requiredNo
ColourGrey
Type of slittingSwivelling
With integrated test socketYes
Inflammability class of insulation material according to UL 94V2

ETIM for 039010 Terminal blocks (EC000902)

Feature nameNumber of clamp positions per level (EF002660)
Feature value1
Feature nameConnectable conductor cross section solid-core (EF007337)
Feature value35 mm²
Feature nameInternally connected stages (EF002661)
Feature valueNo
Feature nameHeight (EF000040)
Feature value89.5 mm
Feature nameInflammability class of insulation material according to UL94 (EF002521)
Feature valueV2
Feature nameMaterial insulation body (EF007543)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueDIN rail (top hat rail) 35 mm
Feature nameConnectable conductor cross section fine-strand without cable end sleeve (EF007341)
Feature value35 mm²
Feature nameConnectable conductor cross section multi-wired (EF007343)
Feature value35 mm²
Feature nameOperating temperature (EF002393)
Feature value-5 °C
Feature nameRated current In (EF008250)
Feature value250 A
Feature nameWith integrated test socket (EF002547)
Feature valueYes
Feature nameClosing plate required (EF002525)
Feature valueNo
Feature nameDepth (EF000049)
Feature value296 mm
Feature nameType of electrical connection 1 (EF002526)
Feature valueScrew connection
Feature nameColour (EF000007)
Feature valueGrey
Feature nameType of slitting (EF002545)
Feature valueSwivelling
Feature nameRated voltage (EF000228)
Feature value1000 V
Feature nameWidth (EF000008)
Feature value42 mm
Feature nameNumber of levels (EF002659)
Feature value1
Feature nameType of electrical connection 2 (EF002527)
Feature valueScrew connection

DATASHEET - PDF

Title
Size
Type
039010 EN_039010.pdf
133 Kbytes
