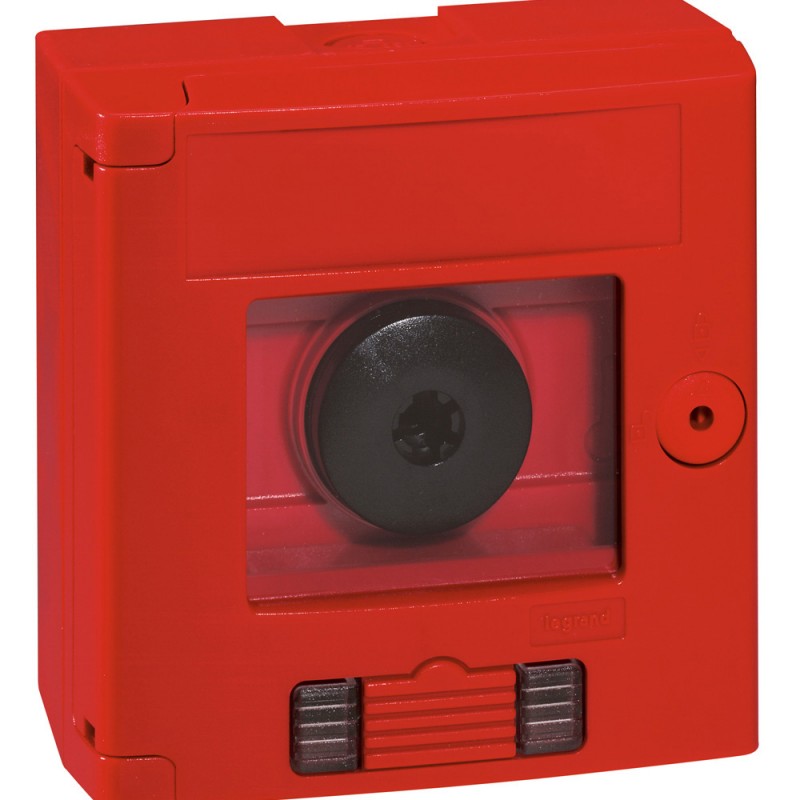

038024 LEGRAND PULSE DOUBLE POSITION RED
038024
LEGRAND
PULSE DOUBLE POSITION RED
Break glass emergency box-2 position-surface mounting-IP44-red box with LED
Dual position pushbutton, red, protruding, with lights
Low-voltage industrial components > Emergency stop complete
SIRENS AND ALARMS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)1.515
- Weight (g)432.00
- Polycarbonate, Class II - IK 07
- Equipped with:
- hinged glass door with locking option by key
- 3 cable entries for CG ISO 16/20 (by top or bottom as reversible product)
- 2 entries from back of product Ø20
- 2 side entries for mini-trunking 20 x 12.5 and 32 x 12.5
- 1 NC contact and 1 NO contact
- Breaking capacity:
- 400 V~ / 4.5 A
- 230 V~ / 6 A
- 48 V DC / 1 A
- 24 V DC / 1.5 A
- Flush-mounting option with boxes Ø85
- Dim.: 125 x 125 x 71 mm (surface-mounting) IP 44 - 125 x 125 x 33 mm (flush-mounting) IP 30
- Red boxes can be used for fire applications and manipulated by fire fighters
- Yellow boxes can be used for emergency applications and manipulated by employees
- Equipment:
- 1 mushroom head button for pressing
- 1 finishing accessory for simple action release (glass break) or double action (glass break followed by pressing on mushroom head)
- 2 long life 230 V~ LED indicators (green/red)
- Red box with LED
| Feature Name | Feature Value |
|---|---|
| Connection type auxiliary circuit (EF006820) | Screw connection |
| Supply voltage lamp (EF006522) | 230 V |
| With lighting (EF003829) | No |
| Degree of protection (IP) (EF005474) | IP44 |
| Mounting method (EF000003) | Surface mounting |
| Hole diameter (EF000079) | 20 mm |
| Diameter cap (EF001423) | 20 mm |
| Number of contacts as normally closed contact (EF008255) | 1 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Unlocking method (EF001403) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 038024 EN_038024.pdf | 137 Kbytes |
 |
