LEGRANDSIRENS AND ALARMS038009 LEGRAND PULS ALARM WITH PILOT

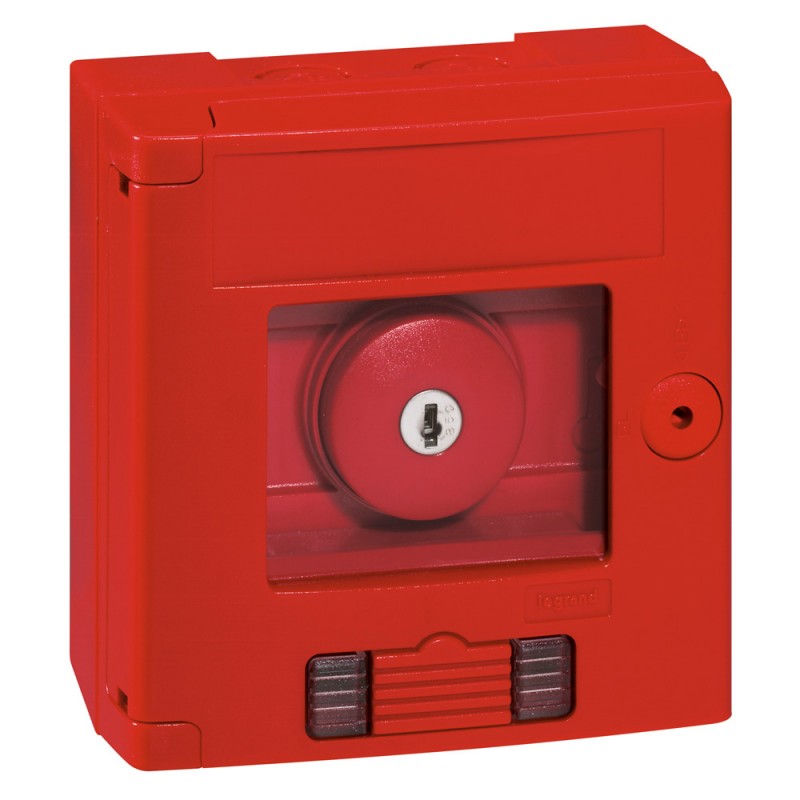

LEGRAND 038009 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

038009 LEGRAND PULS ALARM WITH PILOT

Code: 038009

Manufacturer: LEGRAND

Description:

PULS ALARM WITH PILOT
Break glass emergency box-mushroom head-surface mounting-IP44-red box with LED
Alarm button with protruding/recessed light

Categories:

  • Low-voltage industrial components > Emergency stop complete
  • LEGRAND > SIRENS AND ALARMS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 166,27 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)1.515
  • Weight (g)444.00
Product characteristics
Break glass emergency boxes
  • Polycarbonate, Class II - IK 07
  • Equipped with:
    • hinged glass door with locking option by key
    • 3 cable entries for CG ISO 16/20 (by top or bottom as reversible product)
    • 2 entries from back of product Ø20
    • 2 side entries for mini-trunking 20 x 12.5 and 32 x 12.5
    • 1 NC contact and 1 NO contact
  • Breaking capacity:
    • 400 V~ / 4.5 A
    • 230 V~ / 6 A
    • 48 V DC / 1 A
    • 24 V DC / 1.5 A
  • Flush-mounting option with boxes Ø85
  • Dim.: 125 x 125 x 71 mm (surface-mounting) IP 44 - 125 x 125 x 33 mm (flush-mounting) IP 30
  • Red boxes can be used for fire applications and manipulated by fire fighters
  • Yellow boxes can be used for emergency applications and manipulated by employees
Mushroom head button boxes
  • Direct actuation by smashing glass plate
  • Equipment:
    • 1 mushroom head button with latching, unlocking by key No 850
    • 2 long life 230 V~ LED indicators (green/red)
  • Red box with LED
General characteristics
Safety boxes 125 series - for emergency applications

ETIM for 038009 Low-voltage industrial controls and switchgear (EC002034)

Feature nameConnection type auxiliary circuit (EF006820)
Feature valueScrew connection
Feature nameSupply voltage lamp (EF006522)
Feature value230 V
Feature nameWith lighting (EF003829)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP44
Feature nameMounting method (EF000003)
Feature valueSurface mounting
Feature nameHole diameter (EF000079)
Feature value20 mm
Feature nameDiameter cap (EF001423)
Feature value20 mm
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value1
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value1
Feature nameUnlocking method (EF001403)
Feature valueKey-release

DATASHEET - PDF

Title
Size
Type
038009 EN_038009.pdf
137 Kbytes
