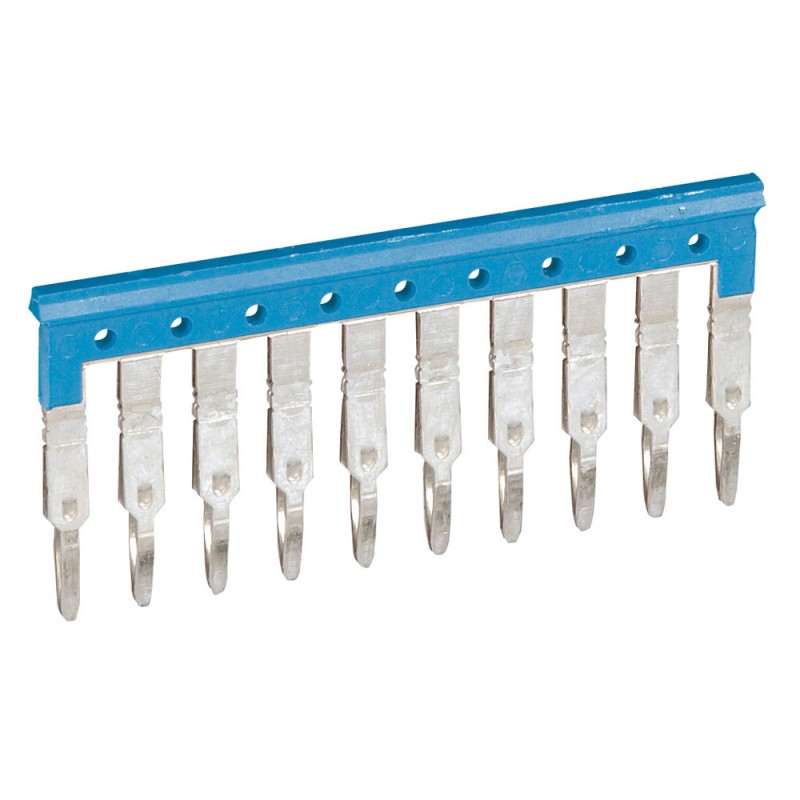

037500 LEGRAND COMB 10 TERMINALS, 5 MM PITCH-BLUE
037500
LEGRAND
300
COMB 10 TERMINALS, 5 MM PITCH-BLUE
Bridging combs Viking 3 - equipotential - for 10 blocks with 5 mm pitch - blue
Viking Terminal Comb 3 screw and spring for 10 terminals - 5 step - blue
Terminal blocks > Cross-connector for terminal block
VIKING TERMINALS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲- Pack (number of units)20
- Volume (dm3)0.255
- Weight (g)130.00
Bridging combs for screw and spring terminal blocks
- Front mounting (automatic insertion), screwless
- Isolated and separable
- Consecutive or alternating connection
- For 10 blocks with 5 mm pitch - blue
- Cat. No 0 371 51/52: upper level only Cat. No 0 372 56: lower level only Cat. No 0 372 54: non shuntable
| Feature Name | Feature Value |
|---|---|
| Number of bridged clamps (EF002550) | 10 |
| Model (EF000010) | Push-in type jumper bar |
| Modular spacing (EF000394) | 5 mm |
| Mounting method (EF000003) | Pluggable |
| Colour (EF000007) | Red |
| Rated voltage (EF000228) | 800 V |
| Insulated (EF000019) | Yes |
| Rated current In (EF008250) | 24 A |
| With contact protection (EF008186) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 037500 EN_037500.pdf | 131 Kbytes |
 |
