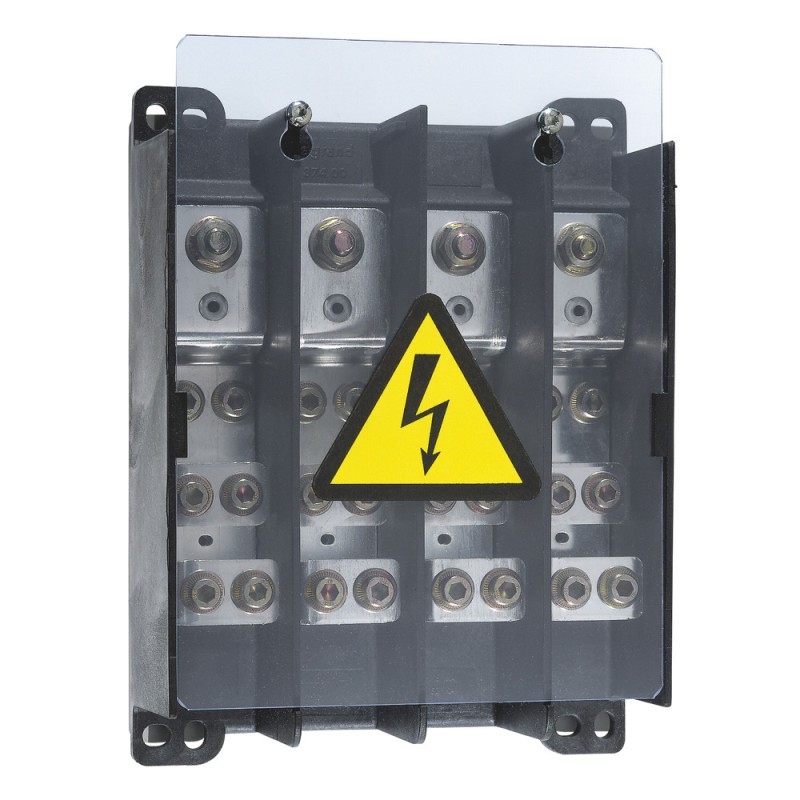

LEGRAND 037400 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

037400 LEGRAND 4P 160/250A SPLITTER

Code: 037400

Manufacturer: LEGRAND

Description:

4P 160/250A SPLITTER
DEALER 4-POLE 160/250A
Legrand 4 Pole 250A Extra-Flat Distribution Block for Lugs
Extra-flat power distributor for terminal blocks - 250A

Categories:

  • Connection devices > Terminal box
  • LEGRAND > XL3 160-400 ENERGY DISTRIBUTION CABINETS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 115,58 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Extra-flat distribution blocks for lugs 250A (75.5mm depth) Ipk peak withstand current 60 kA Insulation voltage according to EN 60947-1/ IEC 60664-1: 1 000V Self-extinguishing: 960°C Fix to mounting plate by M6 screws
Number of connection clamps7
Max. conductor cross section150 mm²
Length165 mm
Width228 mm
Depth75.5 mm
Mounting methodSurface mounted
Extension possibleNo
Type of inletCable
MaterialPlastic
Halogen freeYes
Surface protectionOther
ColourBlack
Degree of protection (IP)Other
With coverYes
Cover attachmentScrewed
With transparent coverYes
SealableNo
Rated insulation voltage Ui1000 V
Operating / setting temperature-5-40 °C
Explosion-tested versionNo
For Ex-zone gasNone
For Ex-zone dustNone

ETIM for 037400 Junction and back boxes (EC002713)

Feature nameFor Ex-zone dust (EF008404)
Feature valueNone
Feature nameCover attachment (EF004586)
Feature valueScrewed
Feature nameNumber of connection clamps (EF001231)
Feature value7
Feature nameDegree of protection (IP) (EF005474)
Feature valueOther
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameType of inlet (EF001455)
Feature valueCable
Feature nameMounting method (EF000003)
Feature valueSurface mounted
Feature nameSealable (EF001454)
Feature valueNo
Feature nameWith transparent cover (EF001094)
Feature valueYes
Feature nameOperating temperature (EF001742)
Feature value-5 °C
Feature nameSurface protection (EF000139)
Feature valueOther
Feature nameFor Ex-zone gas (EF005728)
Feature valueNone
Feature nameWith cover (EF001187)
Feature valueYes
Feature nameExtension possible (EF001088)
Feature valueNo
Feature nameRated insulation voltage Ui (EF001366)
Feature value1000 V
Feature nameExplosion-tested version (EF004191)
Feature valueNo
Feature nameDepth (EF000049)
Feature value75.5 mm
Feature nameColour (EF000007)
Feature valueBlack
Feature nameWidth (EF000008)
Feature value228 mm
Feature nameLength (EF001438)
Feature value165 mm
Feature nameMax. conductor cross section (EF004969)
Feature value150 mm²
