LEGRANDXL3 800-4000 ENERGY DISTRIBUTION CABINETS037324 LEGRAND XL3 BAR SUPPORT

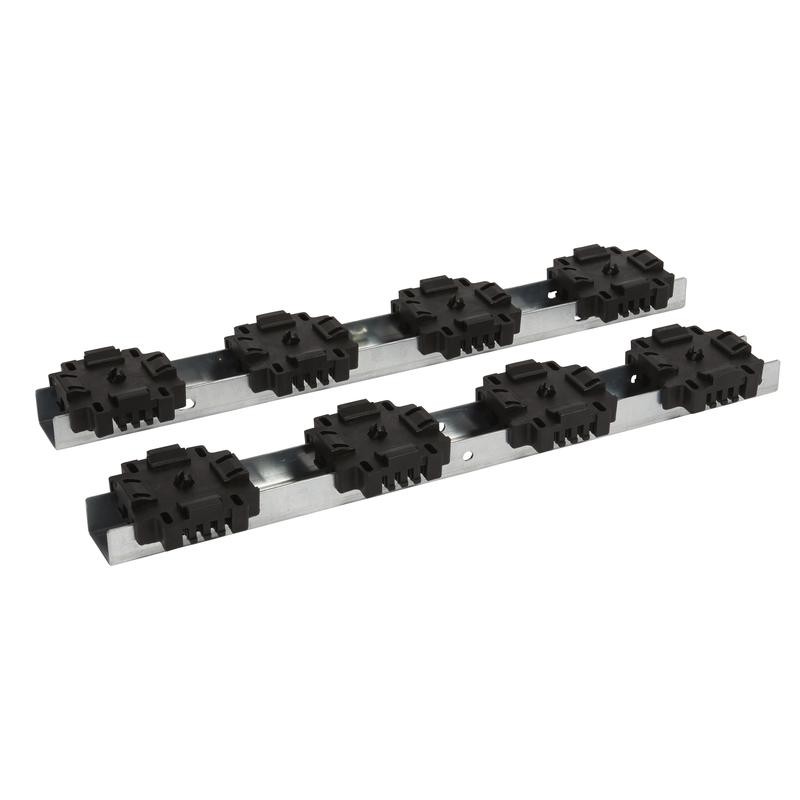

LEGRAND 037324 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

037324 LEGRAND XL3 BAR SUPPORT

Code: 037324

Manufacturer: LEGRAND

Description:

XL3 BAR SUPPORT
SUPPORT XL3 BARS
Isolating support for XL³ - 1 or 4 bars/pole - up to 4000 A
Insulating bracket with 1 to 4 bars per pole - up to 4000A - XL³ 4000

Categories:

  • Cabinet enclosures > Component for installation (switchgear cabinet)
  • LEGRAND > XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 117,82 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)6.775
  • Weight (g)3 964.00
Product characteristics
1 to 4 bars per pole
≤ 4000 A
  • Supports for 4 flat bars from 50 x 5 to 125 x 5 mm or 3 bars from 50 x 10 to 120 x 10 mm, in aligned position
  • Fixed support
General characteristics
Isolating supports for busbars for XL³ enclosures
  • Standard distribution

ETIM for 037324 Cabinets and enclosures (EC002620)

Feature nameHeight (EF000040)
Feature value250 mm
Feature nameModel (EF000010)
Feature valueOther
Feature nameMaterial (EF002169)
Feature valueOther
Feature nameDepth (EF000049)
Feature value567 mm
Feature nameColour (EF000007)
Feature valueOther
Feature nameSuitable for enclosure building width (EF000326)
Feature value1203 mm
Feature nameWidth (EF000008)
Feature value94 mm
Feature nameSuitable for enclosure building depth (EF000327)
Feature value803 mm
Feature nameSuitable for enclosure building height (EF009583)
Feature value2003 mm

DATASHEET - PDF

Title
Size
Type
037324 EN_037324.pdf
126 Kbytes
