LEGRANDXL3 800-4000 ENERGY DISTRIBUTION CABINETS037323 LEGRAND XL3 JDB 1600A STEERING WHEEL STAND

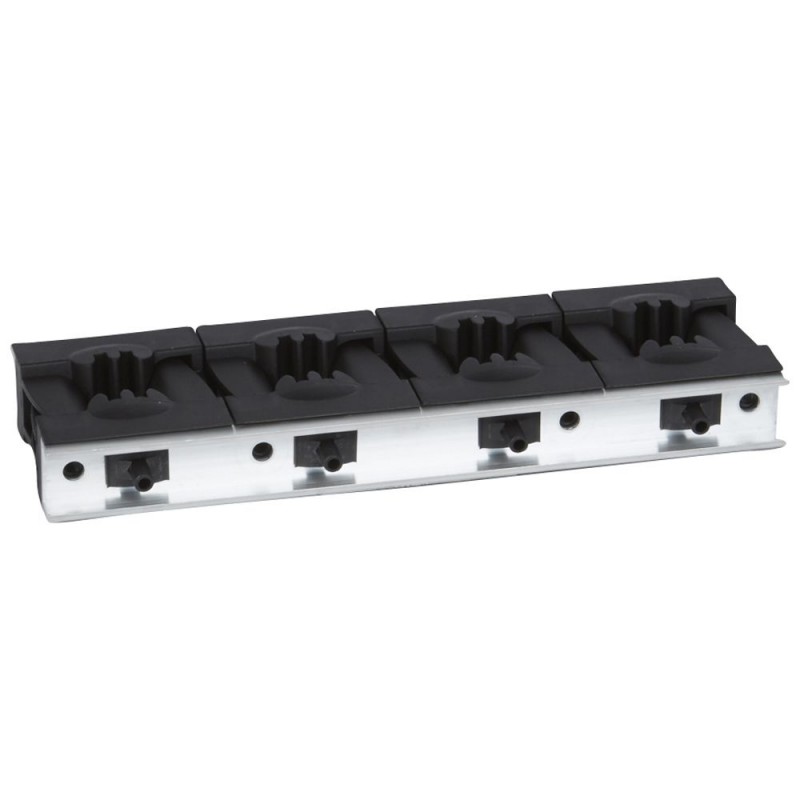

LEGRAND 037323 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

037323 LEGRAND XL3 JDB 1600A STEERING WHEEL STAND

Code: 037323

Manufacturer: LEGRAND

Description:

XL3 JDB 1600A STEERING WHEEL STAND
SUPPORT XL3 JDB 1600A STEERING WHEEL
Additional support for XL³ - in addition to 373 22 support
Complementary flywheel holder 1 or 2 bars per pole - up to 1600A

Categories:

  • Cabinet enclosures > Component for installation (switchgear cabinet)
  • LEGRAND > XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 96,10 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)4.00
  • Weight (g)1 028.00
Product characteristics
1 or 2 bars per pole
  • Supports for flat copper bars 50 x 5, 63 x 5, 75 x 5, 80 x 5 and 100 x 5 mm, in aligned position
≤ 1600 A
  • Additional support
  • Mounted in addition to fixed support Cat.No 0 373 22 to comply with the distances (Isc withstand)
General characteristics
Isolating supports for busbars for XL³ enclosures
  • Standard distribution

ETIM for 037323 Cabinets and enclosures (EC002620)

Feature nameHeight (EF000040)
Feature value171 mm
Feature nameModel (EF000010)
Feature valueOther
Feature nameMaterial (EF002169)
Feature valueOther
Feature nameDepth (EF000049)
Feature value300 mm
Feature nameColour (EF000007)
Feature valueBlack
Feature nameSuitable for enclosure building width (EF000326)
Feature value1202 mm
Feature nameWidth (EF000008)
Feature value40 mm
Feature nameSuitable for enclosure building depth (EF000327)
Feature value802 mm
Feature nameSuitable for enclosure building height (EF009583)
Feature value2002 mm
