LEGRANDXL3 800-4000 ENERGY DISTRIBUTION CABINETS037322 LEGRAND XL3 SUPPORT BAR SET 1600A

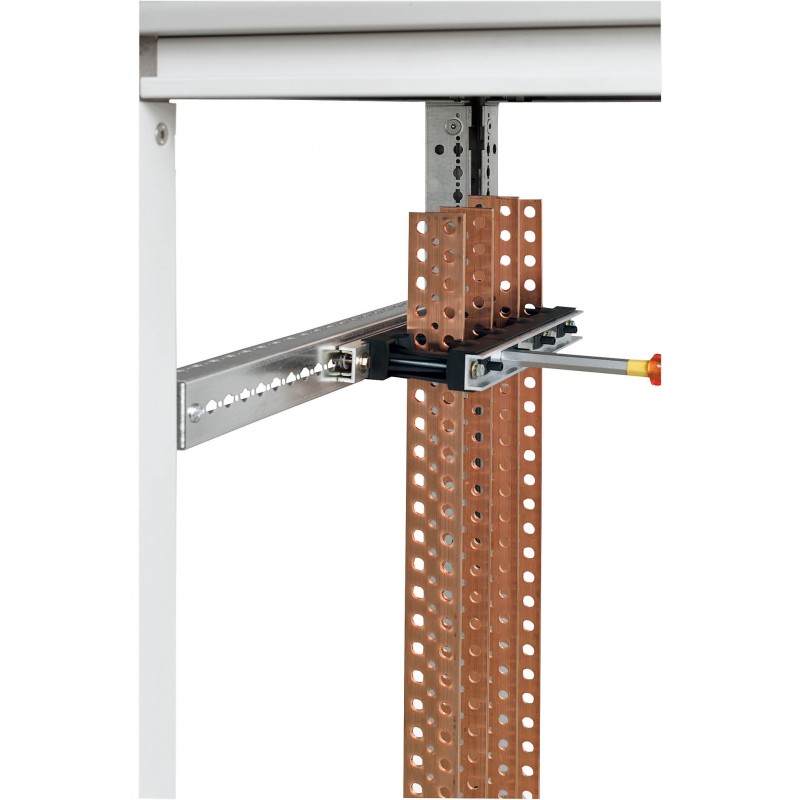

LEGRAND 037322 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

037322 LEGRAND XL3 SUPPORT BAR SET 1600A

Code: 037322

Manufacturer: LEGRAND

Description:

XL3 SUPPORT BAR SET 1600A
SUPPORT XL3 GAME BARS 1600A
Isolating support for XL³ - 1 or 2 bars/pole - up to 1600 A
Insulating bracket 1 or 2 bars per pole - up to 1600A - XL³ 4000

Categories:

  • Cabinet enclosures > Component for installation (switchgear cabinet)
  • LEGRAND > XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 107,68 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)5.00
  • Weight (g)1 108.00
Product characteristics
1 or 2 bars per pole
  • Supports for flat copper bars 50 x 5, 63 x 5, 75 x 5, 80 x 5 and 100 x 5 mm, in aligned position
≤ 1600 A
  • Fixed support
General characteristics
Isolating supports for busbars for XL³ enclosures
  • Standard distribution

ETIM for 037322 Cabinets and enclosures (EC002620)

Feature nameHeight (EF000040)
Feature value171 mm
Feature nameModel (EF000010)
Feature valueOther
Feature nameMaterial (EF002169)
Feature valueOther
Feature nameDepth (EF000049)
Feature value345 mm
Feature nameColour (EF000007)
Feature valueOther
Feature nameSuitable for enclosure building width (EF000326)
Feature value1201 mm
Feature nameWidth (EF000008)
Feature value40 mm
Feature nameSuitable for enclosure building depth (EF000327)
Feature value801 mm
Feature nameSuitable for enclosure building height (EF009583)
Feature value2001 mm

DATASHEET - PDF

Title
Size
Type
037322 EN_037322.pdf
128 Kbytes
