LEGRANDXL3 800-4000 ENERGY DISTRIBUTION CABINETS037320 LEGRAND SUPPORT. XL3 JDB 630/800

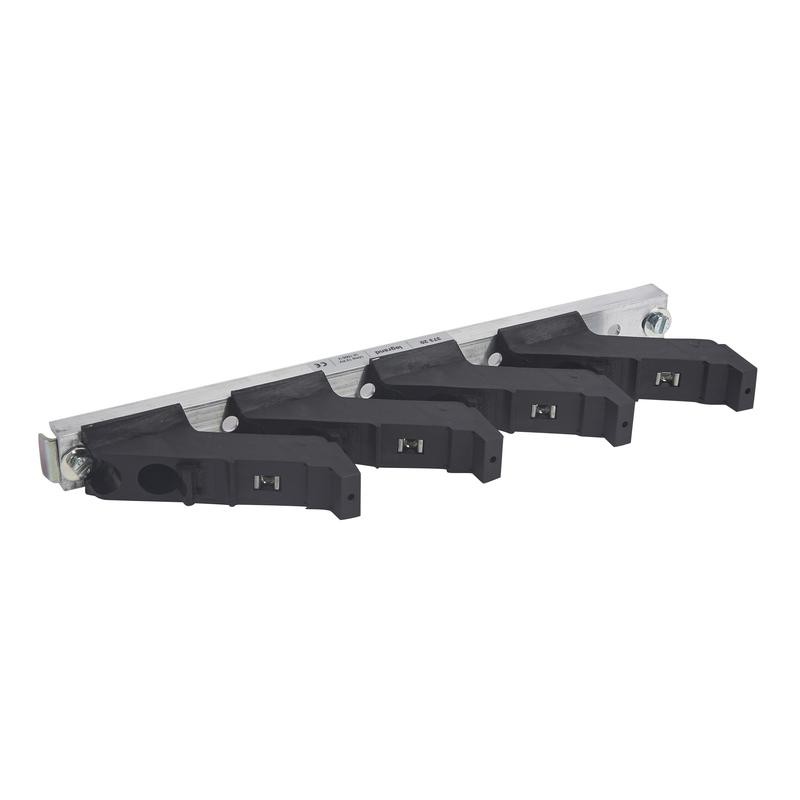

LEGRAND 037320 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

037320 LEGRAND SUPPORT. XL3 JDB 630/800

Code: 037320

Manufacturer: LEGRAND

Description:

SUPPORT. XL3 JDB 630/800
SUPPORT.XL3 JDB 630/800
Isolating support for XL³ - 1 bar/pole - up to 800 A
Insulating bracket 1 bar per pole - up to 800A - XL³ 800/4000

Categories:

  • Cabinet enclosures > Component for installation (switchgear cabinet)
  • LEGRAND > XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 70,04 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)2.56
  • Weight (g)621.00
Product characteristics
1 bar per pole
≤ 800 A
  • Support for flat copper bars 18 x 4, 25 x 5, 32 x 5, 50 x 5 and 63 x 5 mm in sloping position
General characteristics
Isolating supports for busbars for XL³ enclosures
  • Standard distribution

ETIM for 037320 Cabinets and enclosures (EC002620)

Feature nameHeight (EF000040)
Feature value100 mm
Feature nameModel (EF000010)
Feature valueOther
Feature nameMaterial (EF002169)
Feature valueOther
Feature nameDepth (EF000049)
Feature value344 mm
Feature nameColour (EF000007)
Feature valueBlack
Feature nameSuitable for enclosure building width (EF000326)
Feature value1199 mm
Feature nameWidth (EF000008)
Feature value36.5 mm
Feature nameSuitable for enclosure building depth (EF000327)
Feature value400 mm
Feature nameSuitable for enclosure building height (EF009583)
Feature value1999 mm

DATASHEET - PDF

Title
Size
Type
037320 EN_037320.pdf
124 Kbytes
