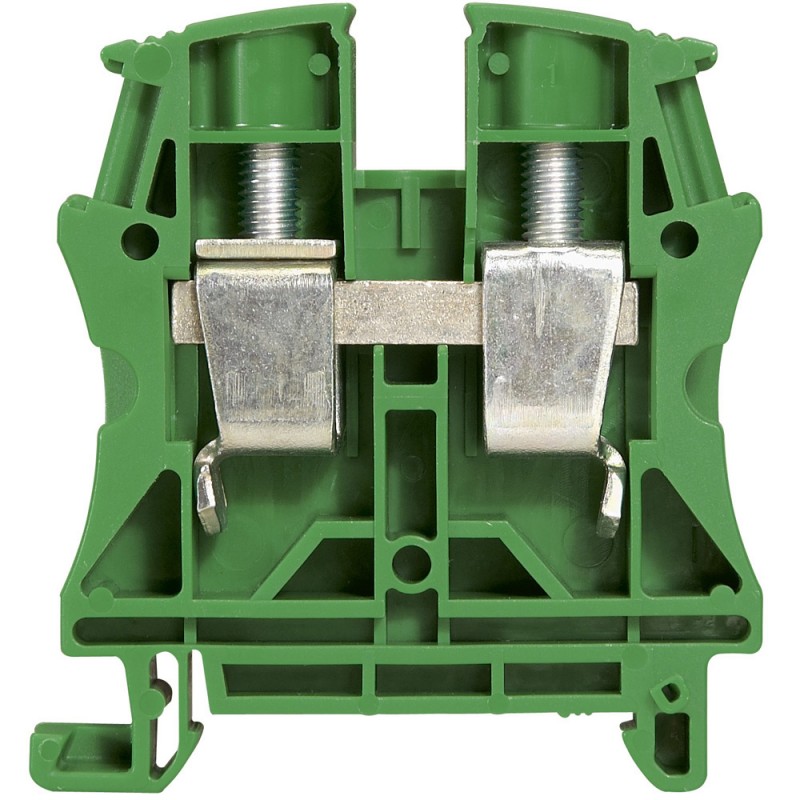

LEGRAND 037199 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

037199 LEGRAND AIS 35MM2 VIKING3 EARTH TERMINAL

Code: 037199

Manufacturer: LEGRAND

Description:

AIS 35MM2 VIKING3 EARTH TERMINAL
BORNA VIKING3 EARTH AIS 35MM2
Terminal block Viking 3 - screw - 1 connect - 1 entry/1 outlet - pitch 15-green
Viking 3 terminal block with screw - 35² - 15 pitch

Categories:

  • Terminal blocks > Feed-through terminal block
  • LEGRAND > VIKING TERMINALS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 121,05 €

Unit Price: 6,0526 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)20
  • Volume (dm3)1.523
  • Weight (g)1 019.00
Product characteristics
Connecting
  • Grey for standard circuit, blue for neutral conductor, orange for circuit not broken by the master isolating device, red for special circuits (safety, protected, etc), green for protection conductor class II equivalent assemblies
1 connection - 1 entry/1 outlet
  • Colour : Green
  • Nominal cross-section : 35 mm²
  • Capacity – Rigid wire : 2.5 to 50 mm²
  • Capacity – Flexible wire with or without ferrules : 4 to 35 mm²
  • Pitch : 15 mm
General characteristics
Viking™ 3 terminal blocks with screw connection - for copper cables
  • Used to make the electrical connection between 2 flexible copper wires with or without ferrules or 2 rigid copper wires
  • 2 areas for automatic insertion bridging combs up to 8 pitch (upper level only for multi-level blocks)
  • For rails depth 15 mm, EN 60715 depth 7.5 mm and 15 mm

ETIM for 037199 Terminal blocks (EC000897)

Feature nameNumber of clamp positions per level (EF002660)
Feature value2
Feature nameConnectable conductor cross section solid-core (EF007337)
Feature value2.5 mm²
Feature nameInternally connected stages (EF002661)
Feature valueNo
Feature nameHeight (EF000040)
Feature value63 mm
Feature nameConnectable conductor cross section fine-strand with cable end sleeve (EF007339)
Feature value4 mm²
Feature nameInflammability class of insulation material according to UL94 (EF002521)
Feature valueV2
Feature nameMaterial insulation body (EF007543)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueDIN rail (top hat rail) 35 mm
Feature nameConnectable conductor cross section fine-strand without cable end sleeve (EF007341)
Feature value2.5 mm²
Feature nameExplosion-tested version 'Ex e' (EF008498)
Feature valueYes
Feature nameConnectable conductor cross section multi-wired (EF007343)
Feature value4 mm²
Feature nameOperating temperature (EF002393)
Feature value-5 °C
Feature nameRated current In (EF008250)
Feature value125 A
Feature nameClosing plate required (EF002525)
Feature valueYes
Feature nameDepth (EF000049)
Feature value57 mm
Feature nameType of electrical connection 1 (EF002526)
Feature valueScrew connection
Feature nameColour (EF000007)
Feature valueGreen
Feature nameRated voltage (EF000228)
Feature value800 V
Feature nameWidth (EF000008)
Feature value15 mm
Feature nameNumber of levels (EF002659)
Feature value1
Feature nameType of electrical connection 2 (EF002527)
Feature valueScrew connection
