LEGRANDVIKING TERMINALS037176 LEGRAND TERMINAL VIKING3 EARTH 35MM2

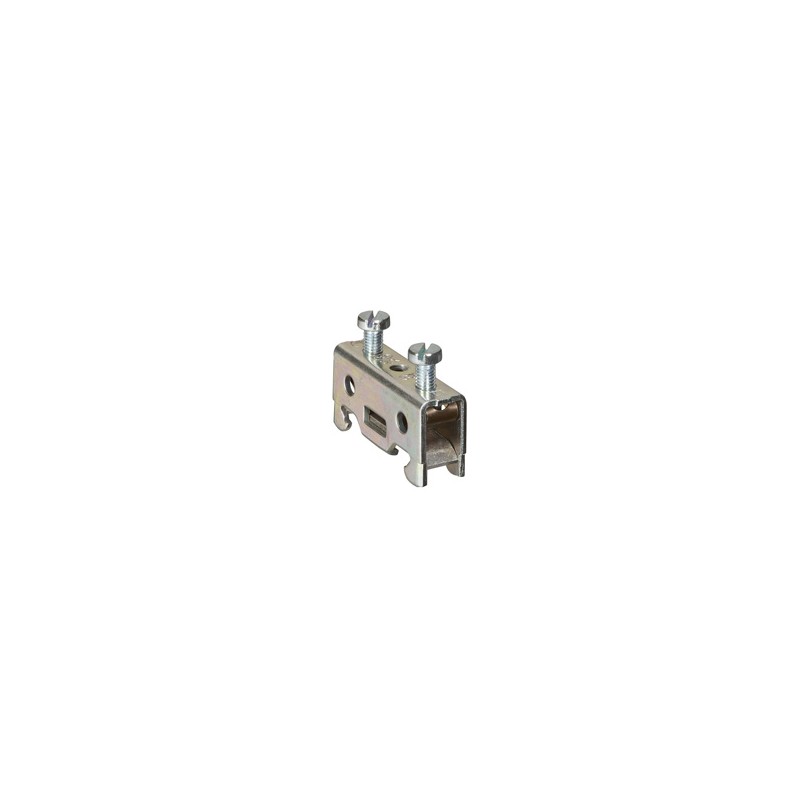

LEGRAND 037176 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

037176 LEGRAND TERMINAL VIKING3 EARTH 35MM2

Code: 037176

Manufacturer: LEGRAND

Description:

TERMINAL VIKING3 EARTH 35MM2
BORNA VIKING3 EARTH 35MM2
Viking 3 Protection Terminal Block 35mm² Screw Connection 1 Entry 1 Exit Metal Base 15mm Bare
Viking 3 terminal block with screw - 35² - 15 pitch

Categories:

  • Terminal blocks > Feed-through terminal block
  • LEGRAND > VIKING TERMINALS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 107,99 €

Unit Price: 10,799 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

All V2 polyamide UL94 960°C to IEC EN 60695-2-11 Compatible with either rigid (0.25mm² to 95mm²) or flexible (0.25mm² to 70mm²) copper cables Facility for 2 bridging combs Compatible with rails depth 15mm and rails EN 60715 depth 7.5mm and 15mm Range comprises only 2 block heights (2.5mm² to 10mm² and 16mm² to 70mm²) ensuring a neat installation Protection 1 connection - bare block - metal base
Connectable conductor cross section fine-strand without cable end sleeve2.5-50 mm²
Connectable conductor cross section fine-strand with cable end sleeve4-35 mm²
Connectable conductor cross section solid-core2.5-50 mm²
Connectable conductor cross section multi-wired4-35 mm²
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-5-40 °C
Width15 mm
Height41.5 mm
Depth50.5 mm
Explosion-tested version 'Ex e'No
Closing plate requiredYes
ColourOther
Internally connected stagesNo
Inflammability class of insulation material according to UL 94V2

ETIM for 037176 Terminal blocks (EC000897)

Feature nameNumber of clamp positions per level (EF002660)
Feature value2
Feature nameConnectable conductor cross section solid-core (EF007337)
Feature value2.5 mm²
Feature nameInternally connected stages (EF002661)
Feature valueNo
Feature nameHeight (EF000040)
Feature value41.5 mm
Feature nameConnectable conductor cross section fine-strand with cable end sleeve (EF007339)
Feature value4 mm²
Feature nameInflammability class of insulation material according to UL94 (EF002521)
Feature valueV2
Feature nameMaterial insulation body (EF007543)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueDIN rail (top hat rail) 35 mm
Feature nameConnectable conductor cross section fine-strand without cable end sleeve (EF007341)
Feature value2.5 mm²
Feature nameExplosion-tested version 'Ex e' (EF008498)
Feature valueNo
Feature nameConnectable conductor cross section multi-wired (EF007343)
Feature value4 mm²
Feature nameOperating temperature (EF002393)
Feature value-5 °C
Feature nameClosing plate required (EF002525)
Feature valueYes
Feature nameDepth (EF000049)
Feature value50.5 mm
Feature nameType of electrical connection 1 (EF002526)
Feature valueScrew connection
Feature nameColour (EF000007)
Feature valueOther
Feature nameWidth (EF000008)
Feature value15 mm
Feature nameNumber of levels (EF002659)
Feature value1
Feature nameType of electrical connection 2 (EF002527)
Feature valueScrew connection

DATASHEET - PDF

Title
Size
Type
037176 EN_037170.pdf
1 Mbytes
